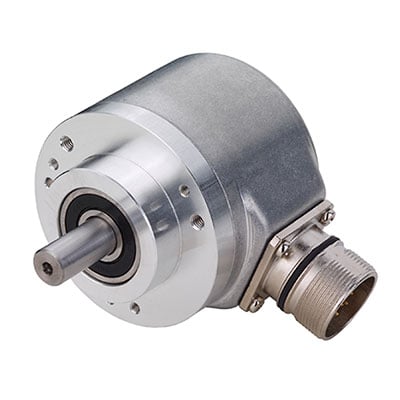

Dynapar AI25 Series Hengstler Parallel Absolute Encoder
The AI25 is a rugged EtherNet/IP absolute encoder with up to 34 Bits combined resolution, IP67 protection, shafted or hub-shafted options and extreme shock & vibration rating. see pricing and download 3D models here!
-
General
- Feedback Type: Absolute
- Interface: Parallel Binary
- Mounting Configuration: Clamping flange
- Technology Sensing Type: Optical
- Weight (Pounds): 3.2
-
Mechanical
- Connection Location: Cable, axial
- Housing Diameter (mm): 58
- Housing Material: Aluminium
- Moment Of Inertia: 3,8 x 10^-6 kgm²
- Revolution Count: 10000
- Revolution Short Term: 12000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 10
- Shaft Loading Axial (mm): 40
- Shaft Loading Radial (mm): 80
- Shaft Type: Solid shaft
- Starting Torque (Ncm): 2
-
Electrical
- Absolute Accuracy Type: ±36"
- Input Voltage: DC 10 - 30 V
- Output Code: Binary
- Repeatability Type: ±10"
- Resolution Multi Turn: No Multiturn
- Resolution Single Turn (Bits): 16
-
Environmental
- Approvals / Certifications: [CE, c UL us (listed)]
- Housing Protection Level: IP67
- Maximum Operating Temperature (°C): 100
- Maximum Storage Temperature (°C): 85
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Shock Resistance: 1000 m/s² (6 ms)
- Vibration Resistance: 100 m/s² (10 - 2000 Hz)
The AI25 is a rugged EtherNet/IP absolute encoder with up to 34 Bits combined resolution, IP67 protection, shafted or hub-shafted options and extreme shock & vibration rating. see pricing and download 3D models here!
-
General
- Feedback Type: Absolute
- Interface: Parallel Binary
- Mounting Configuration: Clamping flange
- Technology Sensing Type: Optical
- Weight (Pounds): 3.2
-
Mechanical
- Connection Location: Cable, axial
- Housing Diameter (mm): 58
- Housing Material: Aluminium
- Moment Of Inertia: 3,8 x 10^-6 kgm²
- Revolution Count: 10000
- Revolution Short Term: 12000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 10
- Shaft Loading Axial (mm): 40
- Shaft Loading Radial (mm): 80
- Shaft Type: Solid shaft
- Starting Torque (Ncm): 2
-
Electrical
- Absolute Accuracy Type: ±36"
- Input Voltage: DC 10 - 30 V
- Output Code: Binary
- Repeatability Type: ±10"
- Resolution Multi Turn: No Multiturn
- Resolution Single Turn (Bits): 16
-
Environmental
- Approvals / Certifications: [CE, c UL us (listed)]
- Housing Protection Level: IP67
- Maximum Operating Temperature (°C): 100
- Maximum Storage Temperature (°C): 85
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Shock Resistance: 1000 m/s² (6 ms)
- Vibration Resistance: 100 m/s² (10 - 2000 Hz)
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Input Voltage | 10-30 VDC |
