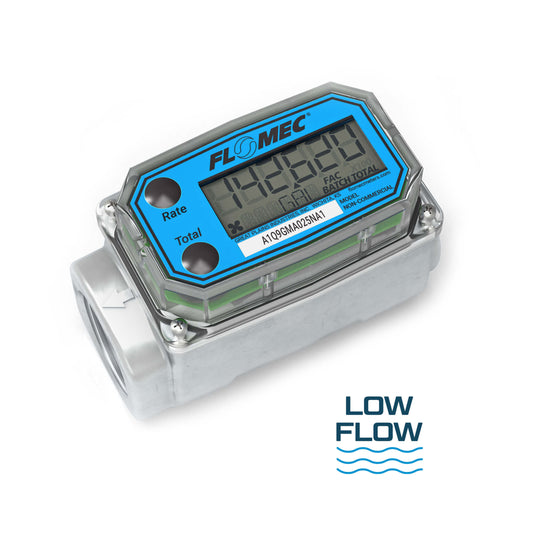

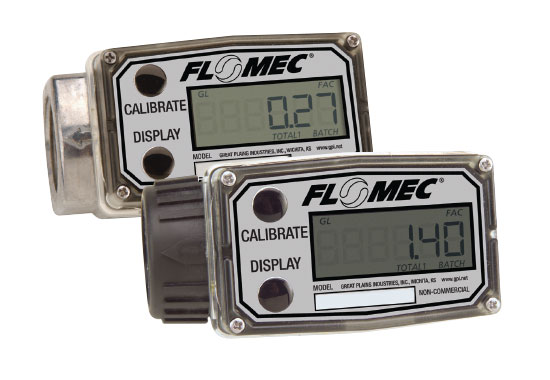

Flomec A1 Series, Paddlewheel Flow Meter, Low Flow, Battery Powered Display, Aluminum Body for Thin Petroleum-Based Fluids - 1" NPTF, Gallon UoM
FLOMEC®A1 Series Paddlewheel Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. NOTE: If the meter includes any module (4-20mA or Pulse Out) that introduces external power, then all intrinsic safety approvals are voided.
For low flow applications: 0.3 - 3 GPM (1 to 11 L/min). Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy.
Features & Benefits
- Unique package combines Paddlewheel and LCD into a self-contained, compact, economical meter
- Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
- Output capabilities available to communicate with process control equipment
- Lightweight, compact design allows for easy installation
- 12 selectable engineering units (gallons or liters are standard defaults)
- Factory calibration
- AAA Alkaline battery life: 2 years
FLOMEC®A1 Series Paddlewheel Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. NOTE: If the meter includes any module (4-20mA or Pulse Out) that introduces external power, then all intrinsic safety approvals are voided.
For low flow applications: 0.3 - 3 GPM (1 to 11 L/min). Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy.
Features & Benefits
- Unique package combines Paddlewheel and LCD into a self-contained, compact, economical meter
- Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
- Output capabilities available to communicate with process control equipment
- Lightweight, compact design allows for easy installation
- 12 selectable engineering units (gallons or liters are standard defaults)
- Factory calibration
- AAA Alkaline battery life: 2 years
Specifications
| Flowmeter: Technology | Electromagnetic (Magnetic) |
