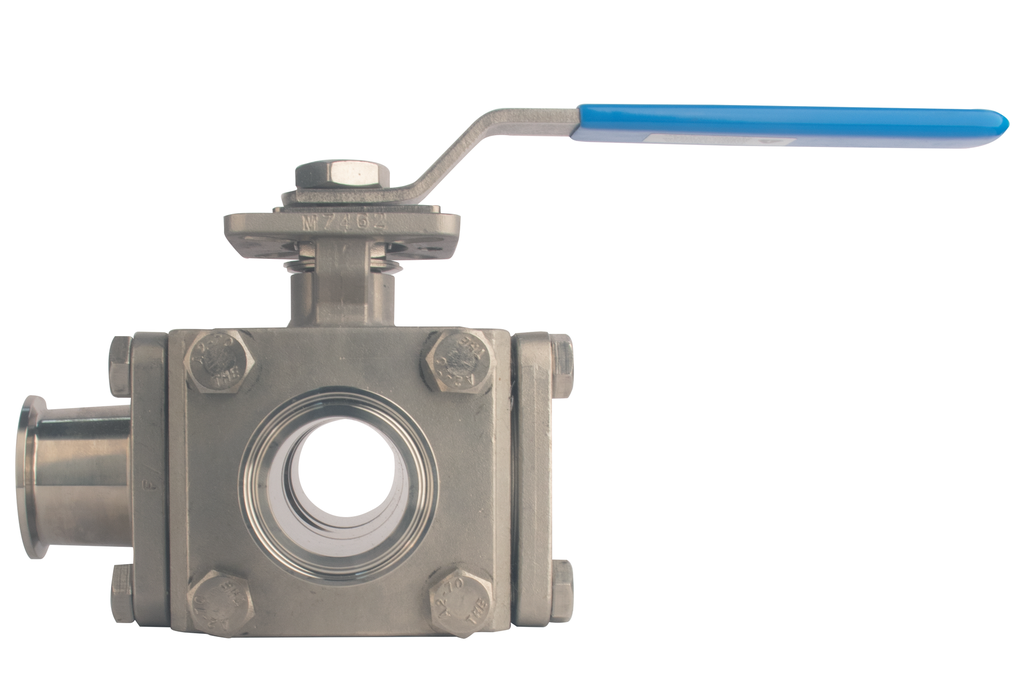

Representative photo. Please check item description for details.
97L-STC / 97T-STC North America Series 3-Way Cavity-Filled, Direct Mount, Stainless Steel Ball Valve with Sanitary Tri-Clamp Ends
97L-STC / 97T-STC Bonomi North America Series direct mount, stainless steel ANSI class 150 wafer-style flanged full port ball valve.
Features
- Cavity-filled, stainless steel with Sanitary Tri-Clamp ends.
- Pressure rating 1/2” to 1”-1000 psi, 1-1/2” to 2”-800 psi, 2-1/2” to 3”-600psi, 4”-300 psi.
- Temperature range -20°F to 366°F.
- Live loaded stem packing.
- RPTFE seats & seals.
- All stainless steel external components.
- ISO 5211 mounting pad with square stem.
- Live loaded stem packing design.
97L-STC / 97T-STC Bonomi North America Series direct mount, stainless steel ANSI class 150 wafer-style flanged full port ball valve.
Features
- Cavity-filled, stainless steel with Sanitary Tri-Clamp ends.
- Pressure rating 1/2” to 1”-1000 psi, 1-1/2” to 2”-800 psi, 2-1/2” to 3”-600psi, 4”-300 psi.
- Temperature range -20°F to 366°F.
- Live loaded stem packing.
- RPTFE seats & seals.
- All stainless steel external components.
- ISO 5211 mounting pad with square stem.
- Live loaded stem packing design.
Specifications
| Model | [97L-STC] L-Ported, [97T-STC] T-Ported |
| Valve Size | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4" |
