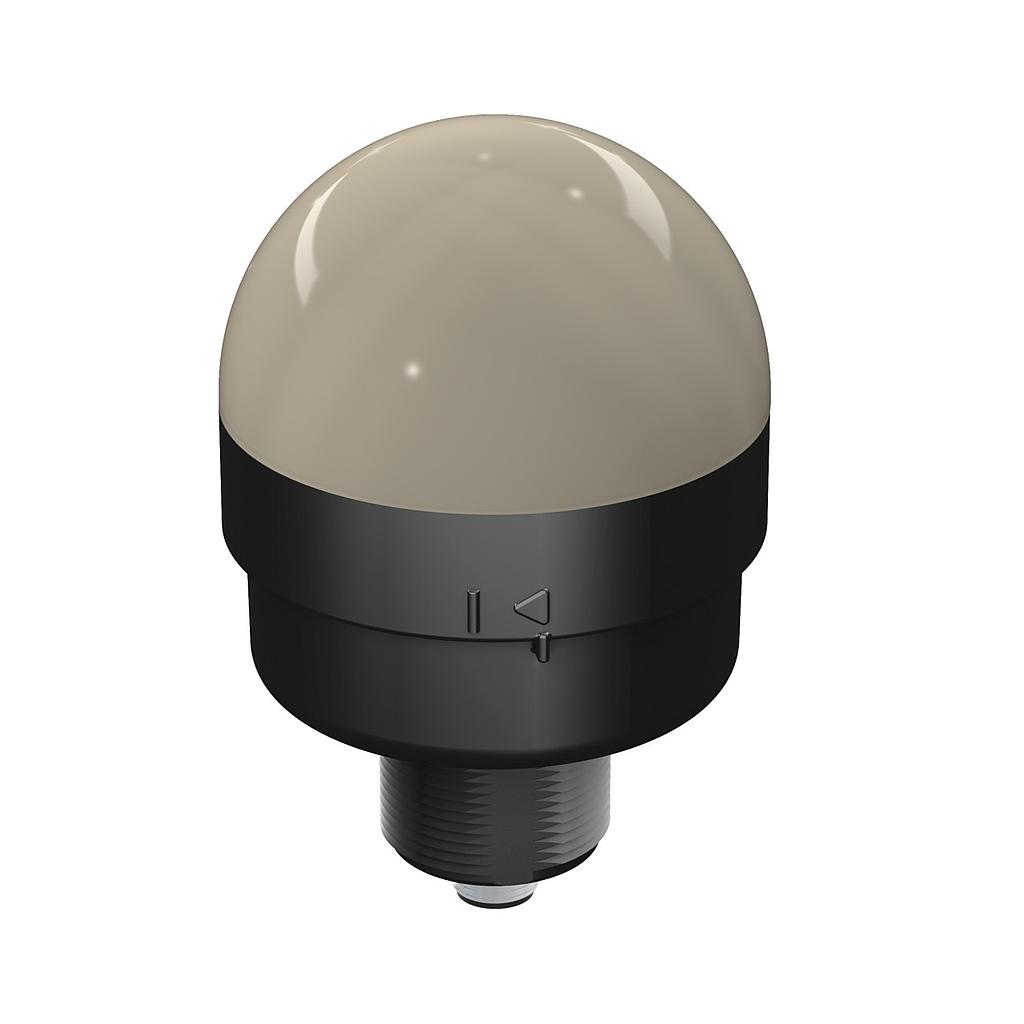

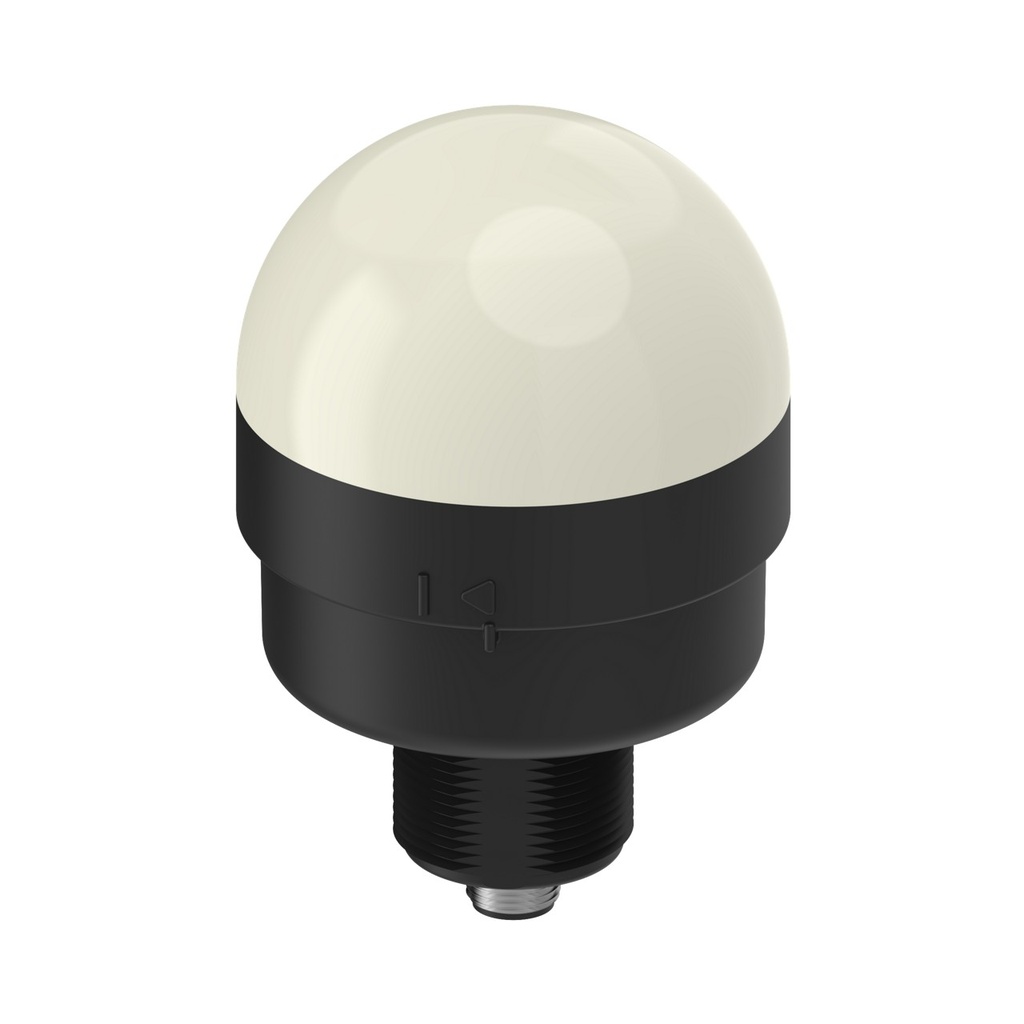

K70 Series EZ-LIGHT (K70LYPQ)

https://www.branom.com/web/image/product.template/85418/image_1920?unique=c26756c
(0 review)

Features:

  • K70 Series EZ-LIGHT
  • 1-Color Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP65
  • Input: PNP
  • Colors: Yellow
  • Euro 5-pin Quick-Disconnect
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 200 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Base Mount - Dome Window
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 22
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 70 mm
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 75 ms
  • Feature: Chemical Resistant: No
  • Connection Type: Integral QD

$ 139.00 139.0 USD $ 139.00

$ 139.00

Not Available For Sale

    This combination does not exist.

    Contact Us
