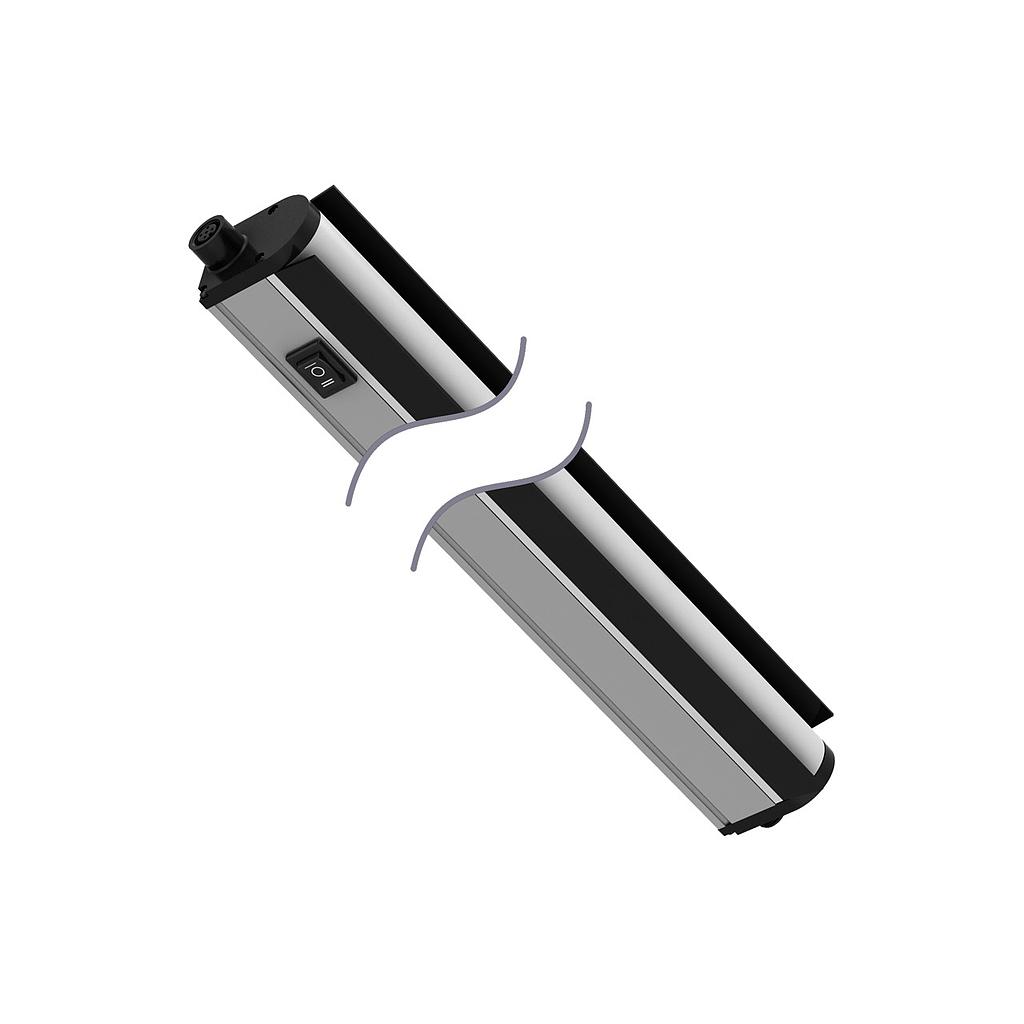

WLB32 Work Light Bar (WLB32C285EPBQ)

https://www.branom.com/web/image/product.template/85385/image_1920?unique=c26756c
(0 review)

Features:

  • WLB32 Work Light Bar
  • Switched Hi/Low/Off
  • Length: 285 mm
  • Voltage: 12-30 V dc
  • Environmental Rating: IP40
  • Color: White
  • Cascadable
  • Eye Shield
  • Euro 4-pin Integral Connector
  • Diffuse window
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 800 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Source: VDC
  • Ingress Protection: IP50
  • Housing Style: Linear Strip
  • Housing Material_: Aluminum
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 320.0 x 38.3 x 48.0 mm
  • Feature: Wireless: No
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 750
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Color Option 1: Daylight White
  • Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 32 mm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: High-Low-Off
  • Feature: Cascade: Yes
  • Illuminated Length (LxWxH): 285.0 mm
  • Illumination Switch Function: I=Low; O=OFF; II=High
  • Feature: Illumination: Yes
  • Connection Type: Integral QD
  • Feature: Eye Shield: Yes
