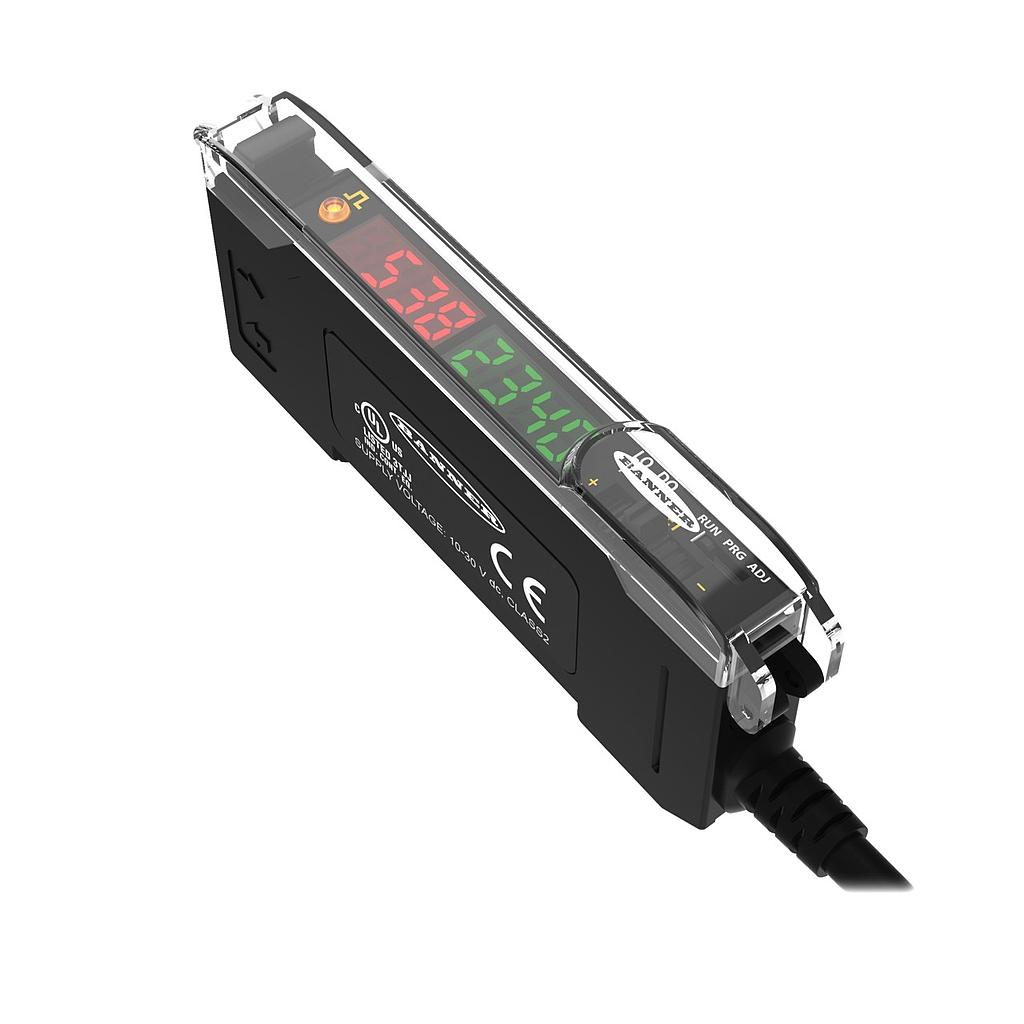

DF-G2 Red Beam High Speed Dual Display Fiber Amplifier (DF-G2-KD-Q5)

https://www.branom.com/web/image/product.template/85300/image_1920?unique=c26756c
(0 review)

Features:

  • DF-G2 Red Beam High Speed Dual Display Fiber Amplifier
  • Range: Depends on fiber
  • Input 10-30 V dc
  • Output 1: Push/Pull with IO-Link
  • Output 2: PNP only
  • Euro M12 4-pin 150 mm PVC Pigtail
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 100 to 180
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 60 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete & Serial
  • Min Response Time: .05 ms
  • Output Type (Specific): IO-Link and Dual Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Red
  • Application: Registration Mark: Yes
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1
  • Cord/Cable Length: 0.15 m
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: Dual Digital Displays
