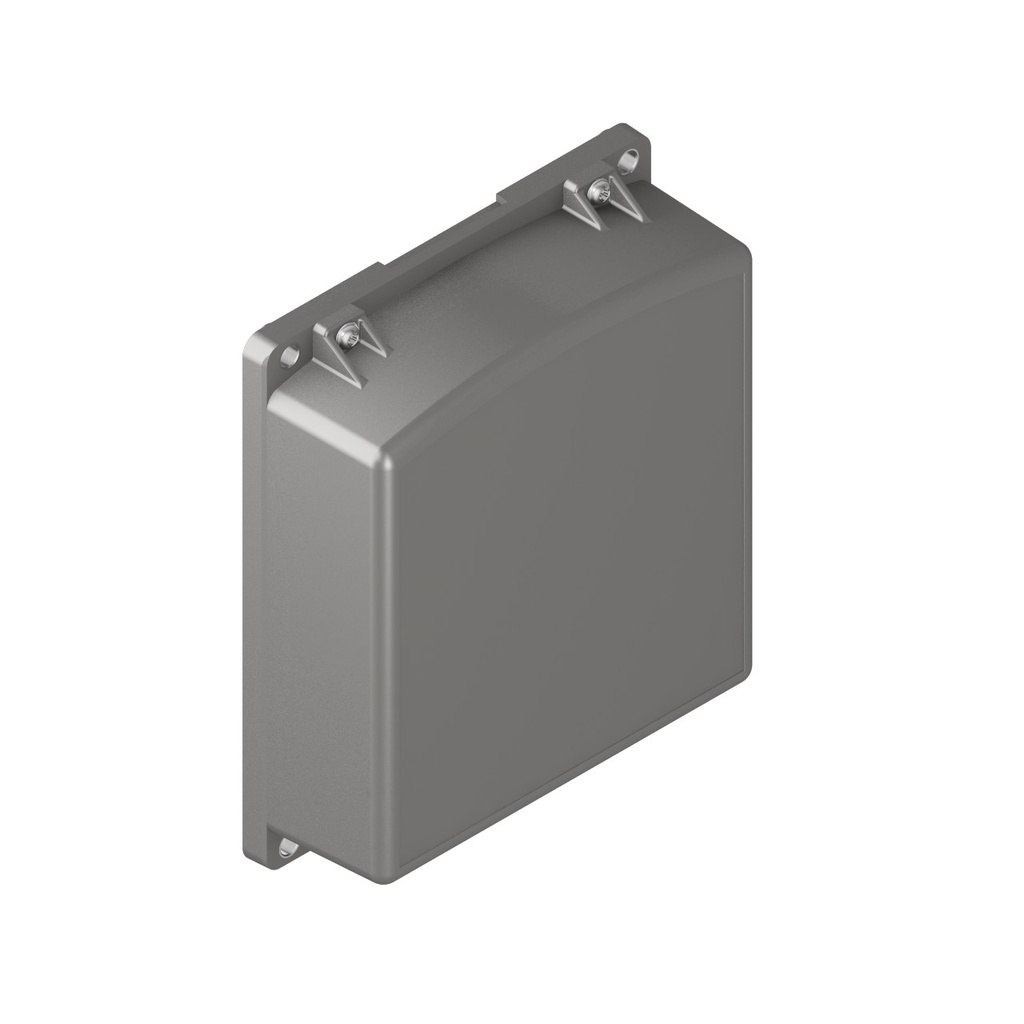

Representative photo. Please check item description for details.

R-GAGE Series (Q240RA-US-ULQ)

https://www.branom.com/web/image/product.template/85276/image_1920?unique=c26756c
(0 review)

Features:

  • R-GAGE Series
  • 173 mm X 158 mm Rectangular Housing
  • Range: 3.5 to 100 Meters
  • Input: 10 to 30 V dc
  • Integral Eurofast QD
  • One Analog output 0 -10V dc
  • US Frequency
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power/Current Consumption (exclusive of load): < 85 mA
  • Power Supply: 12-30 VDC
  • Temperature Effect (mm/°C): 50 mm/°C
  • Delay at Power-Up: 2000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 100000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Polycarbonate
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Analog Output: 0 to 10 VDC
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Dip Switch
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog & Discrete
  • Min Response Time: 15 ms
  • Vibration: 10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
  • Mechanical Shock: 30G 11 ms duration, half sine wave per IEC 60068-2-27
  • Analog Resolution/Discrete Repeatability: 500
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 3500 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Max Measurement Range: 50 m
  • Output Protection: Protected against short circuit
  • SSI: No
  • Profibus: No
  • Analog Voltage Output Rating: 2.5 kΩ min. load impedance
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Operating Frequency: 24 GHz
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Radar Beam Pattern (H x V °): 11 x 13
  • Indicator Type: LED

$ 3,567.00 3567.0 USD $ 3,567.00
