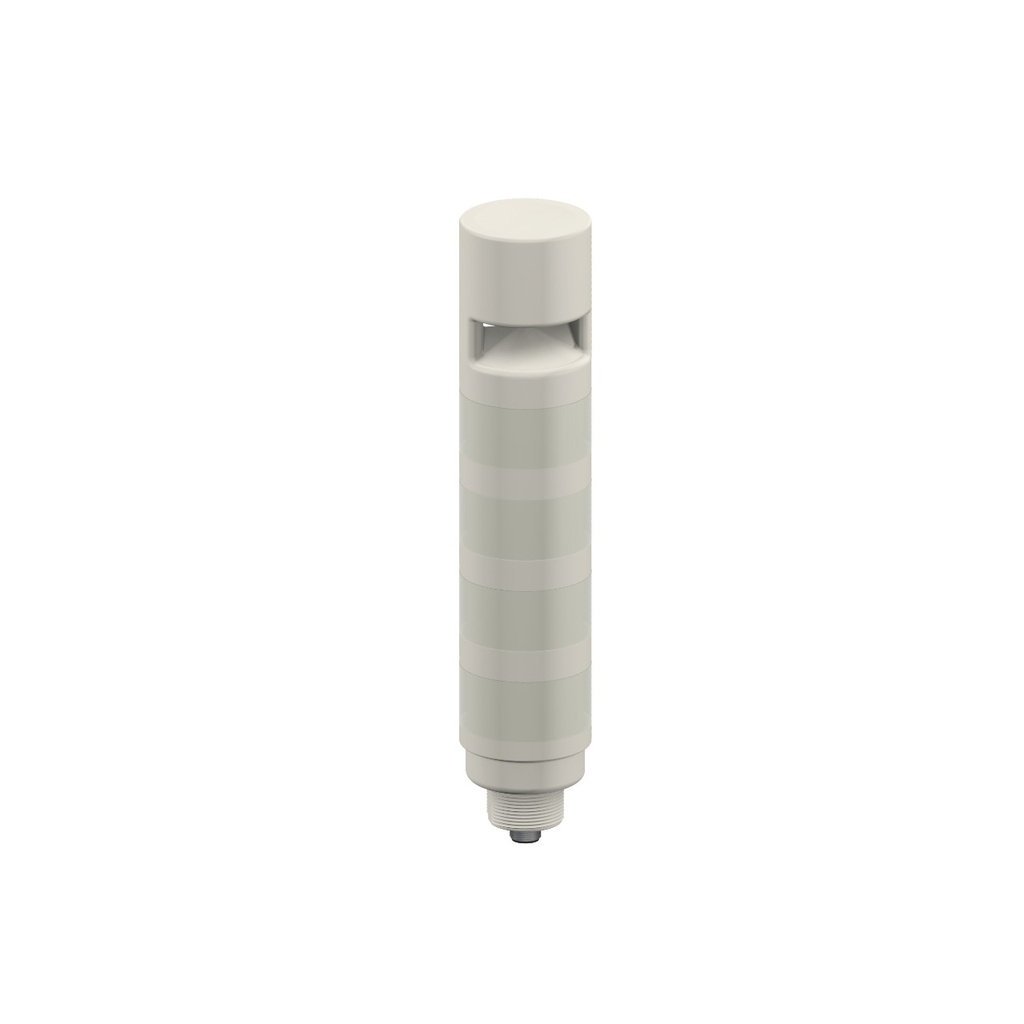

Tower Light (TL50GBYRAOSICQ)
Features:
- Tower Light
- Gray Housing: 4-Color Sealed
- Omni-directional Continuous Audible Indicator w/intensity adjust
- Voltage: 18-30 V dc or 24 V ac
- Environmental Rating: IP67
- Input: Bimodal
- Colors: Green Blue Yellow Red
- Euro 8-pin Integral Connector
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 45 mA
- Max Current - Audible Alarm (mA): 45 mA
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Color Option 3: Yellow
- Max Audible Intensity: 95 dB @ 1 m
- Supply Voltage: 18-30 VDC/24 VAC
- Color Option 2: Blue
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 23
- Animation Option 3: Solid On
- Min Audible Intensity @ 1m: 83 dB
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Green
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 528 nm
- Housing Color: Gray
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Audible Operating Frequency (kHz): 2.1
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 590 nm
- Lumens Color 2: 4
- Lumens Color 3: 5
- Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
- Number of Input Pins/Conductors: 8
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Audible Alarm Type: Adjustable Continuous
- Storage Temp: -40 to 70 °C
- Color Option 4: Red
- Color 4 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 4: 7.5
- Number of Tower Light Segments: 5
- Animation Option 4: Solid On
- Connection Type: Integral QD
- NEMA / UL: NEMA/UL 13
