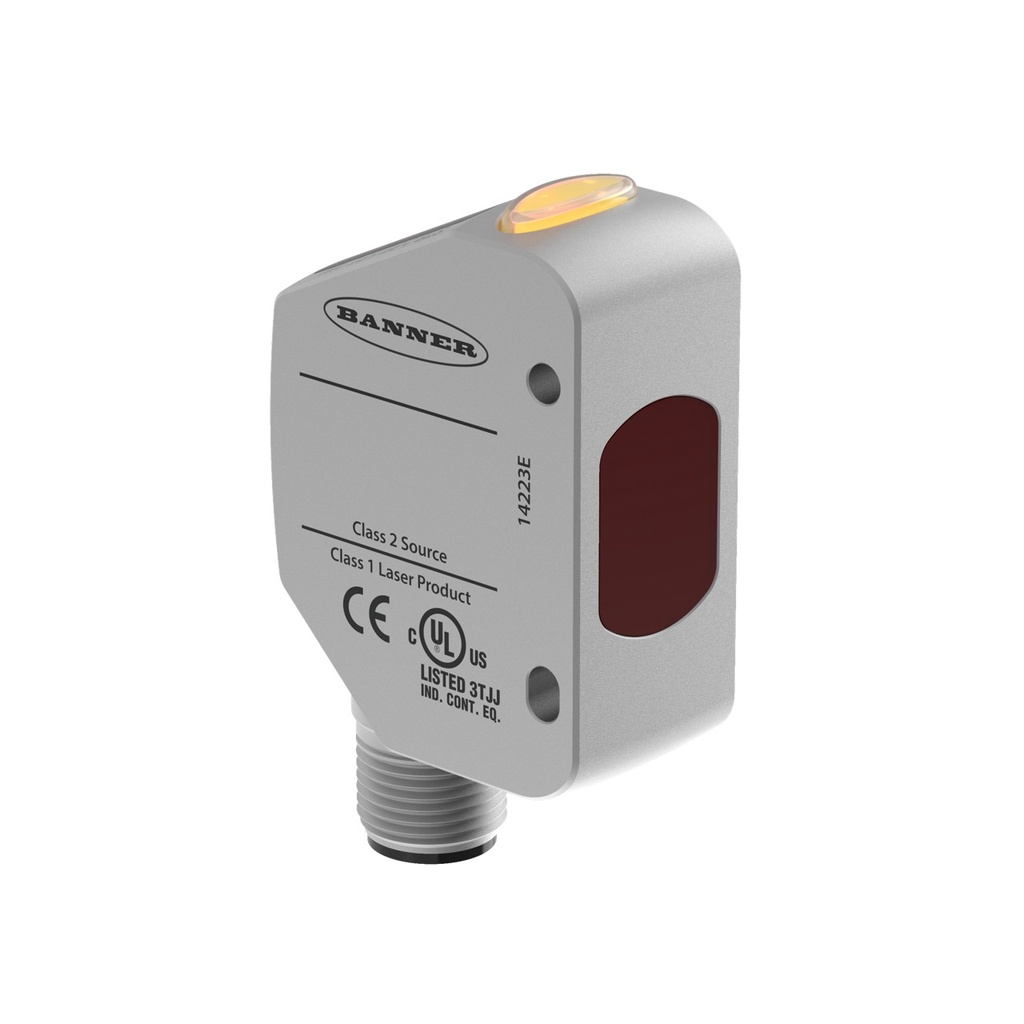

Representative photo. Please check item description for details.

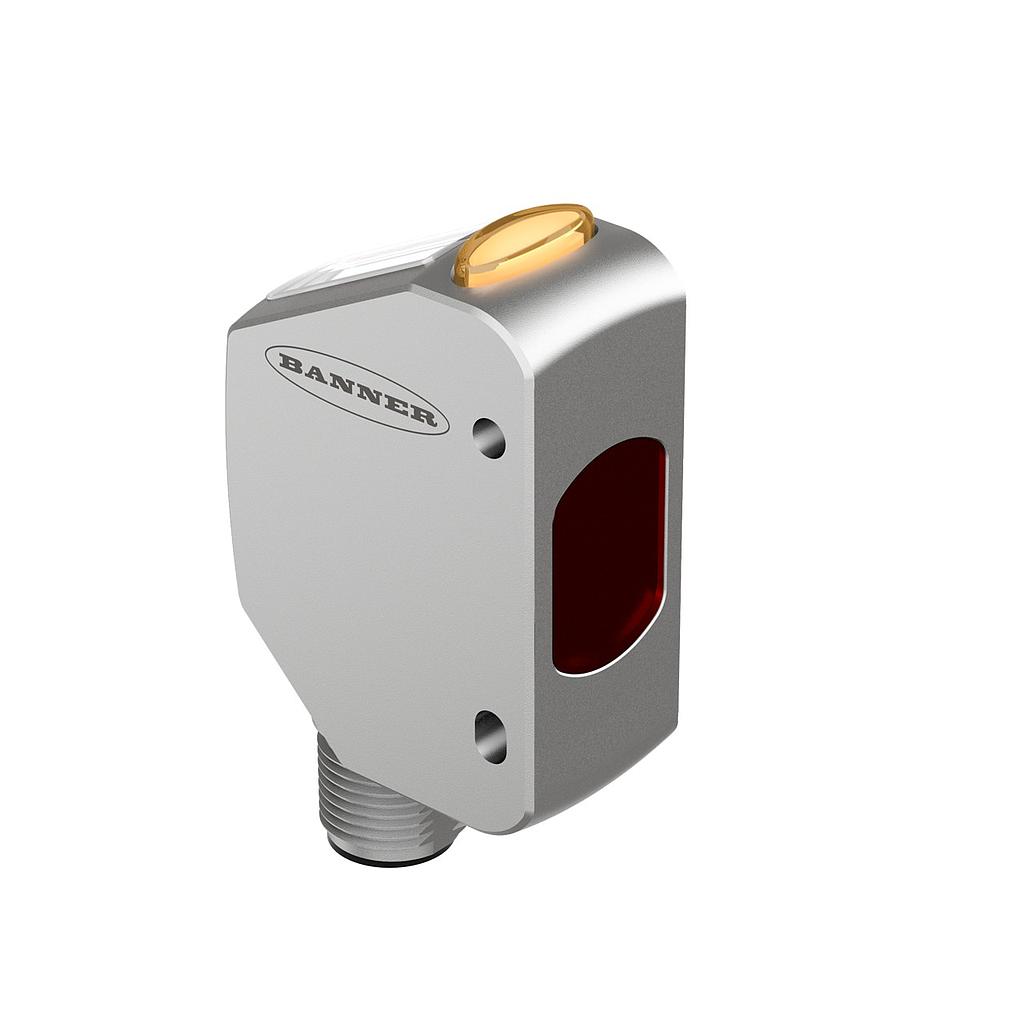

Q4X Series: Laser Adjustable Field (Q4XFPLAF110-Q8)

https://www.branom.com/web/image/product.template/85175/image_1920?unique=c26756c
(0 review)

Features:

  • Q4X Series: Laser Adjustable Field
  • Range: 110 mm
  • Input 10-30 V dc
  • Outputs: 1 PNP
  • Connection: Euro M12 4-pin Integral Connector
  • Flush Mount Housing
  • Max Off-State Leakage Current (µA): 5 µA @ 30 VDC
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power/Current Consumption (exclusive of load): < 675 mW
  • Power Supply: 10-30 VDC
  • Temperature Effect (mm/°C): #ERROR!
  • Delay at Power-Up: 750 ms
  • Ingress Protection: IP67/68/69
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 110 mm
  • Sensing Mode (Detailed): Background/Foreground Suppression
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: SS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 1
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 55 °C
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -25 to 75 °C
  • Feature: Ecolab Certified: Yes
  • Number of Pins: 4
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 1.5 ms
  • Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Output Saturation Voltage PNP Outputs: <1.5 V @ 100 mA
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 35 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 0.2 mm
  • Discrete (Switched) Outputs: 1 PNP
  • Max Measurement Range: 100-500 mm
  • Output Protection: Protected against continuous overload and short circuit
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Spot Size (@ Reference Distance): 1.8 mm x 0.7 mm @ 100 mm
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: Laser Control: Yes
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Max Ambient Light: 5000 lux
  • Warm-Up Time: 10 min
  • Discrete Output Hysteresis: Auto Adjust
  • Alarm Output (mA): 100

$ 455.00 455.0 USD $ 455.00

$ 455.00

Not Available For Sale

    This combination does not exist.
