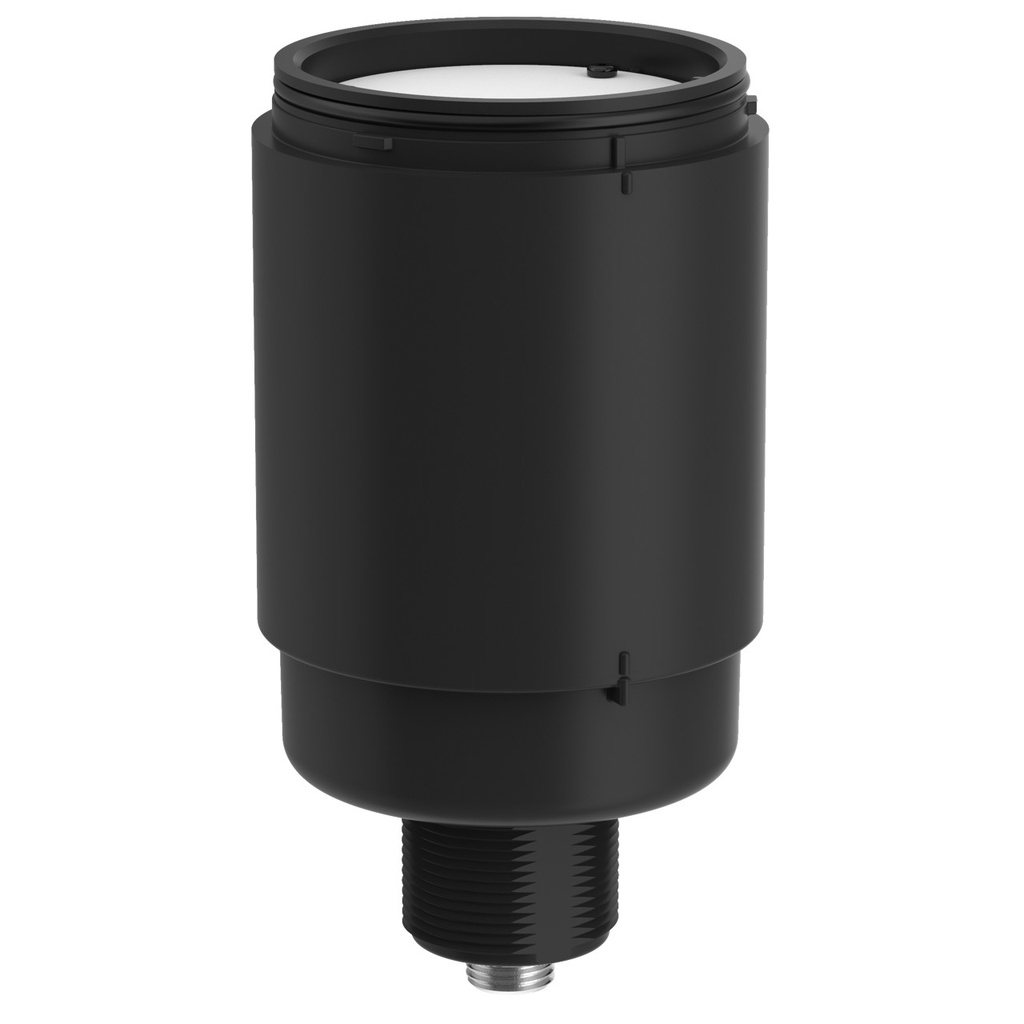

TL70 Base Module (B-TL70Z-Q5)

https://www.branom.com/web/image/product.template/85152/image_1920?unique=c26756c
(0 review)

Features:

  • TL70 Base Module
  • Supports 1-4 Modules
  • Voltage: 100-240 V ac
  • Environmental Rating: IP65
  • Micro 5-pin Quick-Disconnect
  • Black Housing
    • Power: AC
  • Feature: Display: No
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VAC
  • Ingress Protection: IP65
  • Housing Style: Segment - Base
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 115.8 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 100-240 VAC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Product Size (mm): 70 mm
  • Number of Input Pins/Conductors: 5
  • Input Type: AC
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 240 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Feature: Non-Illuminated: Yes
  • Connection Type: Integral QD
  • Cord/Cable Length: 2 m

$ 170.00 170.0 USD $ 170.00

$ 170.00

Not Available For Sale
