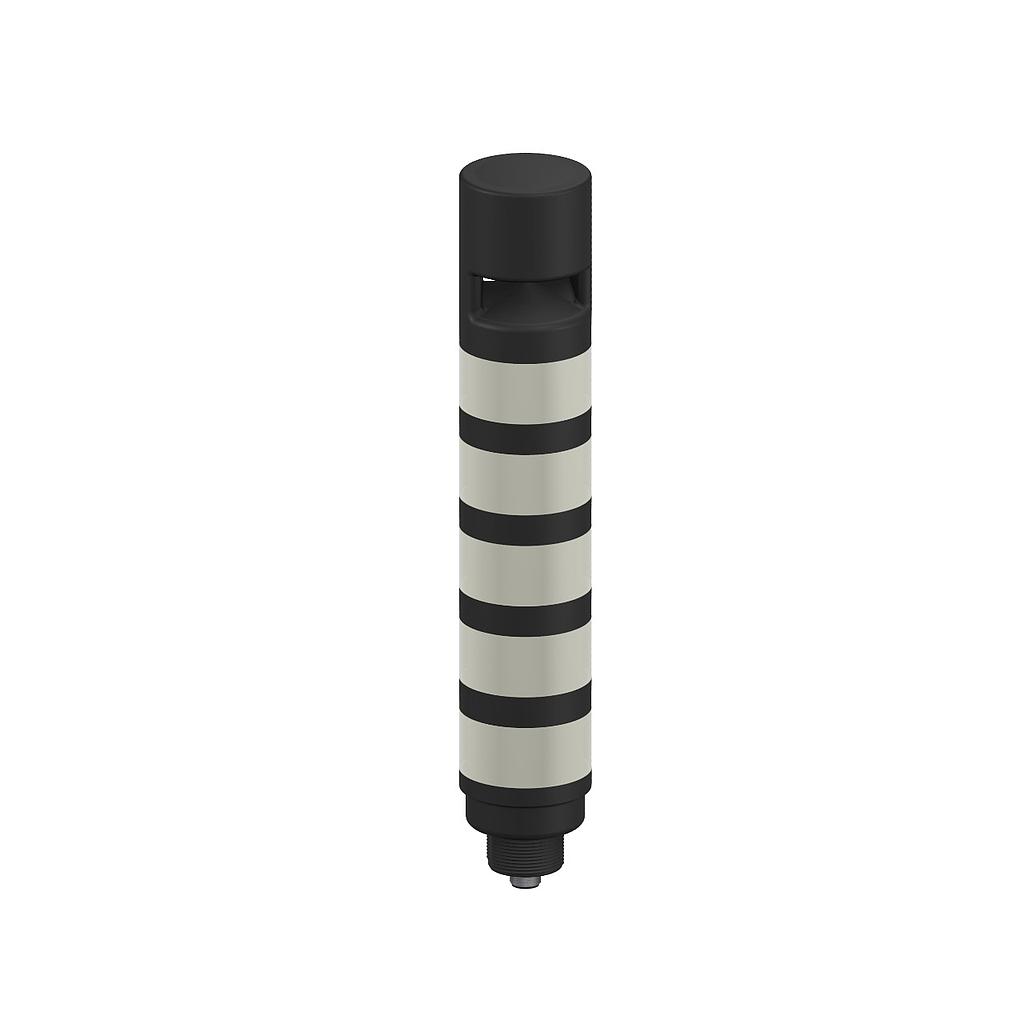

Representative photo. Please check item description for details.

Tower Light (TL50WBGYRAOS)

https://www.branom.com/web/image/product.template/84838/image_1920?unique=c26756c
(0 review)

Features:

  • Tower Light
  • 5-Color Sealed
  • Omni-directional Continuous Audible Indicator
  • Voltage: 18-30 V dc or 24 V ac
  • Environmental Rating: IP67
  • Input: Bimodal
  • Colors: White Blue Green Yellow Red
  • 2 m (6.5 ft) Cable
    • Power: AC or DC
  • Feature: Display: No
  • Max Current Color: 135 mA
  • Max Current - Audible Alarm (mA): 45 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Color Option 3: Green
  • Max Audible Intensity: 99 dB @ 1 m
  • Supply Voltage: 12-30 VDC/24 VAC
  • Color Option 2: Blue
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 21
  • Animation Option 3: Solid On
  • Min Audible Intensity @ 1m: 99 dB
  • Color Technology: Standard LED
  • Feature: Audible: Yes
  • Color Option 1: Cool White
  • Animation Option 2: Solid On
  • Color 1 - Wavelength/Color Temp/Coordinates: 6000K
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Solid On
  • Audible Operating Frequency (kHz): 2.1
  • Number of Colors / Segments: 5
  • Color 3 - Wavelength/Color Temp/Coordinates: 528 nm
  • Lumens Color 2: 4.5
  • Lumens Color 3: 23
  • Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
  • Number of Input Pins/Conductors: 8
  • Input Type: Bimodal (PNP/NPN)
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 10 ms
  • Audible Alarm Type: Continuous
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
  • Color Option 5: Red
  • Color 5 - Wavelength/Color Temp/Coordinates: 625 nm
  • Lumens Color 5: 7.5
  • Lumens Color 4: 5
  • Number of Tower Light Segments: 6
  • Animation Option 5: Solid On
  • Animation Option 4: Solid On
  • Connection Type: Cable
  • NEMA / UL: NEMA/UL 13
  • Cord/Cable Length: 2 m

$ 409.00 409.0 USD $ 409.00

$ 409.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
