World-Beam: Polarized Retro (QS18AP6LPQ-96378)

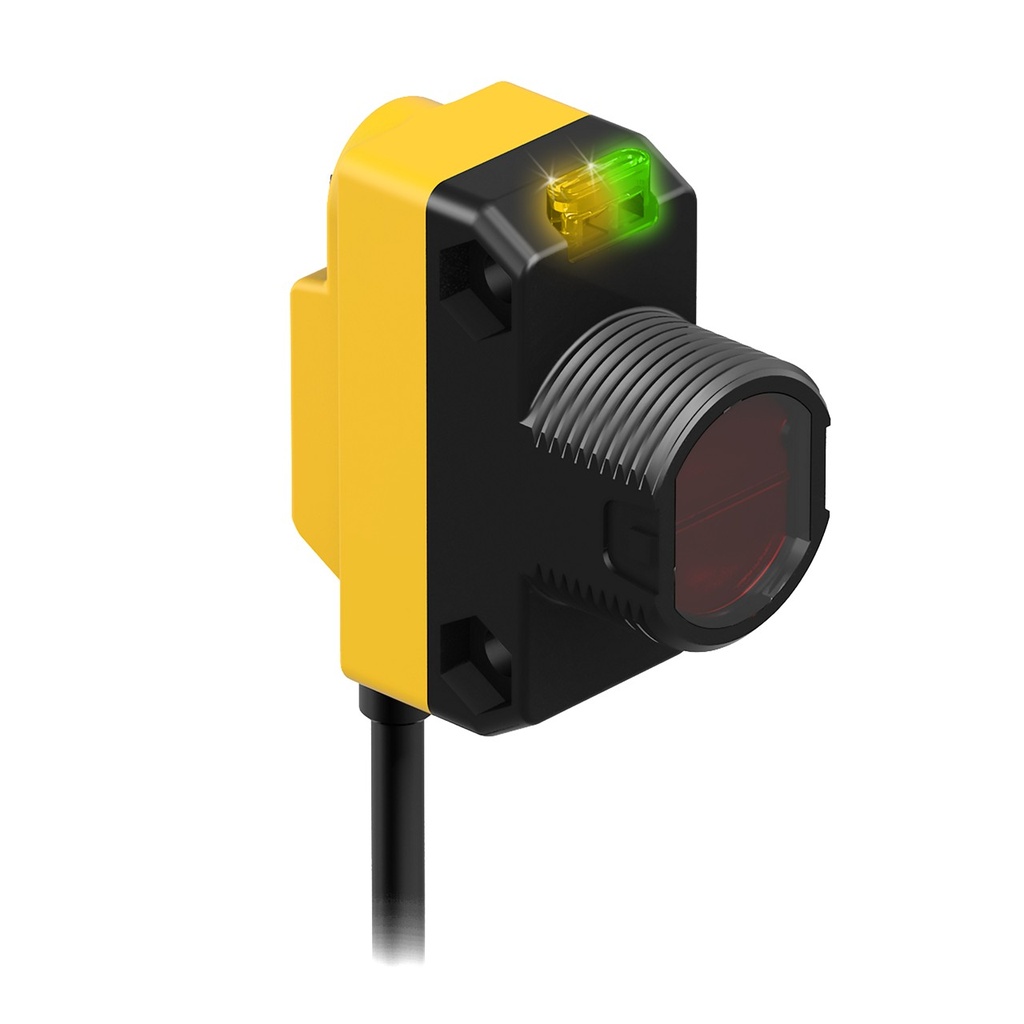

Representative photo. Please check item description for details.

World-Beam: Polarized Retro (QS18AP6LPQ-96378)

https://www.branom.com/web/image/product.template/204268/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM: Polarized Retro; Range: 3.5 m; Input: 10-30V dc; Output: PNP L.O.; 2m Pigtail PICO-Style Quick-Disconnect Connector Assembled to Bracket 123459, Reflector Assembly 148291 Included
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 150
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 630
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3500 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.6 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 240.00 240.0 USD $ 240.00

$ 240.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
