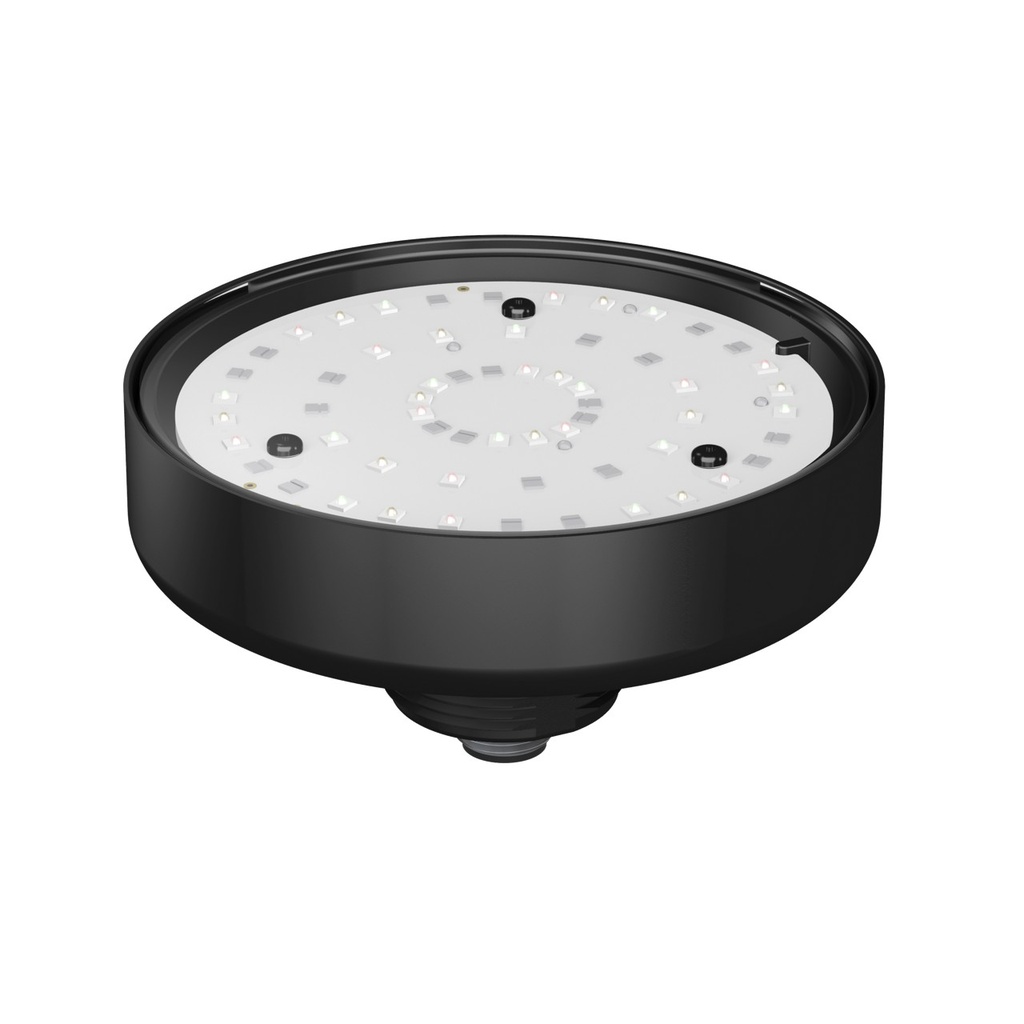

K90TF Series EZ-LIGHT (K90TFDLGYRPQ)

https://www.branom.com/web/image/product.template/83346/image_1920?unique=c26756c
(0 review)

Features:

  • K90TF Series EZ-LIGHT
  • 3-Color Daylight Visible Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP67
  • Input: PNP
  • Colors: Green Yellow Red
  • Euro 5-pin Quick-Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 475 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Flat Window
  • Housing Material_: Polycarbonate
  • Feature: Indication: Yes
  • Color Option 3: Red
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Yellow
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 175
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On - Alternating
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
  • Lumens Color 2: 43
  • Lumens Color 3: 83
  • Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 150 ms
  • Wire Selectable Function: Multi-Function
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection Type: Integral QD
  • NEMA / UL: UL 4X/13

$ 231.00 231.0 USD $ 231.00

$ 231.00

Not Available For Sale

    This combination does not exist.
