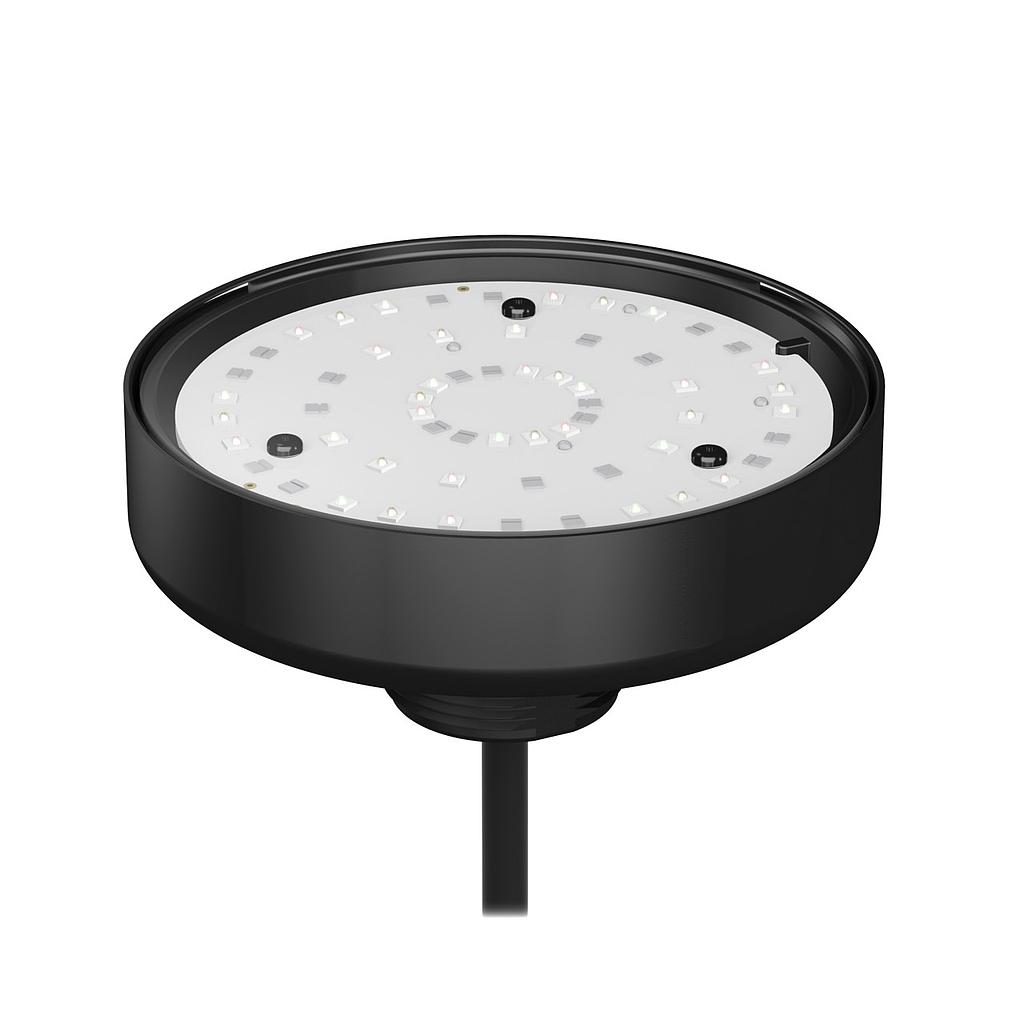

Representative photo. Please check item description for details.

K90F Series EZ-LIGHT (K90FDLGRP)

https://www.branom.com/web/image/product.template/83310/image_1920?unique=c26756c
(0 review)

Features:

  • K90F Series EZ-LIGHT
  • 2-Color Daylight Visible Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP67
  • Input: PNP
  • Colors: Green Red
  • 2 m (6.5 ft) Cable
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 475 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Flat Window
  • Housing Material_: Polycarbonate
  • Feature: Indication: Yes
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 175
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Number of Colors / Segments: 2
  • Lumens Color 2: 83
  • Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 75 ms
  • Wire Selectable Function: Flashing
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection Type: Cable
  • NEMA / UL: UL 4X/13
  • Cord/Cable Length: 2 m

$ 185.00 185.0 USD $ 185.00

$ 185.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
