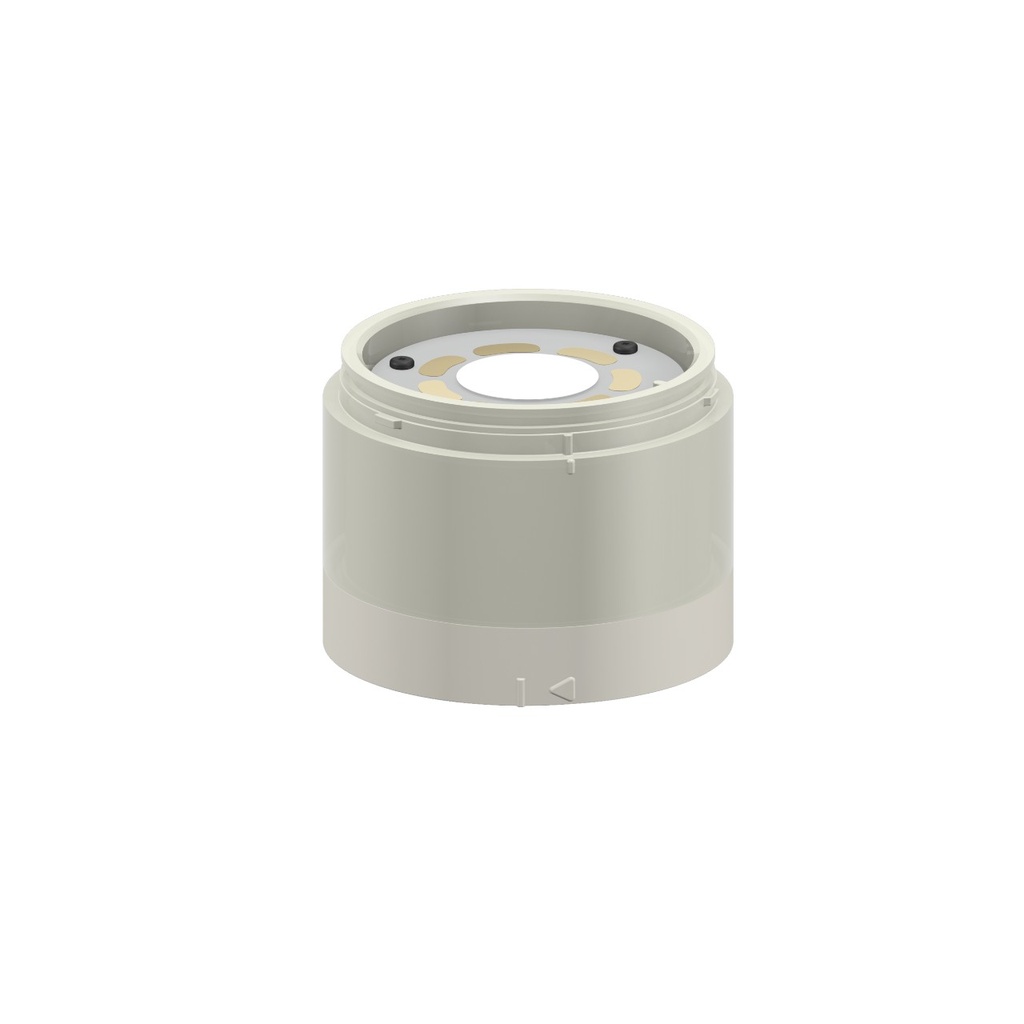

Representative photo. Please check item description for details.

TL70 Light Module (SG-TL70-GYRC)

Features:

Feature: Display: No
Feature: Display Lighting: No
Max Current Color: 430 mA
Min Operating Temperature: -40 °C
Max Operating Temperature: 50 °C
Power Source: VDC or VAC
Ingress Protection: IP65
Housing Style: Segment - Light
Max Relative Humidity: 95% @ 50 °C (NC)
Housing Material_: Polycarbonate
Feature: Hazardous Area: No
Feature: IO Link: No
Feature: Modbus RTU: No
Physical Dimensions: 70.0 x 50.0 mm
Feature: Wireless: No
Feature: Indication: Yes
Color Option 3: Red
Color Option 2: Yellow
Feature: Quick Disconnect: No
Lumens Color 1: 92
Animation Option 3: Dip-Switch Controlled
Color Technology: Standard LED
Feature: Audible: No
Color Option 1: Green
Animation Option 2: Dip-Switch Controlled
Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
Housing Color: Gray
Color Input Control: Individual (One wire/color, same number of colors as input wires)
Multi-Color Device: Single Color On
Animation Option 1: Dip-Switch Controlled
Number of Colors / Segments: 3
Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
Lumens Color 2: 22
Lumens Color 3: 40
Product Size (mm): 70 mm
Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
Max Op. Relative NC Humidity: 95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete): No
Mounting Thread: No Thread
Feature: Chemical Resistant: No
Storage Temp: -40 to 70 °C
Number of Tower Light Segments: 1
Cord/Cable Length: 150 mm
