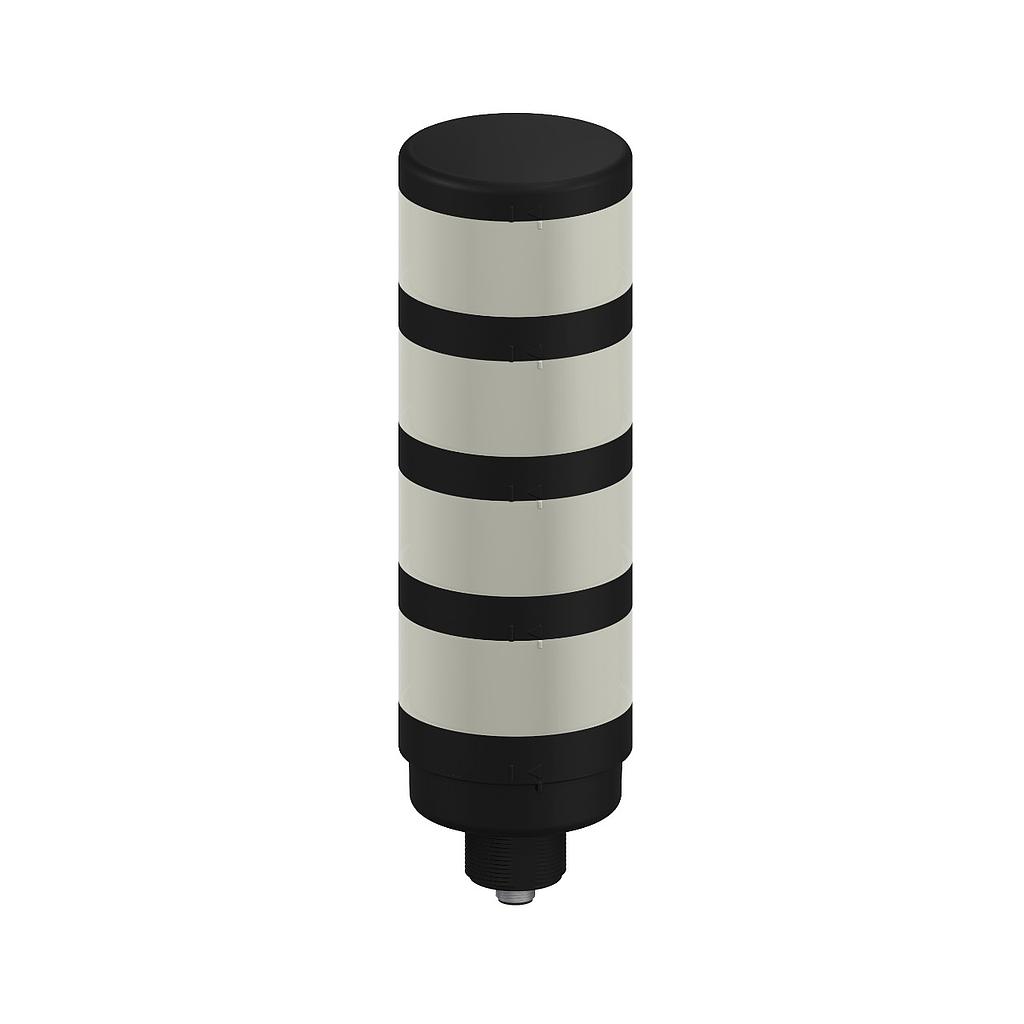

TL70 Tower Light (TL70GYRBQ)
Features:
- TL70 Tower Light
- Black Housing: 4-Color Indicator
- Voltage: 12-30 V dc
- Environmental Rating: IP65
- Input: Bimodal
- Colors: Green Yellow Red Blue
- Euro 5-pin Integral Quick-Disconnect
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 420 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP65
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 70.0 x 261.6 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 92
- Animation Option 3: Dip-Switch Controlled
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Animation Option 2: Dip-Switch Controlled
- Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Dip-Switch Controlled
- Quick Disconnect Type: M12
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 22
- Lumens Color 3: 40
- Product Size (mm): 70 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 5
- Input Type: Bimodal (PNP/NPN)
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 180 ms
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Color Option 4: Blue
- Color 4 - Wavelength/Color Temp/Coordinates: 470 nm
- Lumens Color 4: 32
- Number of Tower Light Segments: 4
- Animation Option 4: Dip-Switch Controlled
- Connection Type: Integral QD
- Cord/Cable Length: 2 m
