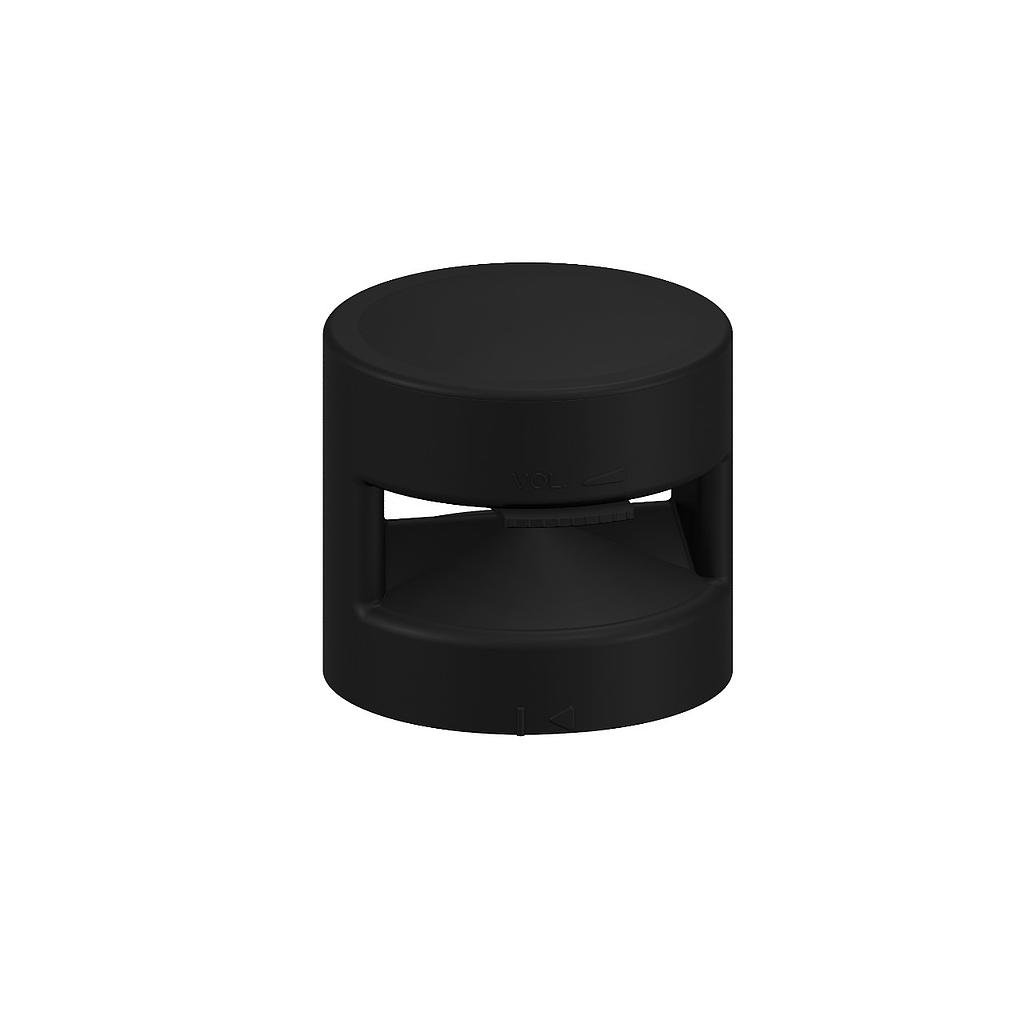

Representative photo. Please check item description for details.

TL70 Audible Module (SG-TL70-AL)

https://www.branom.com/web/image/product.template/83235/image_1920?unique=c26756c
(0 review)

Features:

  • TL70 Audible Module
  • Loud
  • Voltage: 12-30 V dc
  • Environmental Rating: IP65
  • Adjustable to 101 db, 4 tones
  • Black Housing
    • Power: AC or DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current - Audible Alarm (mA): 350 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC or VAC
  • Ingress Protection: IP65
  • Housing Style: Segment - Audible
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 72.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Max Audible Intensity: 101 dB @ 1 m
  • Feature: Quick Disconnect: No
  • Min Audible Intensity @ 1m: 85 dB
  • Color Technology: Standard LED
  • Feature: Audible: Audible Only
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Audible Operating Frequency (kHz): 2.6
  • Product Size (mm): 70 mm
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Multitone Loud Audible
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 1
  • Feature: Non-Illuminated: Yes

$ 101.00 101.0 USD $ 101.00

$ 101.00

Not Available For Sale
