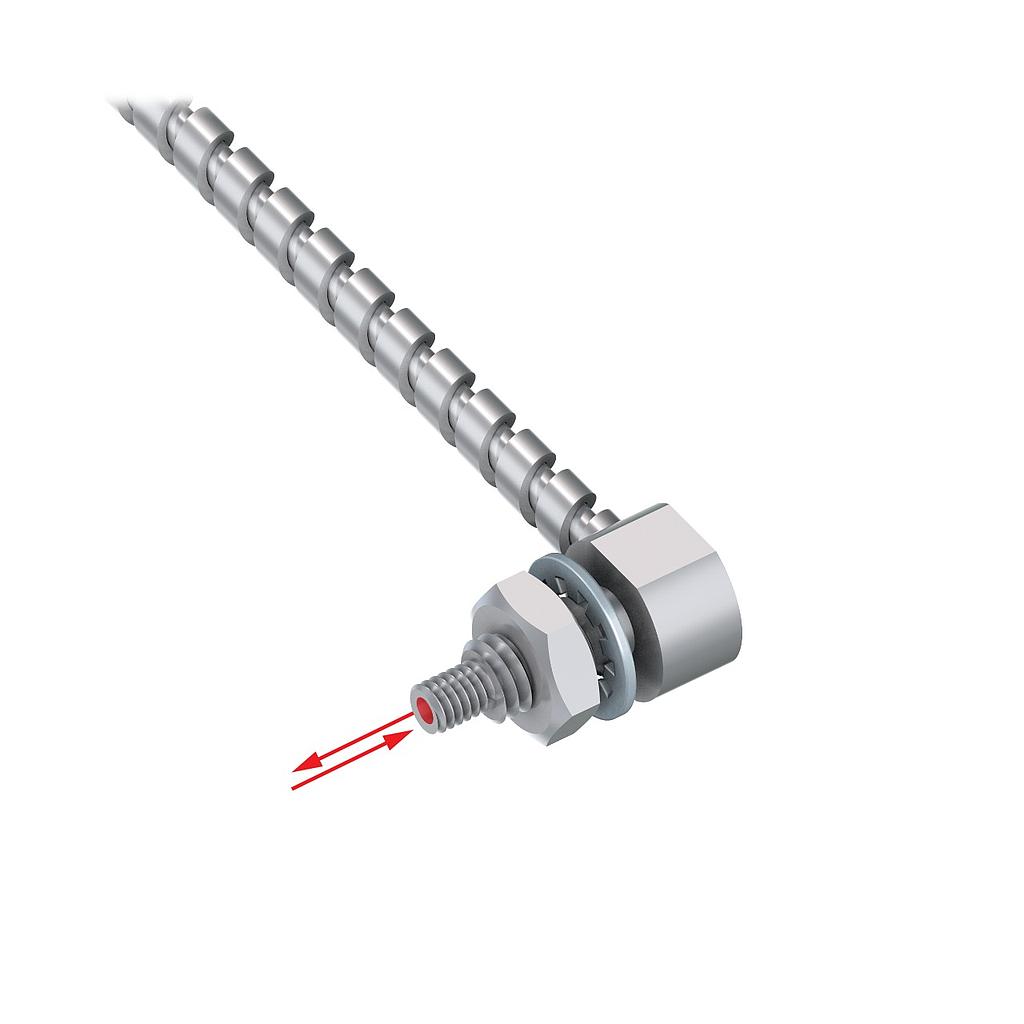

Glass Fiber (IAT43ST5TA-VL)

https://www.branom.com/web/image/product.template/83213/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber
  • Opposed Mode 1 mm dia. Bundle
  • M4 Threaded Right Angle With M2.5 Tip
  • Stainless Sheathing 1 m Long
  • Terminated For Plastic Fiber Sensors
  • Vantage Line
  • Max Operating Temperature: 249 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Sideview
  • Tariff Fiber Meters: 327 fbm
  • Measured Max Distance: 654 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.5
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 1 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Thread
  • Sensing End Segment 3: Thread
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 5m
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: 654 mm
  • Max Distance: DF-G3: 5082 mm
  • Max Distance: DF-G2: 1060 mm
  • Minimum Bend Radius: 25 mm
