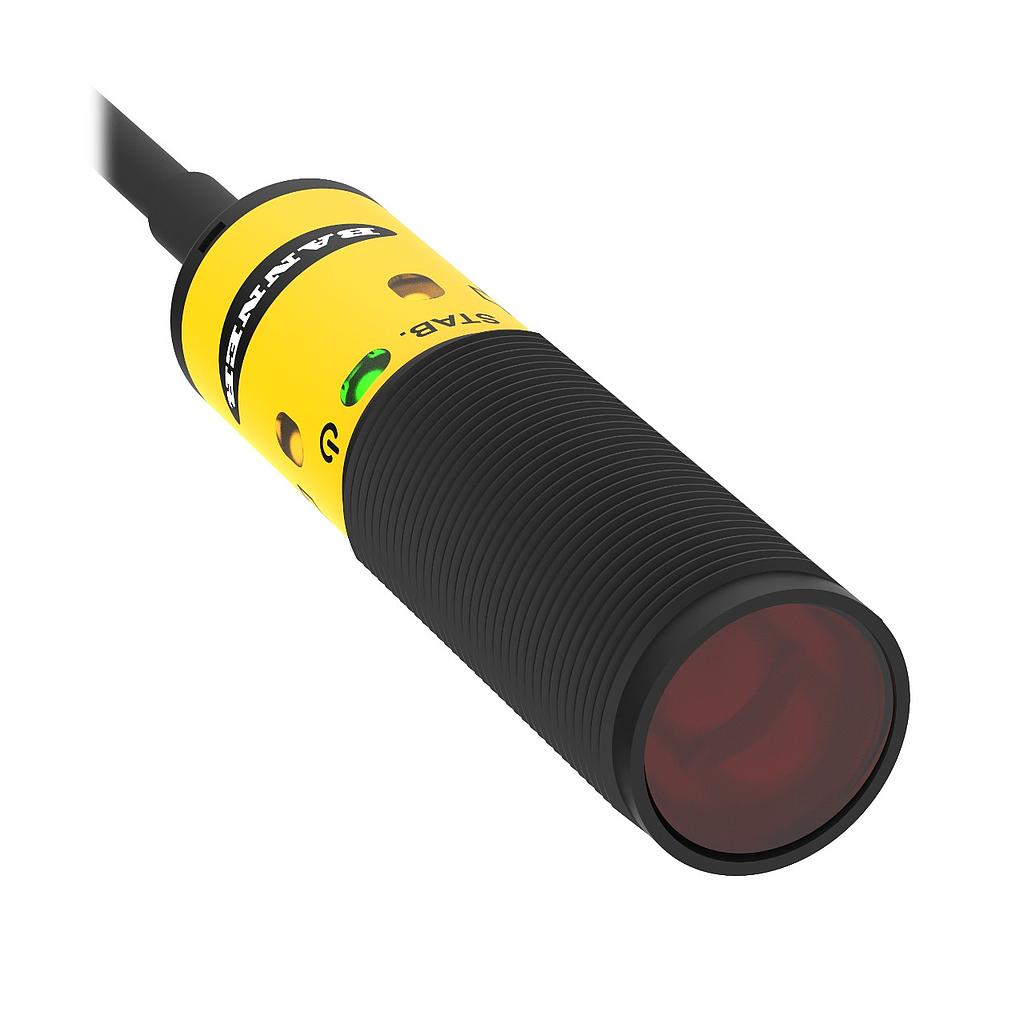

S18-2 Series: Polarized Retroreflective (S18-2VPLP-Q5-95695)

https://www.branom.com/web/image/product.template/82224/image_1920?unique=c26756c
(0 review)

Features:

  • S18-2 Series: Polarized Retroreflective
  • Range: 6 m
  • Input: 10-30 V dc
  • Outputs: complementary PNP
  • Connection: Euro M12 4-pin 150 mm PVC Pigtail White and Black outputs reversed
  • Lens Material: Acrylic
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam Wavelength: 624
  • Housing Style: Barrel
  • Max Sensing Distance: 6000 mm
  • Sensing Mode (Detailed): Polarized
  • Max Relative Humidity: 95% @ 50 °C
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Intrinsically Safe: No
  • Indicator Type: LED

$ 137.00 137.0 USD $ 137.00

$ 137.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • S18-2 Series: Polarized Retroreflective
    • Range: 6 m
    • Input: 10-30 V dc
    • Outputs: complementary PNP
    • Connection: Euro M12 4-pin 150 mm PVC Pigtail White and Black outputs reversed
    • Lens Material: Acrylic
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 100
    • Sensing Beam Wavelength: 624
    • Housing Style: Barrel
    • Max Sensing Distance: 6000 mm
    • Sensing Mode (Detailed): Polarized
    • Max Relative Humidity: 95% @ 50 °C
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Feature: Intrinsically Safe: No
    • Indicator Type: LED
