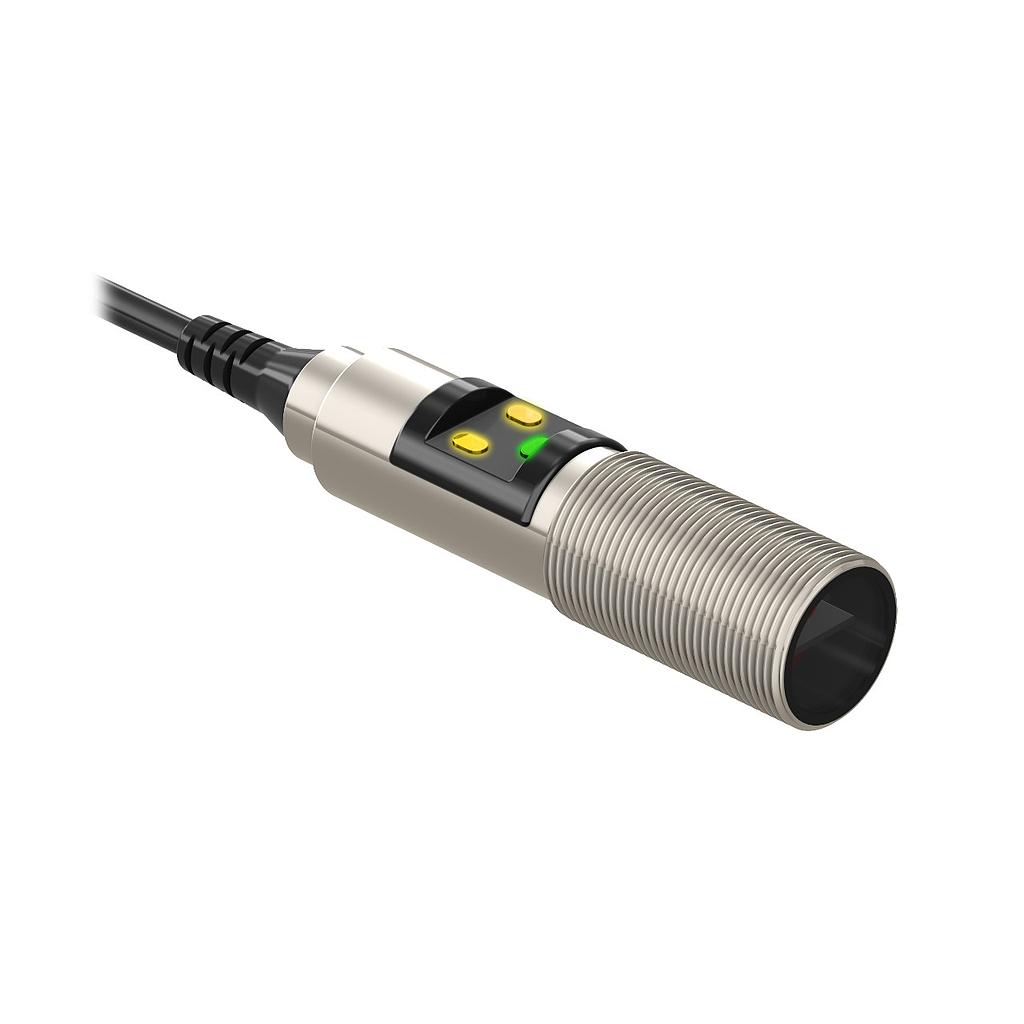

M18-4 Series: Stainless: Emitter with Beam Inhibit Input (M18-4NAEJ-2M)

https://www.branom.com/web/image/product.template/82169/image_1920?unique=c26756c
(0 review)

Features:

  • M18-4 Series: Stainless: Emitter with Beam Inhibit Input
  • Range: 25 m
  • Input: 10-30 V dc
  • Outputs: none
  • Input: Beam Inhibit
  • Connection: 3-conductor 2 m PVC cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 170
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Barrel
  • Max Sensing Distance: 25000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: SS
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 1.5 ms
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 91.00 91.0 USD $ 91.00

$ 91.00

Not Available For Sale
