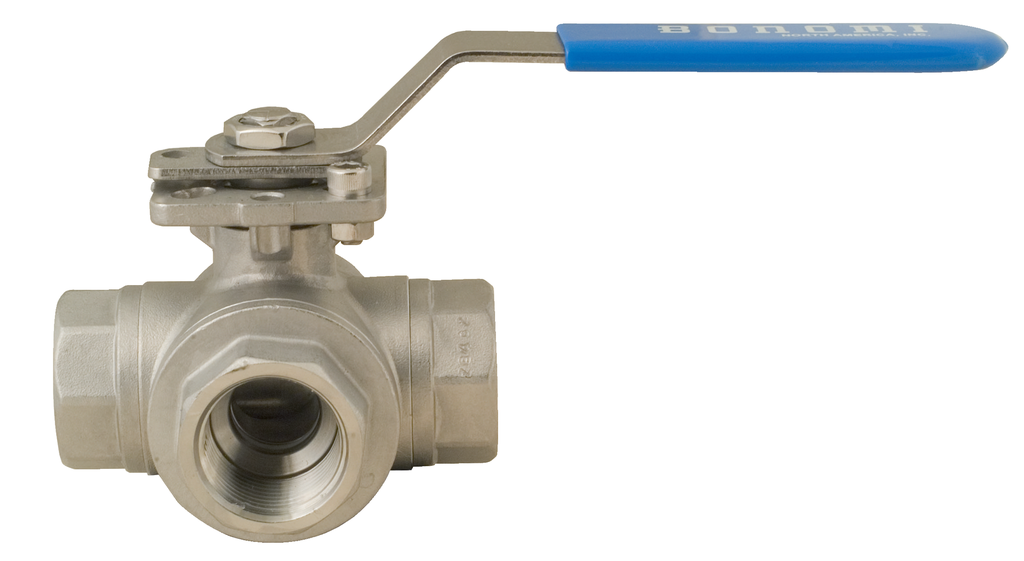

955N / 956N North America Series Stainless Steel 3-Way Ball Valve w/ ISO 5211 Direct Mounting Pad, NPT Threaded
955N (T) - 965N (L) Standard Port direct mount stainless steel three way ball valve FNPT threaded, full and reduced port.
Features
Working pressure is 1000 psi (1/4” to 1”), 800 psi (1 1/4” - 3”).
Temperature range -20°F to 450°F.Self adjusting stem packing.
Blow-out proof stem design.
100% air tested under water at 80 psi.
ISO 5211 mounting pad/square stem.
Locking handle.
Model details
955N - 965N: STANDARD PORT - size 1/2” to 3”.
956N - 966N: FULL PORT - size 1/4” to 2”.
955N (T) - 965N (L) Standard Port direct mount stainless steel three way ball valve FNPT threaded, full and reduced port.
Features
Working pressure is 1000 psi (1/4” to 1”), 800 psi (1 1/4” - 3”).
Temperature range -20°F to 450°F.Self adjusting stem packing.
Blow-out proof stem design.
100% air tested under water at 80 psi.
ISO 5211 mounting pad/square stem.
Locking handle.
Model details
955N - 965N: STANDARD PORT - size 1/2” to 3”.
956N - 966N: FULL PORT - size 1/4” to 2”.
Specifications
| Model | [955N] T-Ported, Reduced Port, [965N] L-Ported, Reduced Port, [956N] T-Ported, Full Port, [966N] L-Ported, Full Port |
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 1/4", 3/8", 1/2" , 3/4" , 1" , 1-1/4" , 1-1/2" , 2" |
