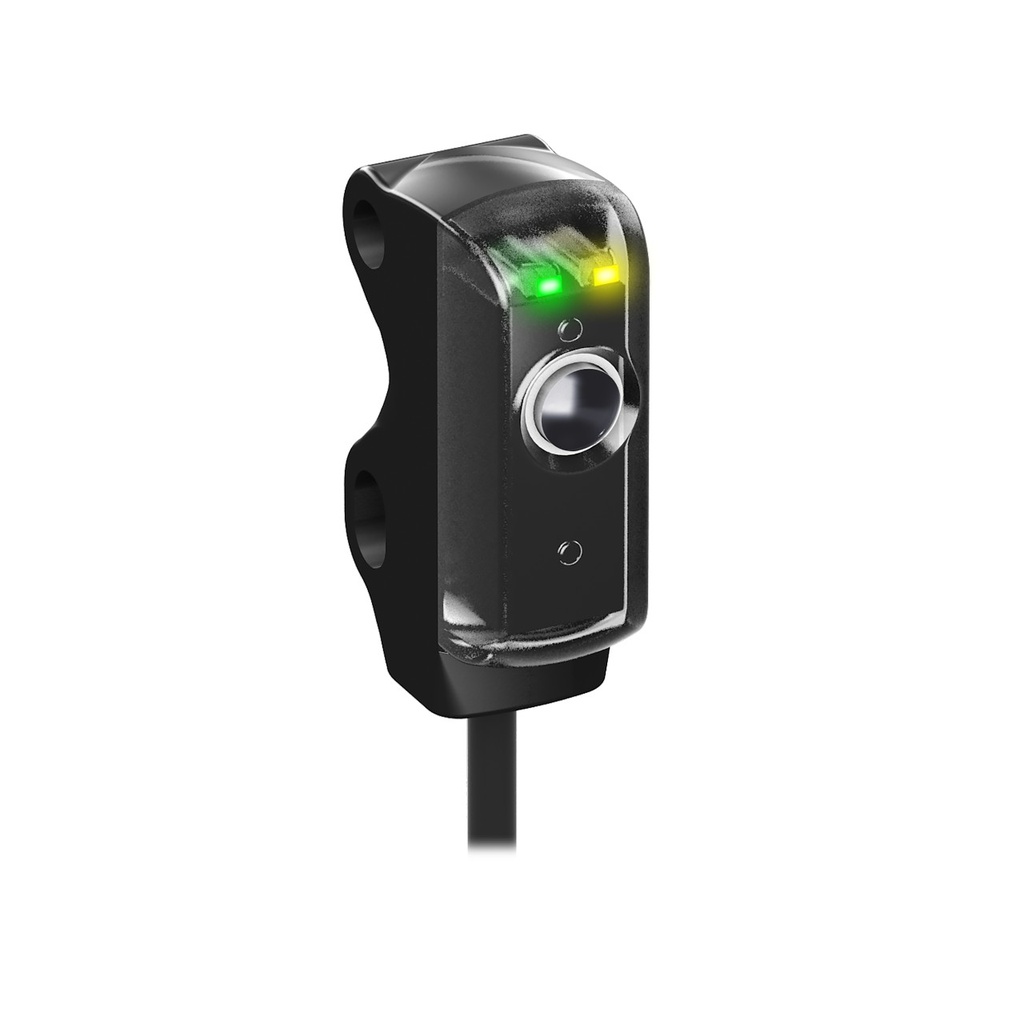

Representative photo. Please check item description for details.

VS3 Series: Polarized Retro (VS3RN5XLPQ5-95033)

https://www.branom.com/web/image/product.template/81870/image_1920?unique=c26756c
(0 review)

Features:

  • VS3 Series: Polarized Retro
  • Range: 250 mm
  • Input: 10 to 30 V dc
  • Output: NPN Dark Operate
  • Euro 4-pin .5 m (20 in) Pigtail
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Glass
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 160
  • Sensing Beam: Visible Red LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 250 mm
  • Sensing Mode (Detailed): Polarized (Coaxial)
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 80% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 306.00 306.0 USD $ 306.00
