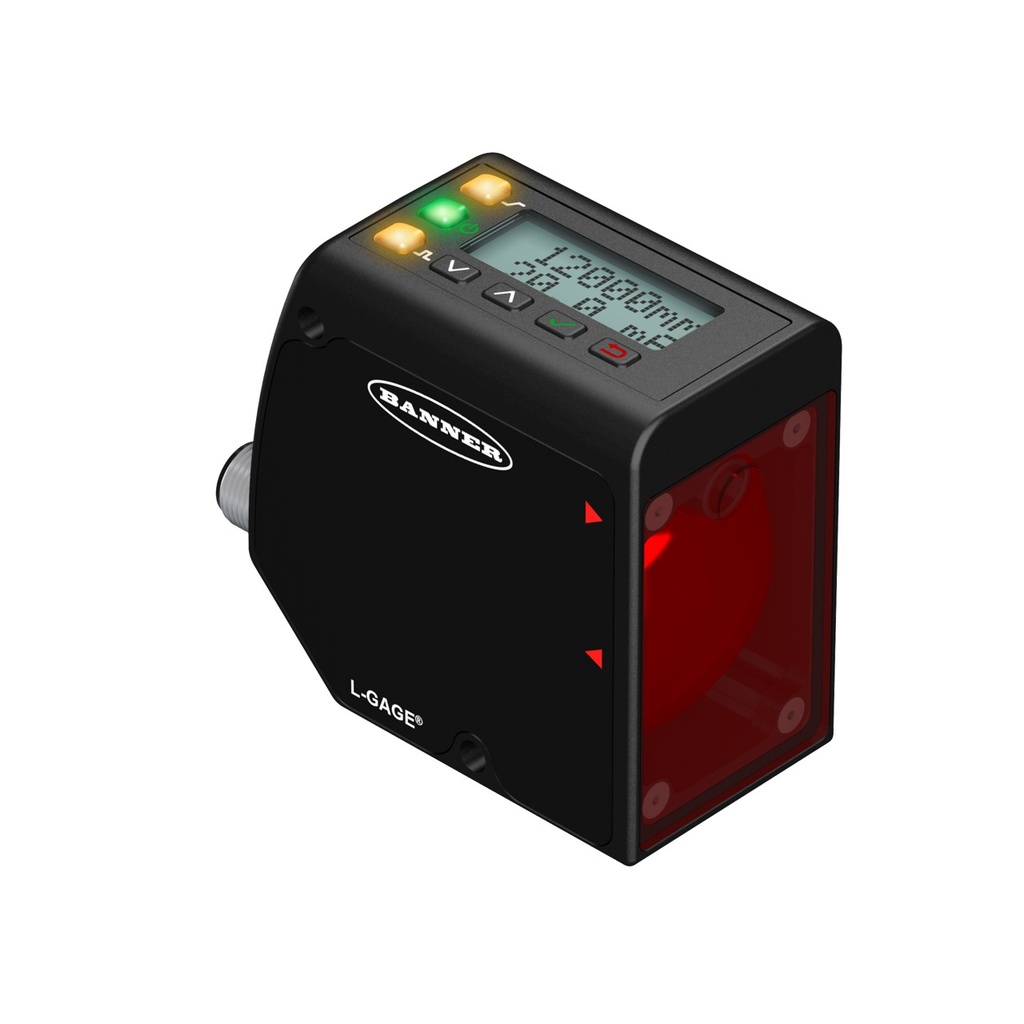

Laser Diffuse Time-of-Flight Sensor (LTF12UC2LDQ)

https://www.branom.com/web/image/product.template/81249/image_1920?unique=c26756c
(0 review)

Features:

  • Laser Diffuse Time-of-Flight Sensor
  • Range: 50-12000 mm
  • Input:12-30 V dc
  • Output: Analog: 0-10 V
  • Class 2 Laser
  • Discrete: NPN/PNP configurable
  • Integral Quick-Disconnect
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 12000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Zinc Alloy Die-Cast
  • Laser Classification: Class 2
  • Analog Output: 0 to 10 VDC
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog & Discrete
  • Min Response Time: 1.5 ms
  • Min Sensing Distance: 50 mm
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Max Ambient Light: 40000 lux

$ 749.00 749.0 USD $ 749.00

$ 749.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Laser Diffuse Time-of-Flight Sensor
    • Range: 50-12000 mm
    • Input:12-30 V dc
    • Output: Analog: 0-10 V
    • Class 2 Laser
    • Discrete: NPN/PNP configurable
    • Integral Quick-Disconnect
    • Power: DC
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 55 °C
    • Power Supply: 12-30 VDC
    • Ingress Protection: IP67
    • Sensing Beam: Visible Red Laser
    • Housing Style: Rectangular
    • Max Sensing Distance: 12000 mm
    • Sensing Mode (Detailed): Time of Flight
    • Sensing Mode (General): Proximity
    • Device Type: Sensor
    • Housing Material_: Zinc Alloy Die-Cast
    • Laser Classification: Class 2
    • Analog Output: 0 to 10 VDC
    • Feature: Quick Disconnect: Yes
    • Quick Disconnect Type: M12
    • Number of Pins: 5
    • Adjustments: Push Button; Remote Teach
    • Feature: Timing (Hold/Delay): Yes
    • Input/Output: Analog & Discrete
    • Min Response Time: 1.5 ms
    • Min Sensing Distance: 50 mm
    • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
    • Feature: Remote Teach: Yes
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6
    • Feature: Health/Marginal Signal Output: Yes
    • Feature: Laser Control: Yes
    • Max Ambient Light: 40000 lux
