Representative photo. Please check item description for details.

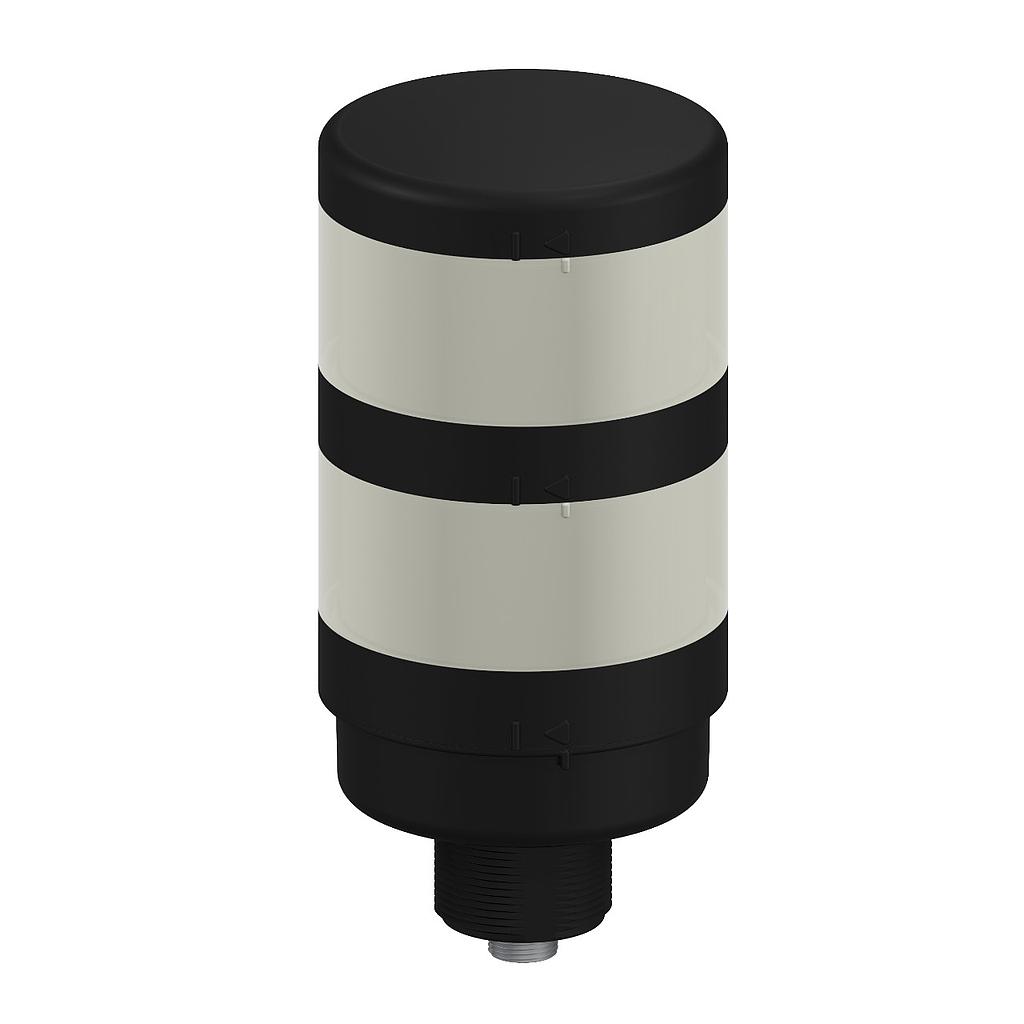

TL70 Tower Light (TL70YRQ)

Features:

Feature: Display: No
Feature: Display Lighting: No
Max Current Color: 420 mA
Min Operating Temperature: -40 °C
Max Operating Temperature: 50 °C
Power Source: VDC
Ingress Protection: IP65
Housing Style: Base Mount - Tower
Max Relative Humidity: 95% @ 50 °C (NC)
Housing Material_: Polycarbonate
Feature: Hazardous Area: No
Feature: IO Link: No
Feature: Modbus RTU: No
Physical Dimensions: 70.0 x 161.3 mm
Feature: Wireless: No
Feature: Indication: Yes
Supply Voltage: 12-30 VDC
Color Option 2: Red
Feature: Quick Disconnect: Yes
Lumens Color 1: 22
Color Technology: Standard LED
Feature: Audible: No
Color Option 1: Yellow
Animation Option 2: Dip-Switch Controlled
Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
Housing Color: Black
Color Input Control: Individual (One wire/color, same number of colors as input wires)
Multi-Color Device: Simultaneous Colors On
Animation Option 1: Dip-Switch Controlled
Quick Disconnect Type: M12
Number of Colors / Segments: 2
Lumens Color 2: 40
Product Size (mm): 70 mm
Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
Number of Input Pins/Conductors: 5
Input Type: Bimodal (PNP/NPN)
Max Op. Relative NC Humidity: 95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete): No
Mounting Thread: M30 x 1.5
Max Input Response Time (ms): 180 ms
Feature: Chemical Resistant: No
Storage Temp: -40 to 70 °C
Number of Tower Light Segments: 2
Connection Type: Integral QD
