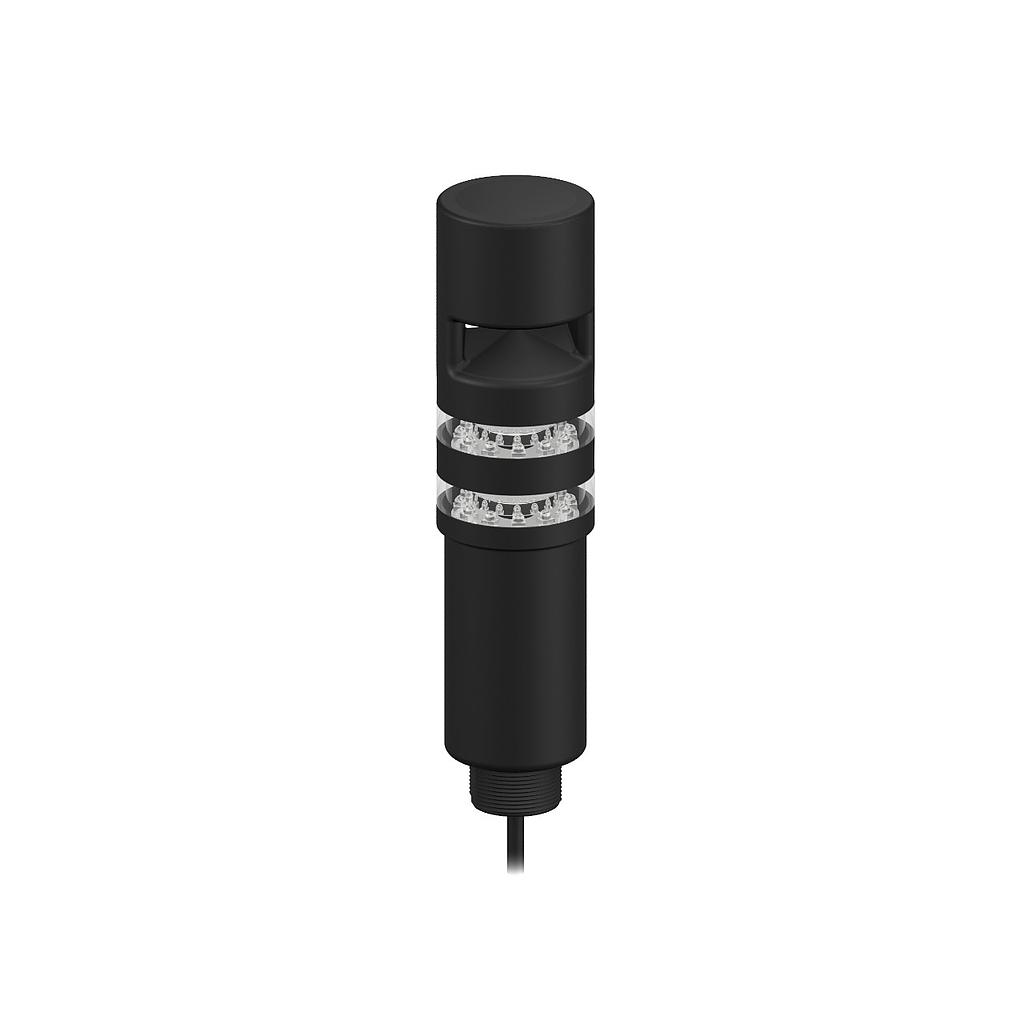

Beacon Tower Light (TL50BLZGR1AOS3)

https://www.branom.com/web/image/product.template/81096/image_1920?unique=c26756c
(0 review)

Features:

  • Beacon Tower Light
  • 2-Color Sealed
  • Omni-directional Pulsed Audible Indicator
  • Voltage: 100-240 V ac
  • Environmental Rating: IP67
  • Colors: Green steady Red rotate
  • 2 m (6.5 ft) Cable
  • Power: AC
  • Feature: Display Lighting: No
  • Max Current Color: 55 mA
  • Max Current - Audible Alarm (mA): 35 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VAC
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 227.7 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Max Audible Intensity: 99 dB @ 1 m
  • Supply Voltage: 100-240 VAC
  • Color Option 2: Red
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 52
  • Color Technology: Standard LED
  • Feature: Audible: Yes
  • Color Option 1: Green
  • Animation Option 2: Rotating Only
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Solid On
  • Audible Operating Frequency (kHz): 2.1 kHz
  • Number of Colors / Segments: 2
  • Lumens Color 2: 24
  • Product Size (mm): 50 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 626 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: AC
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 500 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Pulsed
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 3
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection: Cable
  • NEMA / UL: NEMA 13
  • Cord/Cable Length: 2 m
  • Max Input Response Time: 500 ms

$ 407.00 407.0 USD $ 407.00

$ 407.00

Not Available For Sale
