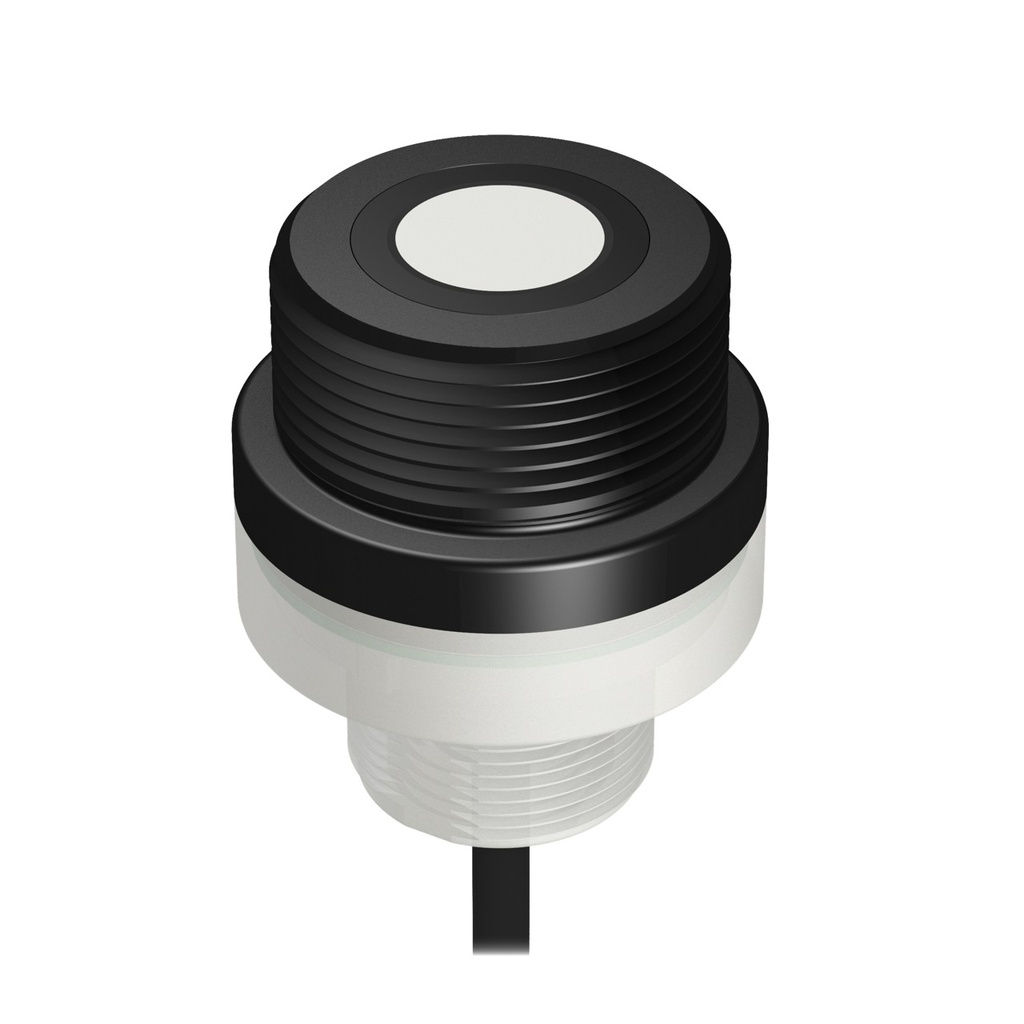

K50 Ultrasonic Sensor (K50UX2CRA)

https://www.branom.com/web/image/product.template/81092/image_1920?unique=c26756c
(0 review)

Features:

  • K50 Ultrasonic Sensor
  • Modbus Slave Device via RS-485
  • Range: 300 mm to 3 m (11.8 in to 118 in)
  • 230 mm (9 in) QD Cable
  • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 3.5-5.5 VDC / 10-30 VDC
  • Temperature Effect (mm/°C): 0.02% of sensing distance/°C
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Barrel
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: Yes
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Software
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Serial (Modbus)
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Analog Resolution/Discrete Repeatability: 0.1% of distance (1.5 min)
  • Min Sensing Distance: 300 mm
  • Feature: Clear Object Detection: Yes
  • Max Measurement Range: 1-20 m
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.23 m
  • Barrel Thread: 1.25" NPT
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Ultrasonic Frequency: 114 kHz

$ 411.00 411.0 USD $ 411.00

$ 411.00

Not Available For Sale

    This combination does not exist.
