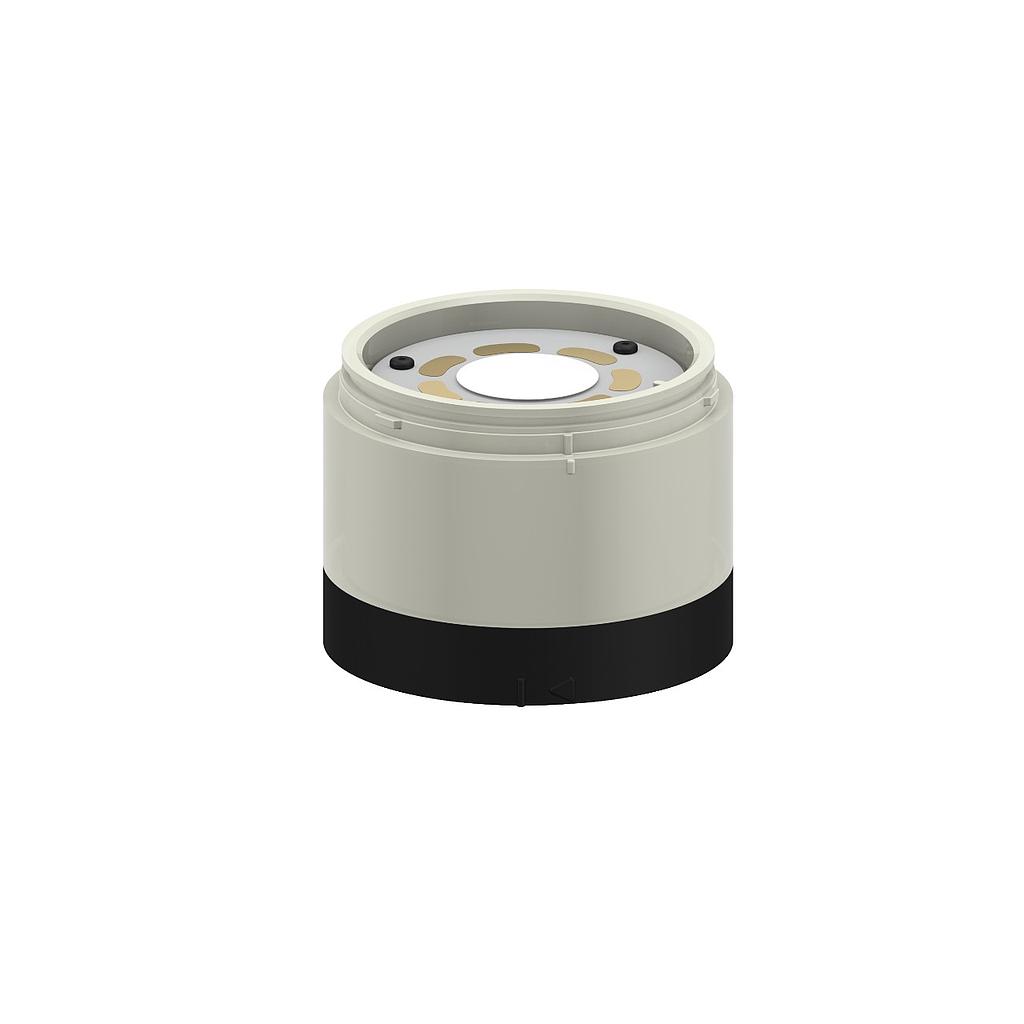

TL70 Light Module (SG-TL70-Y-L)

https://www.branom.com/web/image/product.template/80957/image_1920?unique=c26756c
(0 review)

Features:

  • TL70 Light Module
  • Color: Yellow
  • Voltage: 12-30 V dc
  • Environmental Rating: IP65
  • Steady On/Flashing
  • Black Housing
  • Laser Etched YELLOW 5 mm Height
    • Power: AC or DC
  • Feature: Display: No
  • Max Current Color: 420 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC or VAC
  • Ingress Protection: IP65
  • Housing Style: Segment - Light
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 50.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 22
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Dip-Switch Controlled
  • Number of Colors / Segments: 1
  • Product Size (mm): 70 mm
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 1

$ 95.00 95.0 USD $ 95.00

$ 95.00

Not Available For Sale
