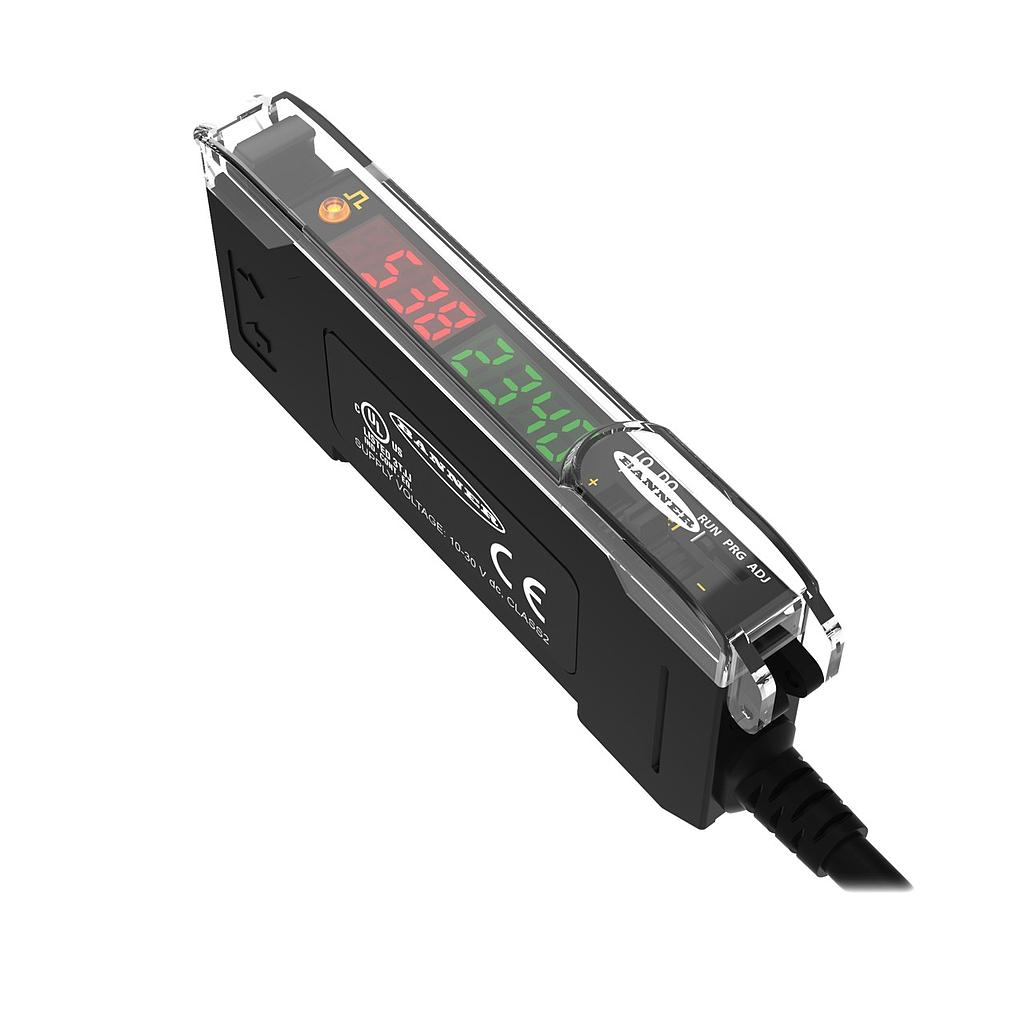

DF-G1 Dual Display Fiber Amplifier (DF-G1-PS-2M-94368)

https://www.branom.com/web/image/product.template/80923/image_1920?unique=c26756c
(0 review)

Features:

  • DF-G1 Dual Display Fiber Amplifier
  • Range: Depends on fiber
  • Input 10-30 V dc
  • Output: 1 PNP
  • 2 m (6.5 ft.) Cable
  • Bracket kit 19966
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 66 to 100
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 60 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: .2 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1
  • Cord/Cable Length: 2 m
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Indicator Type: Dual Digital Displays

$ 290.00 290.0 USD $ 290.00

$ 290.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • DF-G1 Dual Display Fiber Amplifier
    • Range: Depends on fiber
    • Input 10-30 V dc
    • Output: 1 PNP
    • 2 m (6.5 ft.) Cable
    • Bracket kit 19966
    • Min Operating Temperature: -10 °C
    • Max Operating Temperature: 55 °C
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 500 ms
    • Feature: Bussable Power: No
    • Ingress Protection: IP50
    • Repeatability (µs): 66 to 100
    • Housing Style: DIN Rail
    • Max Relative Humidity: 90% @ 60 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Feature: Audible: No
    • Number of Pins: 4
    • Adjustments: Teach Button
    • Feature: Timing (Hold/Delay): Yes
    • Input/Output: Discrete
    • Min Response Time: .2 ms
    • Output Type (Specific): Single Discrete
    • Fiber Type: Plastic and Glass
    • Color LED - Amplifiers: Red
    • Feature: Remote Teach: Yes
    • Feature: Intrinsically Safe: No
    • Connection Type: Cable
    • NEMA / UL: NEMA 1
    • Cord/Cable Length: 2 m
    • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
    • Feature: Crosstalk Avoidance: Yes
    • Indicator Type: Dual Digital Displays
