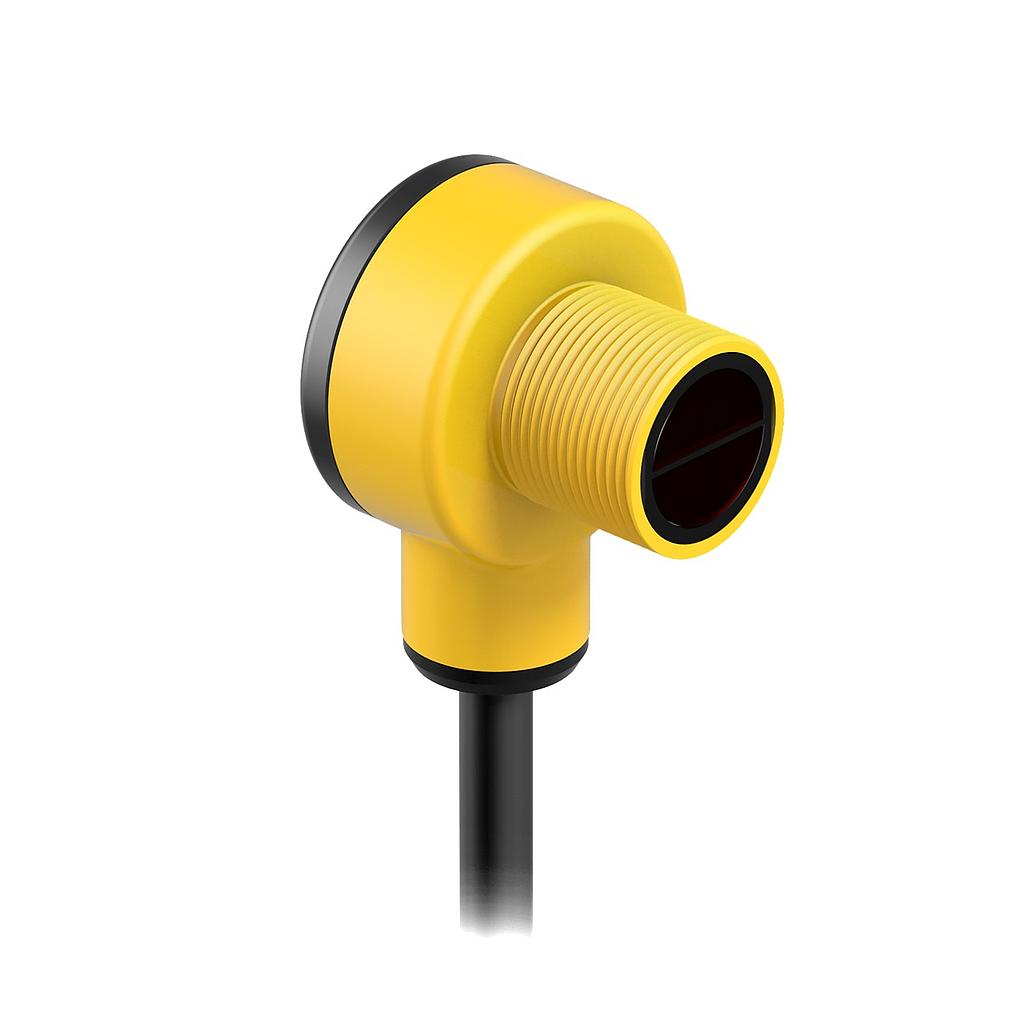

Representative photo. Please check item description for details.

EZ-BEAM T18 Series: Diffuse (T18SP6D W/30-94268)

https://www.branom.com/web/image/product.template/80860/image_1920?unique=c26756c
(0 review)

Features:

  • EZ-BEAM T18 Series: Diffuse
  • Range: 500 mm
  • Input: 10-30 V dc
  • Output: Complementary PNP
  • 9.2 m (30 ft) Cable
  • BULK 25 PER BOX
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67/69
  • Repeatability (µs): 750
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 500 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: LED

$ 150.00 150.0 USD $ 150.00

$ 150.00

Not Available For Sale
