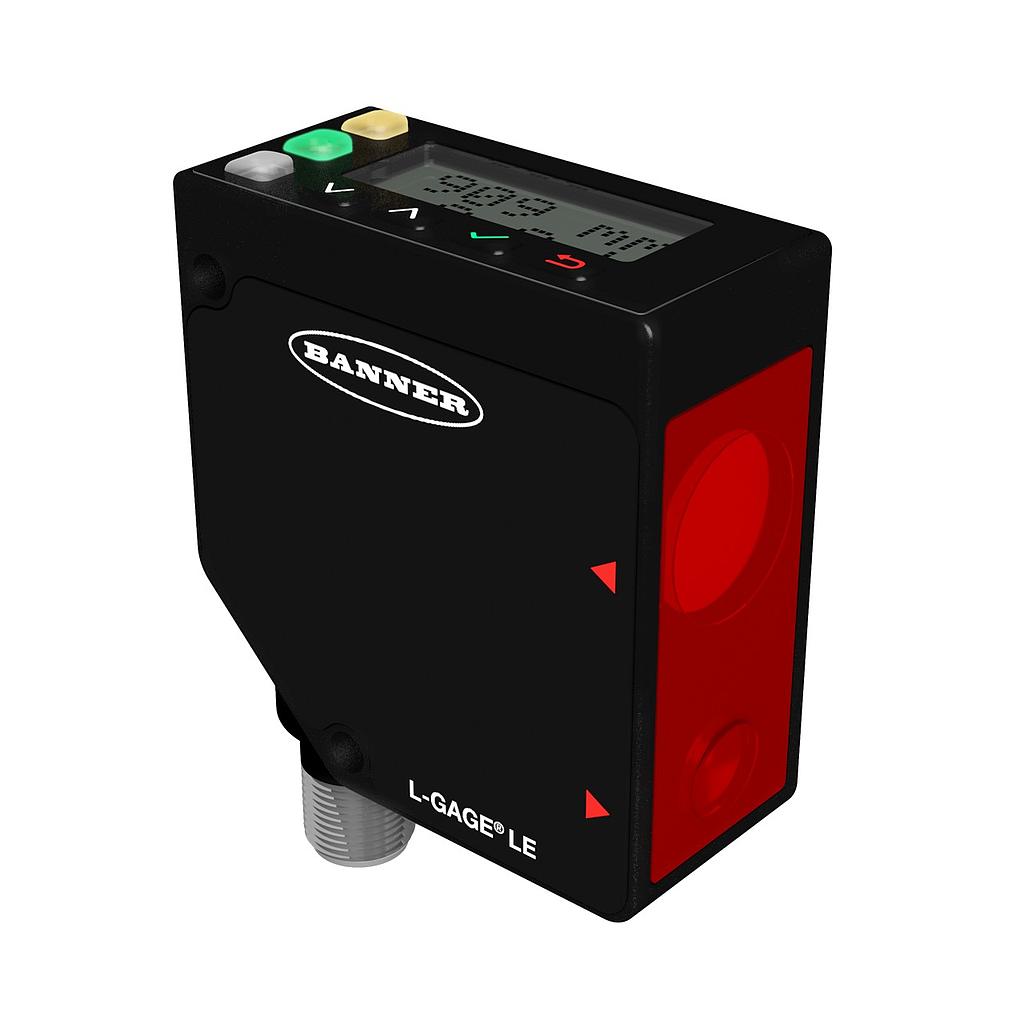

Laser Displacement Sensor (LE250DQ)

https://www.branom.com/web/image/product.template/78876/image_1920?unique=c26756c
(0 review)

Features:

  • Laser Displacement Sensor
  • Range: 100-400 mm
  • Input: 12-30 V dc
  • Outputs: Discrete: 2 NPN/PNP configurable
  • Integral Quick-Disconnect
  • Max Off-State Leakage Current (µA): <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power/Current Consumption (exclusive of load): 70 mA @ 24 V dc
  • Power Supply: 12-30 VDC
  • Temperature Effect (mm/°C): #ERROR
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular
  • Max Sensing Distance: 400 mm
  • Sensing Mode (Detailed): Triangulation
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Laser Classification: Class 2
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 90% @ 55 °C
  • Feature: Chemical Resistant: No
  • Storage Temp: -30 to 65 °C
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Min Response Time: 2 ms
  • Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Output Saturation Voltage PNP Outputs: < 3 V @ 100 mA
  • Analog Resolution/Discrete Repeatability: 100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 100 mm
  • Min Window Size: 1 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Max Measurement Range: 100-500 mm
  • Output Protection: Protected against continuous overload and short circuit
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <1.6 V @ 100 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Spot Size (@ Reference Distance): 0.9 mm x 1.2 mm @ 400 mm
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Feature: Common Ethernet Protocol: No
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Feature: PC Configurable: No
  • Indicator Type: LCD/LED
  • Max Ambient Light: 10000 lux
  • Warm-Up Time: 10 min
  • Discrete Output Hysteresis: Auto Adjust
  • Alarm Output (mA): 100

$ 1,024.00 1024.0 USD $ 1,024.00

$ 1,024.00

Not Available For Sale

    This combination does not exist.
