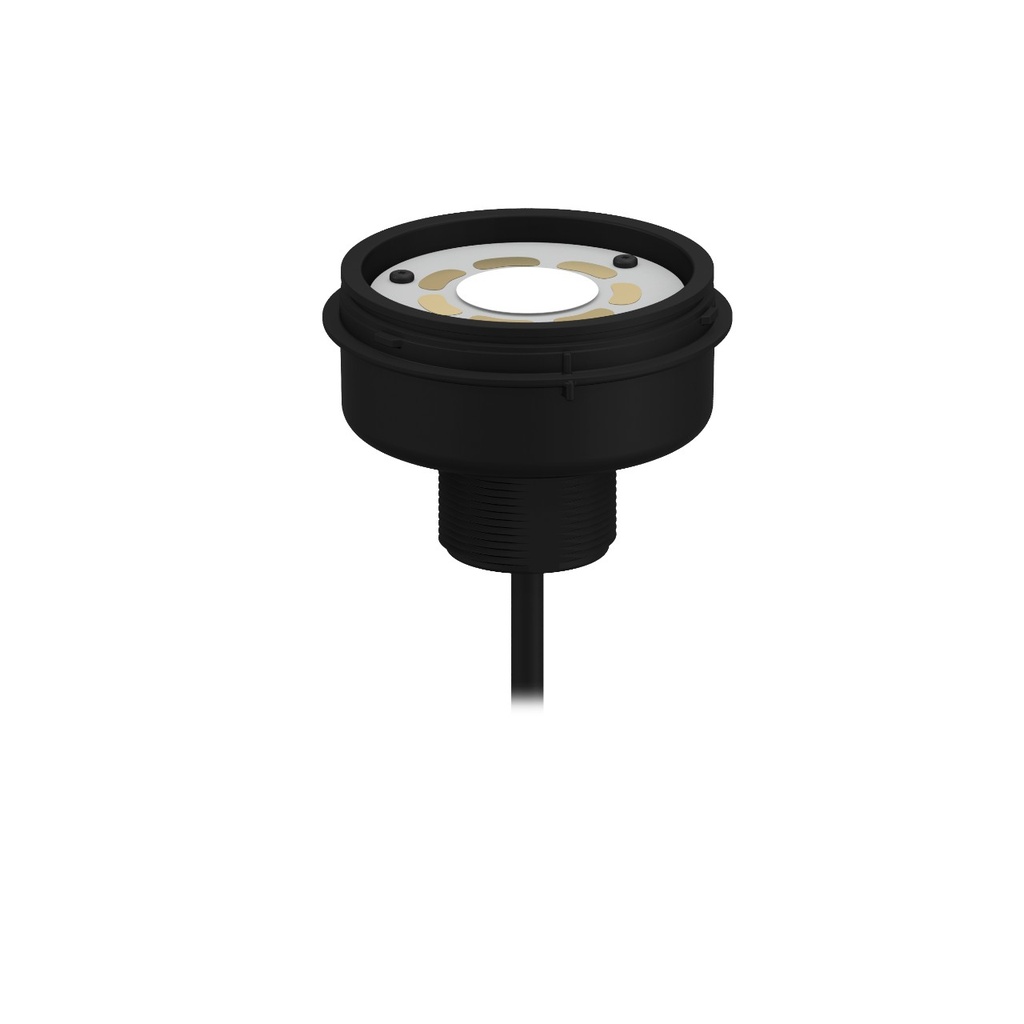

TL70 Base Module (B-TL70-Q3PMA)

https://www.branom.com/web/image/product.template/78794/image_1920?unique=c26756c
(0 review)

Features:

  • TL70 Base Module
  • Supports 1-6 Modules
  • Voltage: 12-30 V dc
  • Environmental Rating: IP65
  • 3x Euro 5-pin 305 mm (12 in) 229 mm (9 in) 150 mm (6 in) PUR Pigtails
  • Black Housing
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 420 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Segment - Base
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 47.5 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type: M12
  • Product Size (mm): 70 mm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 180 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Feature: Non-Illuminated: Yes
  • Connection Type: Pigtail PUR QD
  • Cord/Cable Length: 0.15 m

$ 196.00 196.0 USD $ 196.00

$ 196.00

Not Available For Sale

    This combination does not exist.

    Contact Us
