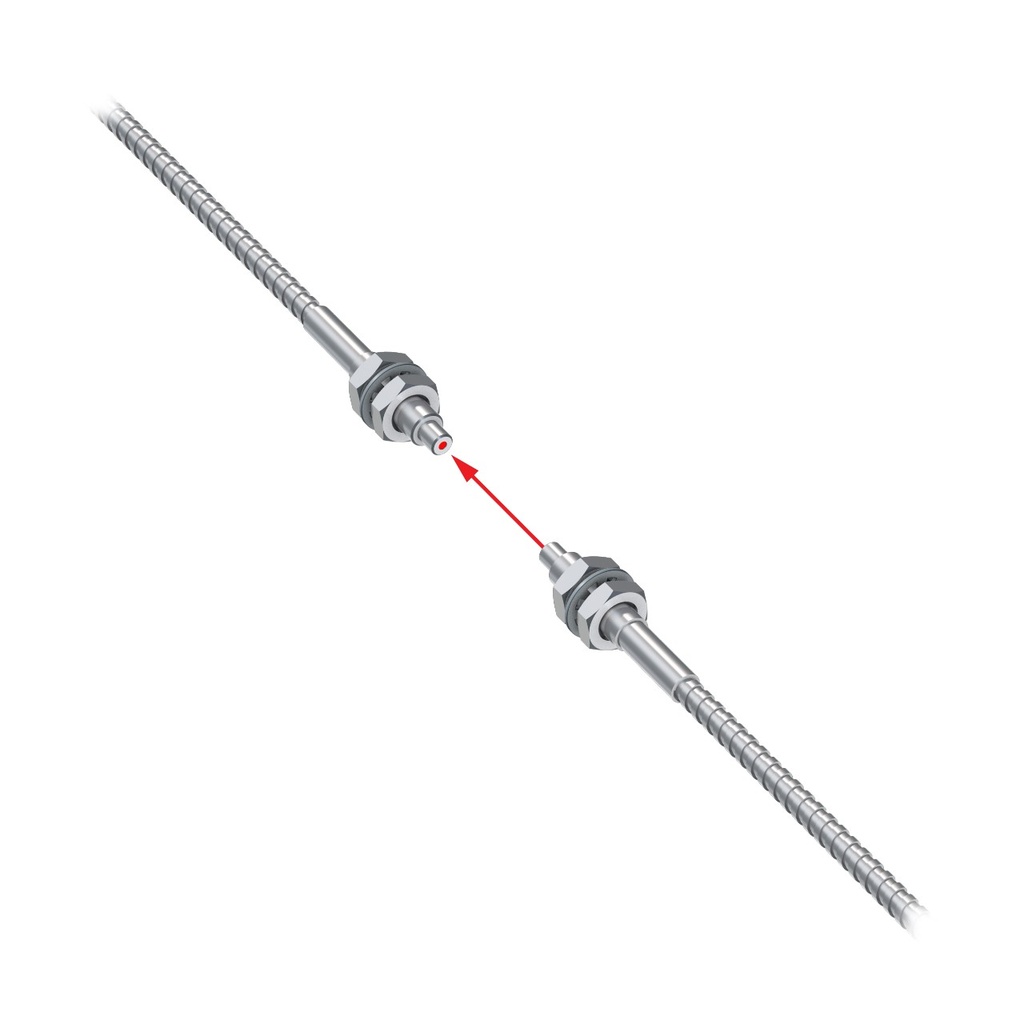

Plastic Fiber, Opposed Mode (PIT43TSL5-VL)

https://www.branom.com/web/image/product.template/78704/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 1 mm
  • Fiber Length 1 m
  • Thread M4
  • Stainless Monocoil
  • 25 mm Bend Radius
  • Vantage Line
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 2 fbm
  • Measured Max Distance: 1060 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.6
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: Yes
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Thread
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 5m
  • Min Hinged Door Size: 25 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: 1060 mm
  • Max Distance: DF-G3: 8233 mm
  • Max Distance: DF-G2: 1717 mm
  • Minimum Bend Radius: 25 mm

$ 150.00 150.0 USD $ 150.00

$ 150.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Plastic Fiber, Opposed Mode
    • Core Dia.: 1 mm
    • Fiber Length 1 m
    • Thread M4
    • Stainless Monocoil
    • 25 mm Bend Radius
    • Vantage Line
    • Max Operating Temperature: 70 °C
    • Housing Style: Round
    • Sensing Mode (Detailed): Reflective
    • Sensing Mode (General): Opposed
    • Feature: Chemical Resistant: No
    • Sensing End Segment 1: Thread
    • Tariff Fiber Meters: 2 fbm
    • Measured Max Distance: 1060 mm
    • Min Bend Radius: 25 mm
    • Feature: Vacuum Feed Through: None
    • Feature: Small Object Detection: No
    • Fiber Sensing End Size: M2.6
    • Feature: Retractile: No
    • Fiber Sensing End Tip: Thread
    • Termination: Terminated
    • Sensing End Material (Specific): Stainless Steel
    • Feature: Integrated Lens: Yes
    • Core Diameter: 1 mm
    • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
    • Feature: Extended Range: No
    • Feature: Flex Relief: Yes
    • Termination Type: Plastic Fiber Sensors
    • Fiber Sensing End Size - Mounting Area: M4
    • Fiber Length: 1 m
    • Fiber Optic Type: Plastic
    • Sensing End Segment 2: Thread
    • Beam Exit: In-line
    • Feature: Liquid Level: No
    • Max Range: DF-G3: > 5m
    • Min Hinged Door Size: 25 mm
    • Min Repeat Bending Endurance: 1000
    • Max Distance: DF-G1: 1060 mm
    • Max Distance: DF-G3: 8233 mm
    • Max Distance: DF-G2: 1717 mm
    • Minimum Bend Radius: 25 mm
