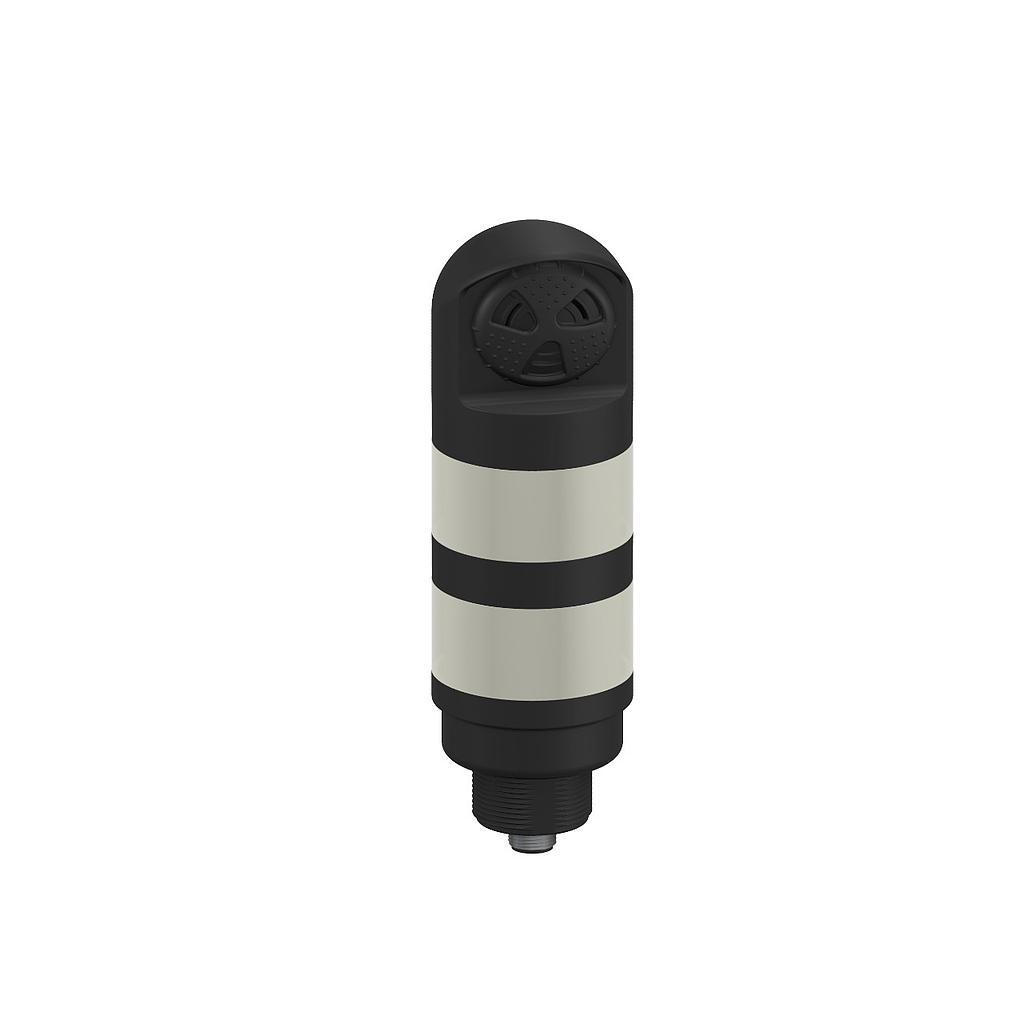

Representative photo. Please check item description for details.
TL50RGALSQ
Features:
- Tower Light: 2-Color Sealed Loud Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Red Green; Euro 4-pin Integral Quick-Disconnect
- Power: AC or DC
- Feature: Display: No
- Max Current Color: 45 mA
- Max Current - Audible Alarm (mA): 35 mA
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 50 °C
- Case Material: ABS
- Ingress Protection: IP67
- Housing Style: Base Mount - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: ABS
- Feature: Indication: Yes
- Max Audible Intensity: 94 dB @ 1 m
- Supply Voltage: 18-30 VDC/24 VAC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 7.5
- Min Audible Intensity @ 1m: 74 dB
- Color Technology: Standard LED
- Feature: Audible: Yes
- Color Option 1: Red
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Audible Operating Frequency (kHz): 2.9
- Number of Colors / Segments: 2
- Lumens Color 2: 23
- Color 2 - Wavelength/Color Temp/Coordinates: 528 nm
- Number of Input Pins/Conductors: 4
- Input Type: Bimodal (PNP/NPN)
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 10 ms
- Audible Alarm Type: Continuous
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 3
- Connection Type: Integral QD
- NEMA / UL: NEMA/UL 13
