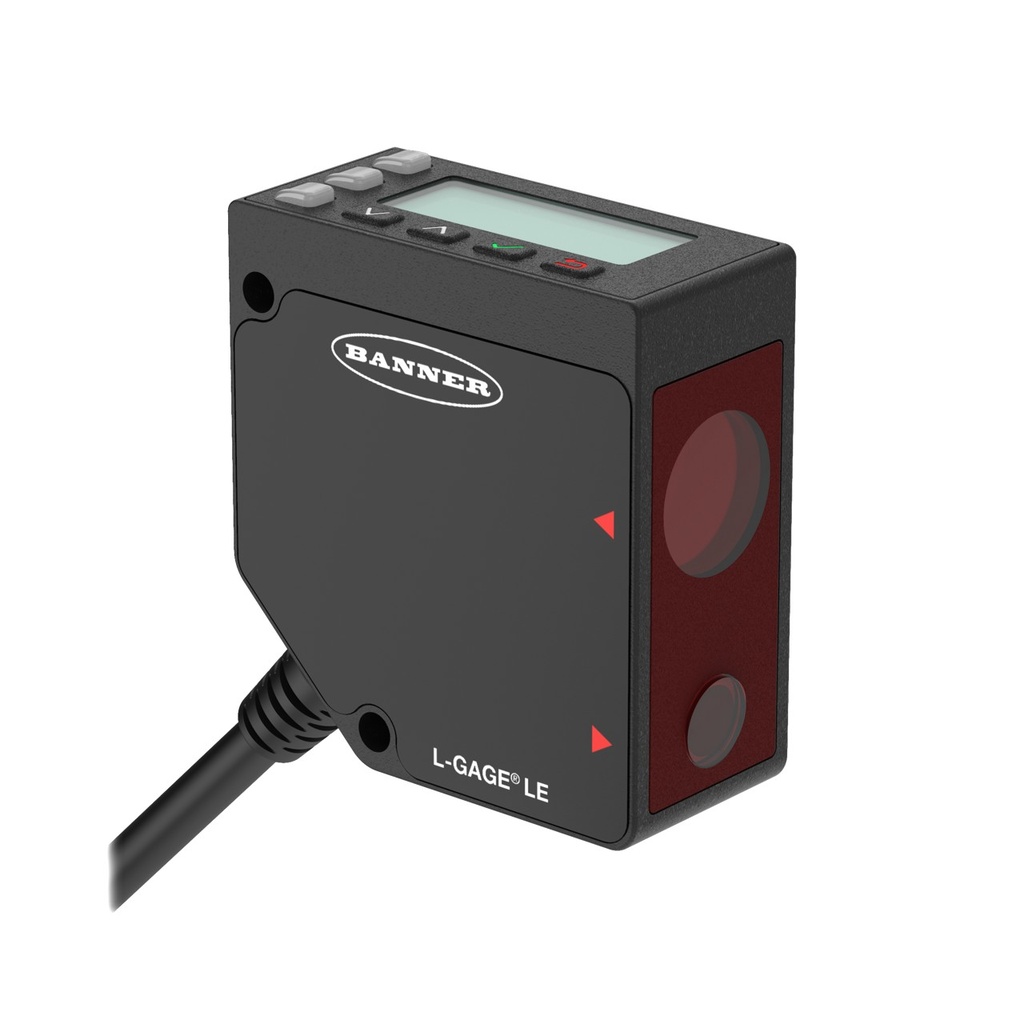

Laser Displacement Sensor (LE550IQ-93235)
Representative photo. Please check item description for details.

Laser Displacement Sensor (LE550IQ-93235)

https://www.branom.com/web/image/product.template/203808/image_1920?unique=c26756c
(0 review)

Features:

    Laser Displacement Sensor; Range:100-1000 mm; Input:12
  • 30 V dc; Output: Analog: 4 -20 mA; Discrete:NPN/PNP Configurable; Intergal Quick-Disconnect; SPRF 26205
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Triangulation
  • Sensing Mode (General): Proximity
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 2
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog
  • Min Response Time: 2 ms
  • Min Sensing Distance: 100 mm
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Feature: Analog Output(s): 4 to 20 mA
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Max Ambient Light: 10000 lux

$ 838.00 838.0 USD $ 838.00

$ 838.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
