Description
Features:

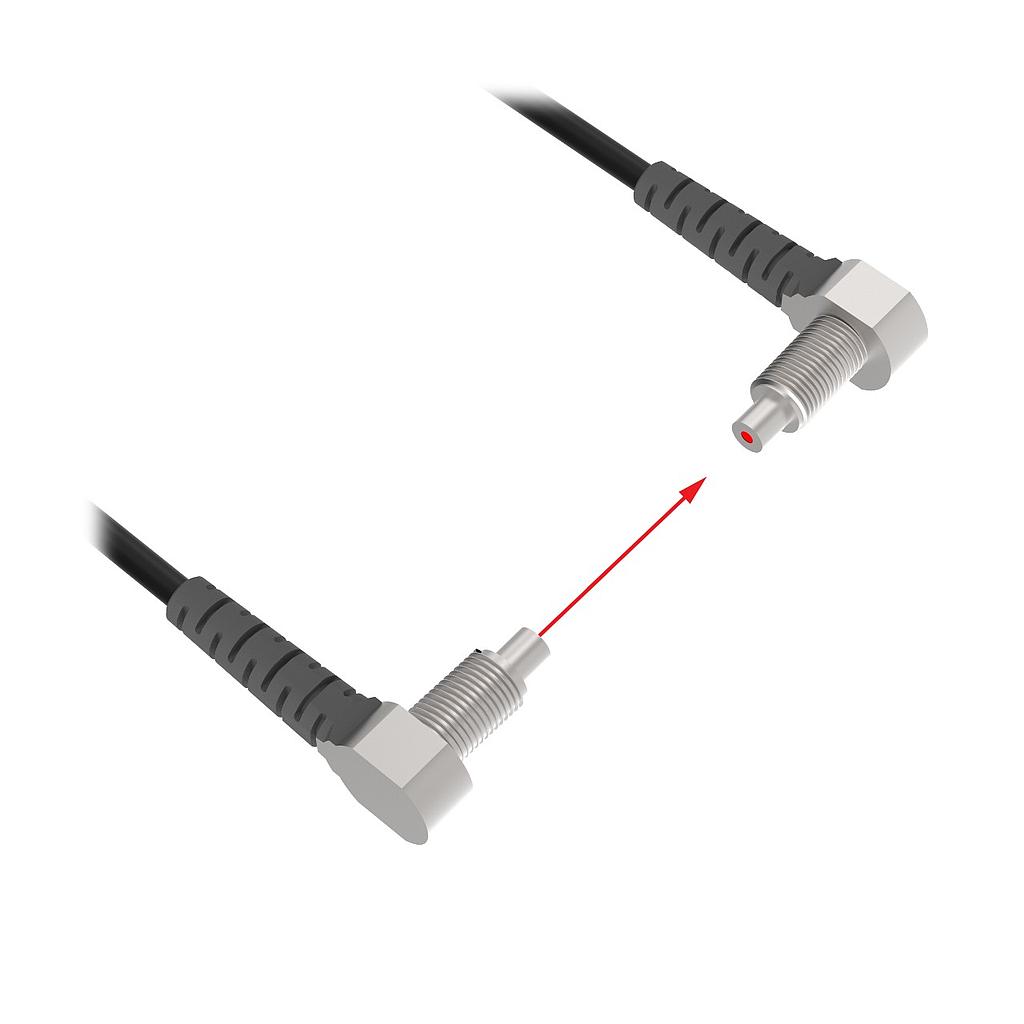

- Plastic Fiber
- Opposed
- Core Dia.1 mm
- Fiber Length 2 m
- Right Angle
- Thread M4
- Standard Bend Radius 25 mm
- Flex Relief
- Free cut
- Vantage Line
- Max Operating Temperature: 70 °C
- Housing Style: Round
- Sensing Mode (Detailed): Reflective
- Sensing Mode (General): Opposed
- Feature: Chemical Resistant: No
- Sensing End Segment 1: Angle
- Tariff Fiber Meters: 4 fbm
- Measured Max Distance: 433 mm
- Min Bend Radius: 25 mm
- Feature: Vacuum Feed Through: None
- Feature: Small Object Detection: No
- Fiber Sensing End Size: M2.6
- Feature: Retractile: No
- Fiber Sensing End Tip: Thread
- Termination: Free Cut
- Sensing End Material (Specific): Stainless Steel
- Feature: Integrated Lens: Yes
- Core Diameter: 1 mm
- Fiber Sheathing Material (Jacket): Polyethylene
- Feature: Extended Range: No
- Feature: Flex Relief: Yes
- Termination Type: Plastic Fiber Sensors
- Fiber Sensing End Size - Mounting Area: M4
- Fiber Length: 2 m
- Fiber Optic Type: Plastic
- Sensing End Segment 2: Thread
- Sensing End Segment 3: Thread
- Beam Exit: Right Angle
- Feature: Liquid Level: No
- Max Range: DF-G3: > 3m to <= 5m
- Min Repeat Bending Endurance: 1000
- Max Distance: DF-G1: 433 mm
- Max Distance: DF-G3: 3362 mm
- Max Distance: DF-G2: 701 mm
- Minimum Bend Radius: 25 mm
