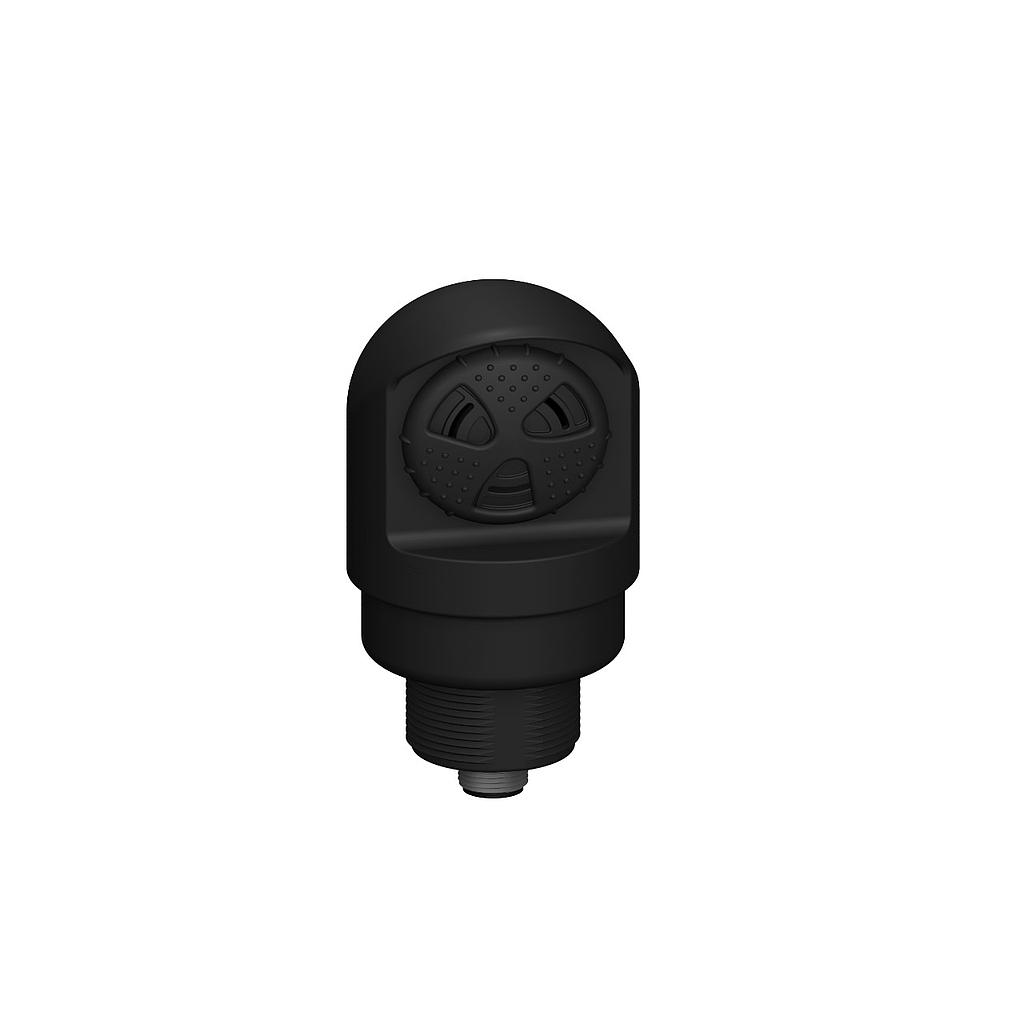

Tower Light: Sealed (TL50AOS4IQ)

https://www.branom.com/web/image/product.template/77545/image_1920?unique=c26756c
(0 review)

Features:

  • Tower Light: Sealed
  • Omnidirectional Staccato Audible Indicator Adjustable
  • Voltage: 12-30 V dc or 24 V ac Environmental Rating: IP67
  • Input: Bimodal
  • Euro 4-pin Integral Connector
    • Power: AC or DC
  • Feature: Display: No
  • Max Current - Audible Alarm (mA): 45 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Max Audible Intensity: 95 dB @ 1 m
  • Supply Voltage: 12-30 VDC/24 VAC
  • Feature: Quick Disconnect: Yes
  • Min Audible Intensity @ 1m: 83 dB
  • Feature: Audible: Audible Only
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 2.1
  • Number of Input Pins/Conductors: 4
  • Input Type: Bimodal (PNP/NPN)
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 10 ms
  • Audible Alarm Type: Adjustable Staccato
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 1
  • Feature: Non-Illuminated: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13

$ 142.00 142.0 USD $ 142.00

$ 142.00

Not Available For Sale
