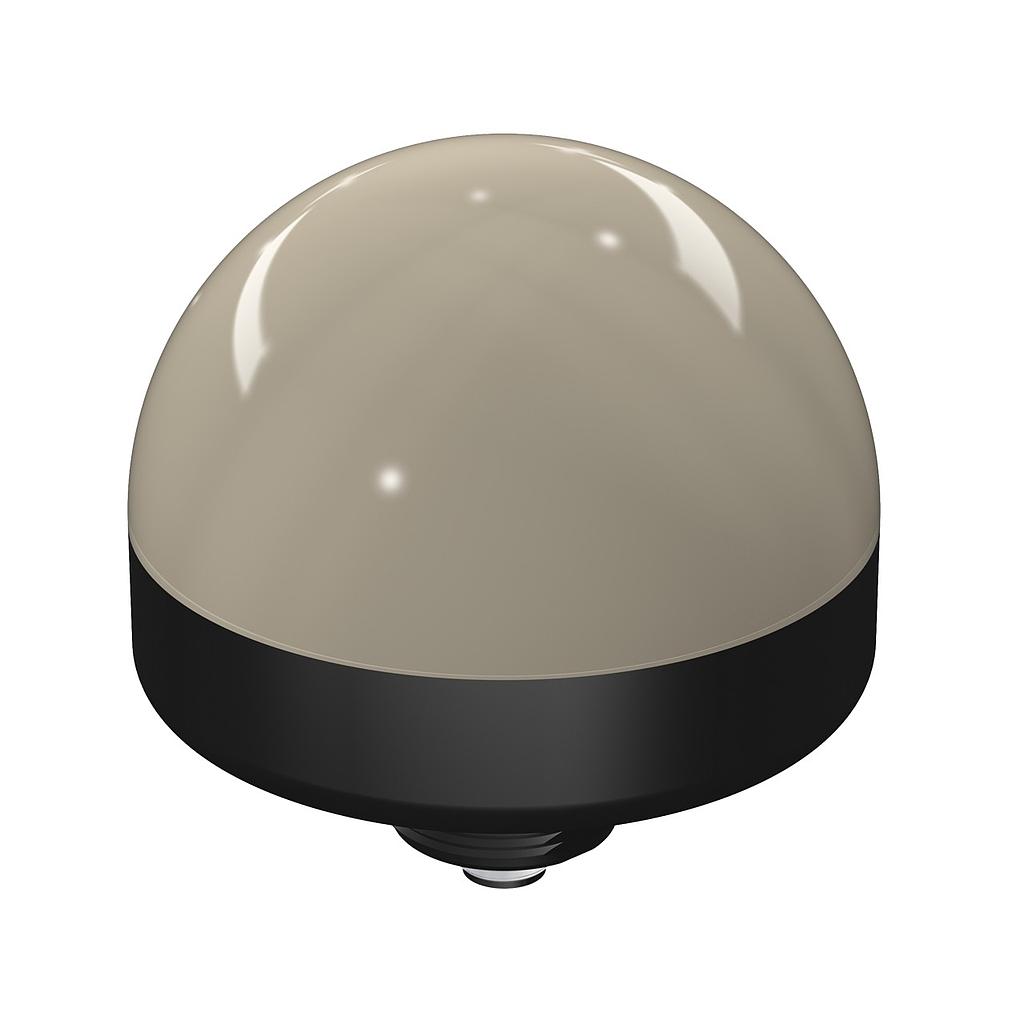

K90 Series EZ-LIGHT (K90LGYRNQ)
Features:
- K90 Series EZ-LIGHT
- 3-Color Indicator
- Voltage: 12-30 V dc
- Environmental Rating: IP67
- Input: NPN
- Colors: Green Yellow Red
- Euro 5-pin Quick-Disconnect
- Power: DC
- Feature: Display: No
- Max Current Color: 475 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Ingress Protection: IP67
- Housing Style: Base Mount - Dome Window
- Housing Material_: Polycarbonate
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 150
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Single Color On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 35
- Lumens Color 3: 65
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 5
- Input Type: NPN
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 75 ms
- Wire Selectable Function: Flashing
- Connection Type: Integral QD
- NEMA / UL: UL 4X/13
