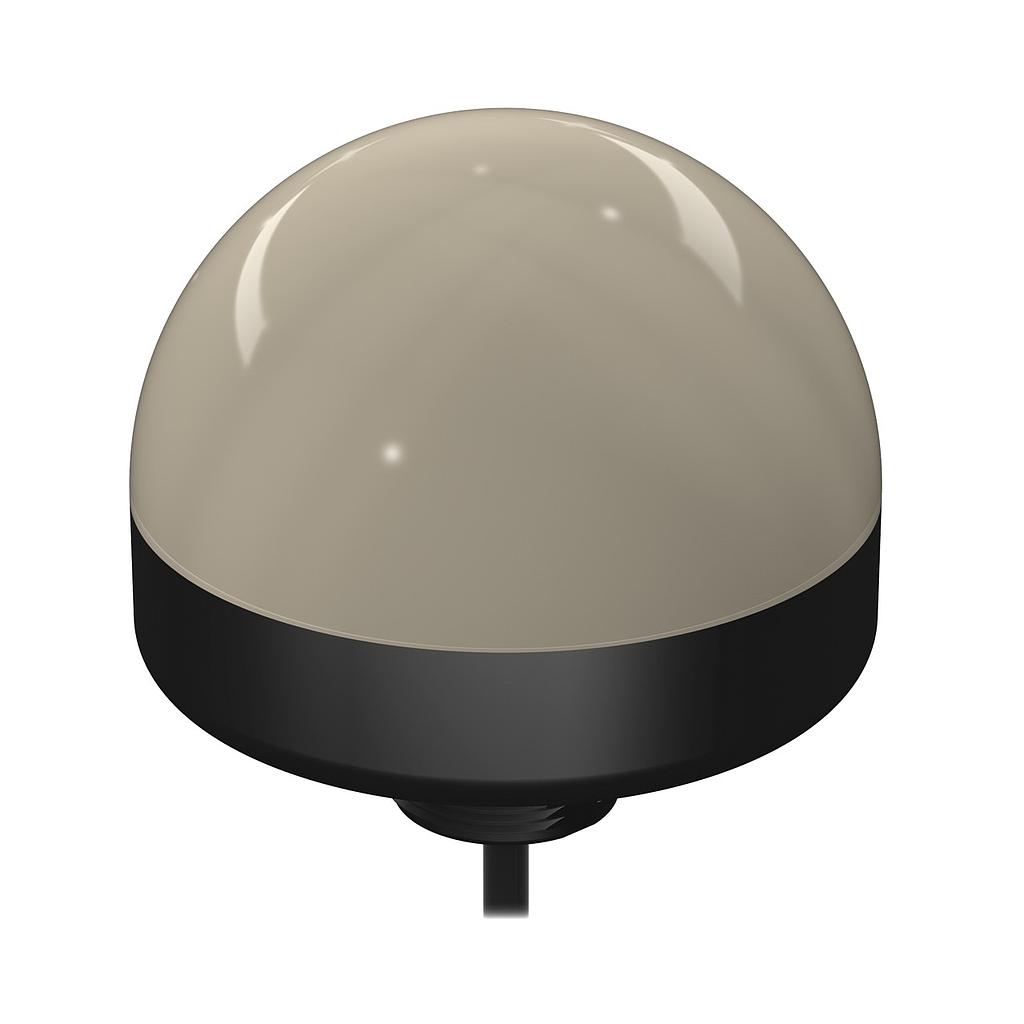

K90 Series EZ-LIGHT (K90LWBGYRP)

https://www.branom.com/web/image/product.template/77444/image_1920?unique=c26756c
(0 review)

Features:

  • K90 Series EZ-LIGHT
  • 5-Color Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP67
  • Input: PNP
  • Colors: White Blue Green Yellow Red
  • 2 m (6.5 ft) Cable
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 475 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Dome Window
  • Housing Material_: Polycarbonate
  • Feature: Indication: Yes
  • Color Option 3: Green
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Blue
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 200
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Cool White
  • Color 1 - Wavelength/Color Temp/Coordinates: 6500K (Cool)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Number of Colors / Segments: 5
  • Color 3 - Wavelength/Color Temp/Coordinates: 525 nm
  • Lumens Color 2: 55
  • Lumens Color 3: 150
  • Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
  • Number of Input Pins/Conductors: 8
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 75 ms
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
  • Color Option 5: Red
  • Color 5 - Wavelength/Color Temp/Coordinates: 625 nm
  • Lumens Color 5: 65
  • Lumens Color 4: 35
  • Wire Selectable Function: Flashing
  • Connection Type: Cable
  • NEMA / UL: UL 4X/13
  • Cord/Cable Length: 2 m

$ 277.00 277.0 USD $ 277.00

$ 277.00

Not Available For Sale
