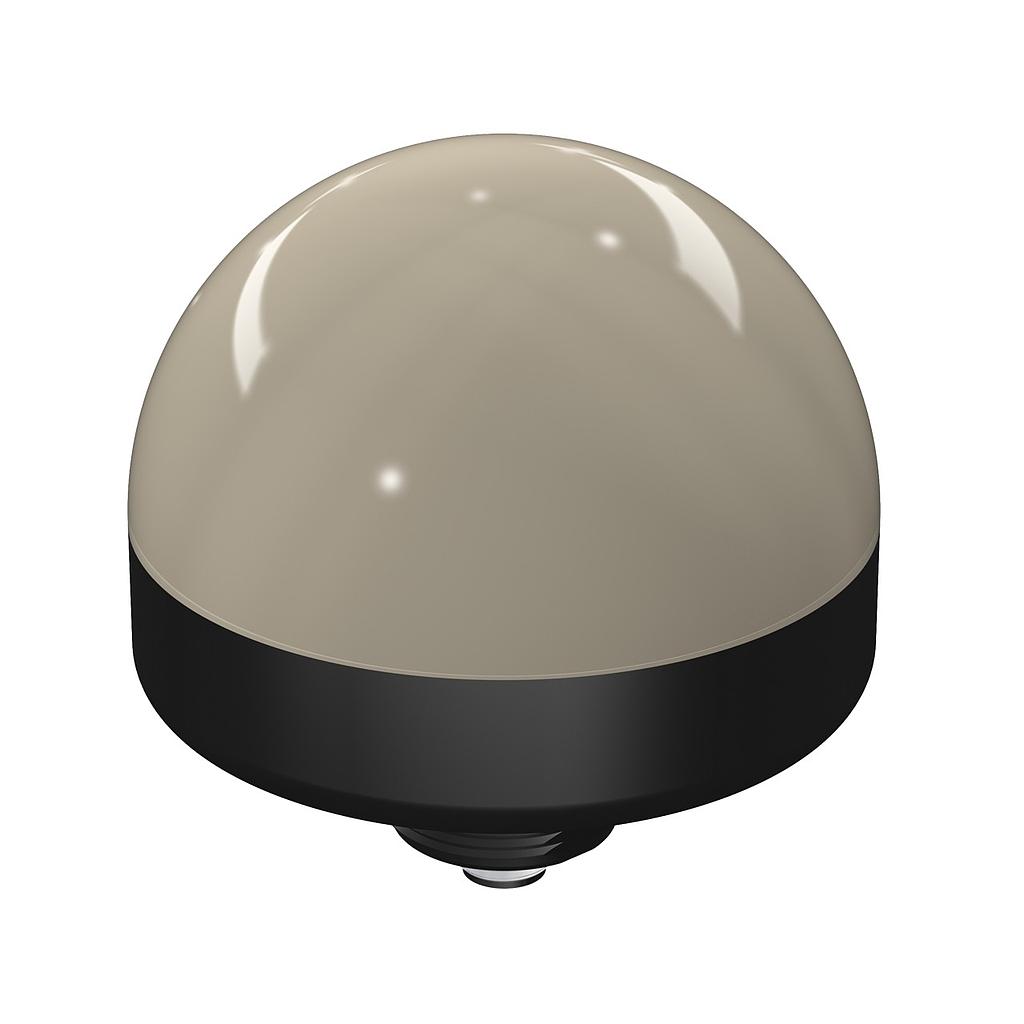

K90 Series EZ-LIGHT (K90LYPQ)

https://www.branom.com/web/image/product.template/77423/image_1920?unique=c26756c
(0 review)

Features:

  • K90 Series EZ-LIGHT
  • 1-Color Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP67
  • Input: PNP
  • Colors: Yellow
  • Euro 5-pin Quick-Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 475 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Dome Window
  • Housing Material_: Polycarbonate
  • Feature: Indication: Yes
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 35
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 75 ms
  • Wire Selectable Function: Flashing
  • Connection Type: Integral QD
  • NEMA / UL: UL 4X/13

$ 154.00 154.0 USD $ 154.00

$ 154.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • K90 Series EZ-LIGHT
    • 1-Color Indicator
    • Voltage: 12-30 V dc
    • Environmental Rating: IP67
    • Input: PNP
    • Colors: Yellow
    • Euro 5-pin Quick-Disconnect
      • Power: DC
    • Feature: Display: No
    • Max Current Color: 475 mA
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 50 °C
    • Ingress Protection: IP67
    • Housing Style: Base Mount - Dome Window
    • Housing Material_: Polycarbonate
    • Feature: Indication: Yes
    • Supply Voltage: 12-30 VDC
    • Feature: Quick Disconnect: Yes
    • Lumens Color 1: 35
    • Color Technology: Standard LED
    • Feature: Audible: No
    • Color Option 1: Yellow
    • Color 1 - Wavelength/Color Temp/Coordinates: 590 nm
    • Color Input Control: Individual (One wire/color, same number of colors as input wires)
    • Animation Option 1: Solid On
    • Quick Disconnect Type: M12
    • Number of Colors / Segments: 1
    • Number of Input Pins/Conductors: 5
    • Input Type: PNP
    • Mounting Thread: M30 x 1.5
    • Max Input Response Time (ms): 75 ms
    • Wire Selectable Function: Flashing
    • Connection Type: Integral QD
    • NEMA / UL: UL 4X/13
