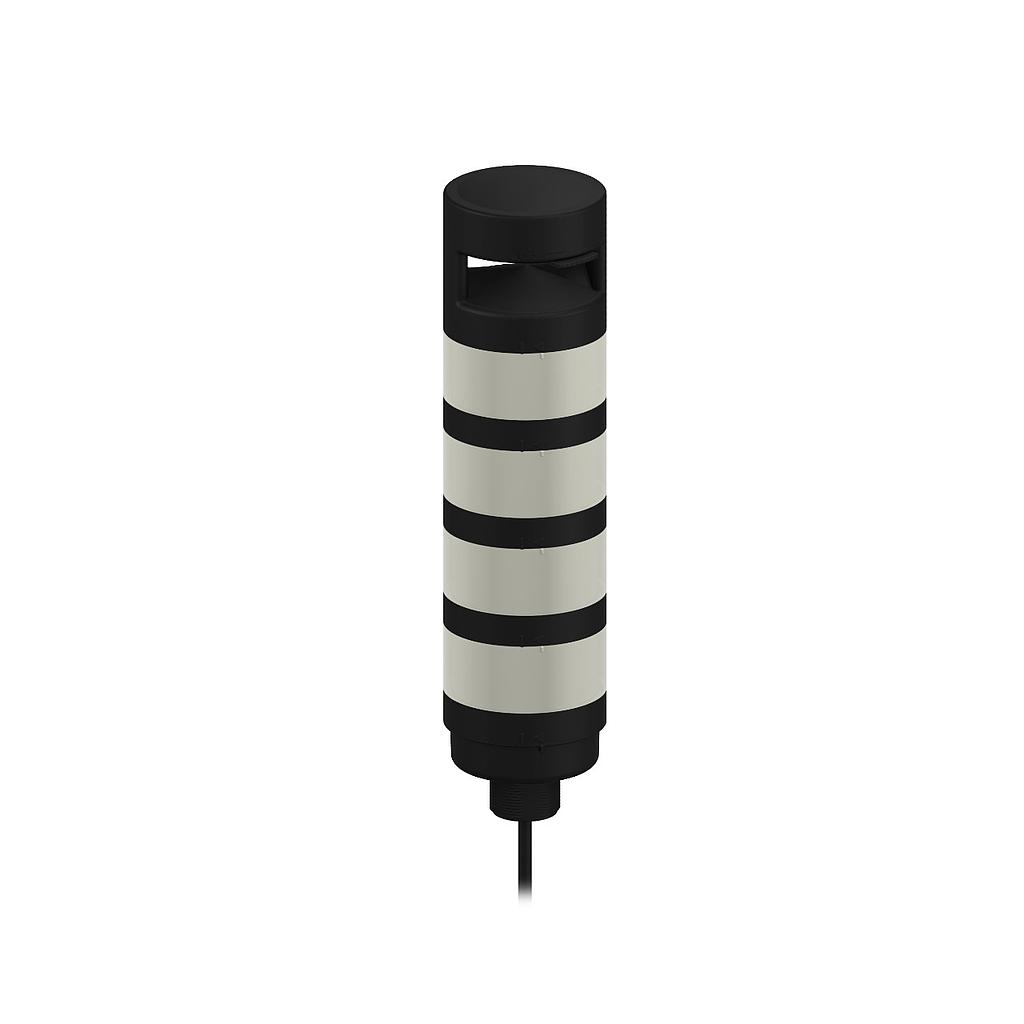

TL70 Tower Light (TL70BGYRA)

https://www.branom.com/web/image/product.template/74795/image_1920?unique=c26756c
(0 review)

Features:

  • TL70 Tower Light
  • Black Housing: 4-Color Audible Indicator
  • Voltage: 12-30 V dc
  • Environmental Rating: IP65
  • Input: Bimodal
  • Colors: Blue Green Yellow Red
  • 2 m (6.5 ft) Cable
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 420 mA
  • Max Current - Audible Alarm (mA): 30 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 318.3 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Color Option 3: Yellow
  • Max Audible Intensity: 92 dB @ 1 m
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 32
  • Animation Option 3: Dip-Switch Controlled
  • Min Audible Intensity @ 1m: 84 dB
  • Color Technology: Standard LED
  • Feature: Audible: Yes
  • Color Option 1: Blue
  • Animation Option 2: Dip-Switch Controlled
  • Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Dip-Switch Controlled
  • Audible Operating Frequency (kHz): 2.6
  • Number of Colors / Segments: 4
  • Color 3 - Wavelength/Color Temp/Coordinates: 590 nm
  • Lumens Color 2: 92
  • Lumens Color 3: 22
  • Product Size (mm): 70 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 525 nm
  • Number of Input Pins/Conductors: 8
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 180 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Multitone
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Red
  • Color 4 - Wavelength/Color Temp/Coordinates: 625 nm
  • Lumens Color 4: 40
  • Number of Tower Light Segments: 5
  • Animation Option 4: Dip-Switch Controlled
  • Connection Type: Cable
  • Cord/Cable Length: 2 m

$ 504.00 504.0 USD $ 504.00

$ 504.00

Not Available For Sale

    This combination does not exist.

    Contact Us
