Mini-Beam Namur: Polarized Retro (MIAD9LVAG W/50)

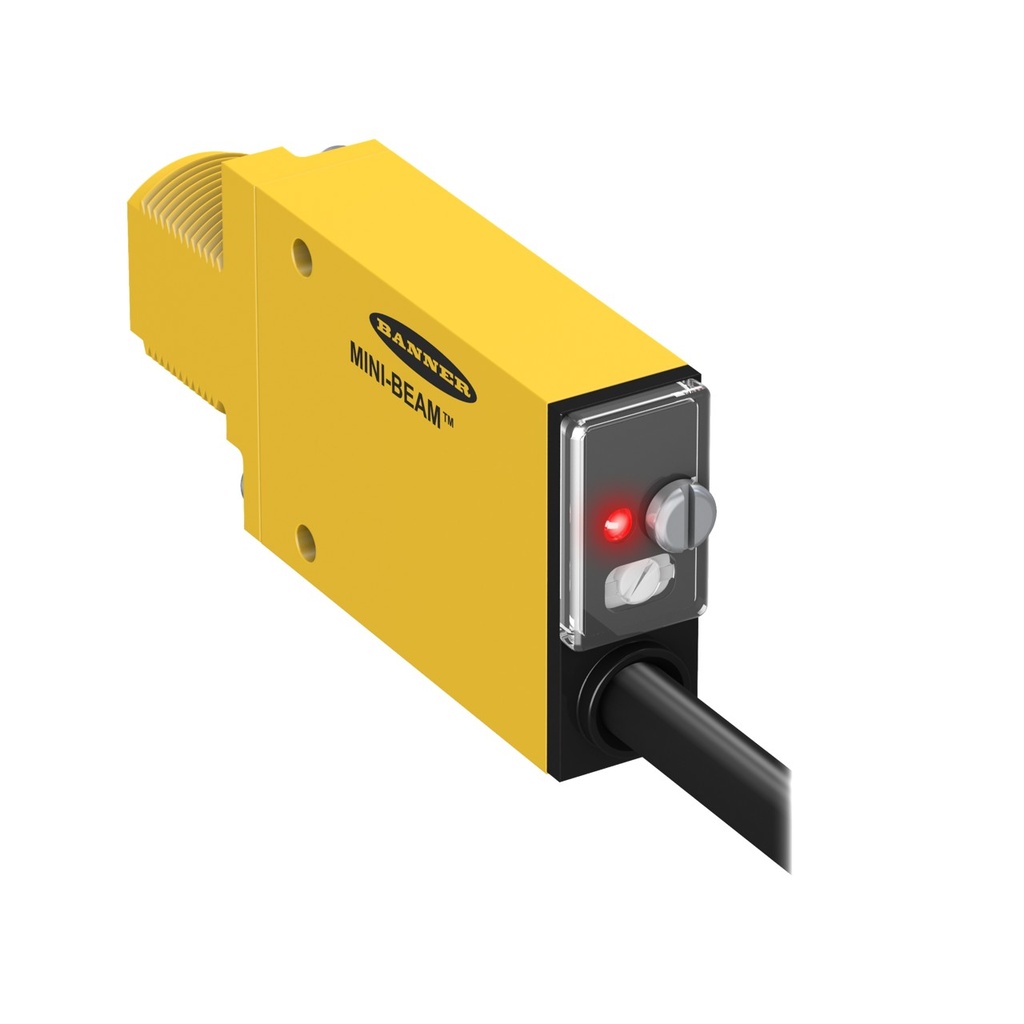

Representative photo. Please check item description for details.

Mini-Beam Namur: Polarized Retro (MIAD9LVAG W/50)

https://www.branom.com/web/image/product.template/203870/image_1920?unique=c26756c
(0 review)

Features:

    MINI-BEAM NAMUR: Polarized Retro; Range: 50 mm to 2 m; Input: 5-15 V dc; Output: NAMUR; 15.5 m (50 ft) Cable
    • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 5-15 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Output Response Time: 5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: Yes
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 15 m
  • Indicator Type: LED

$ 429.00 429.0 USD $ 429.00

$ 429.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
