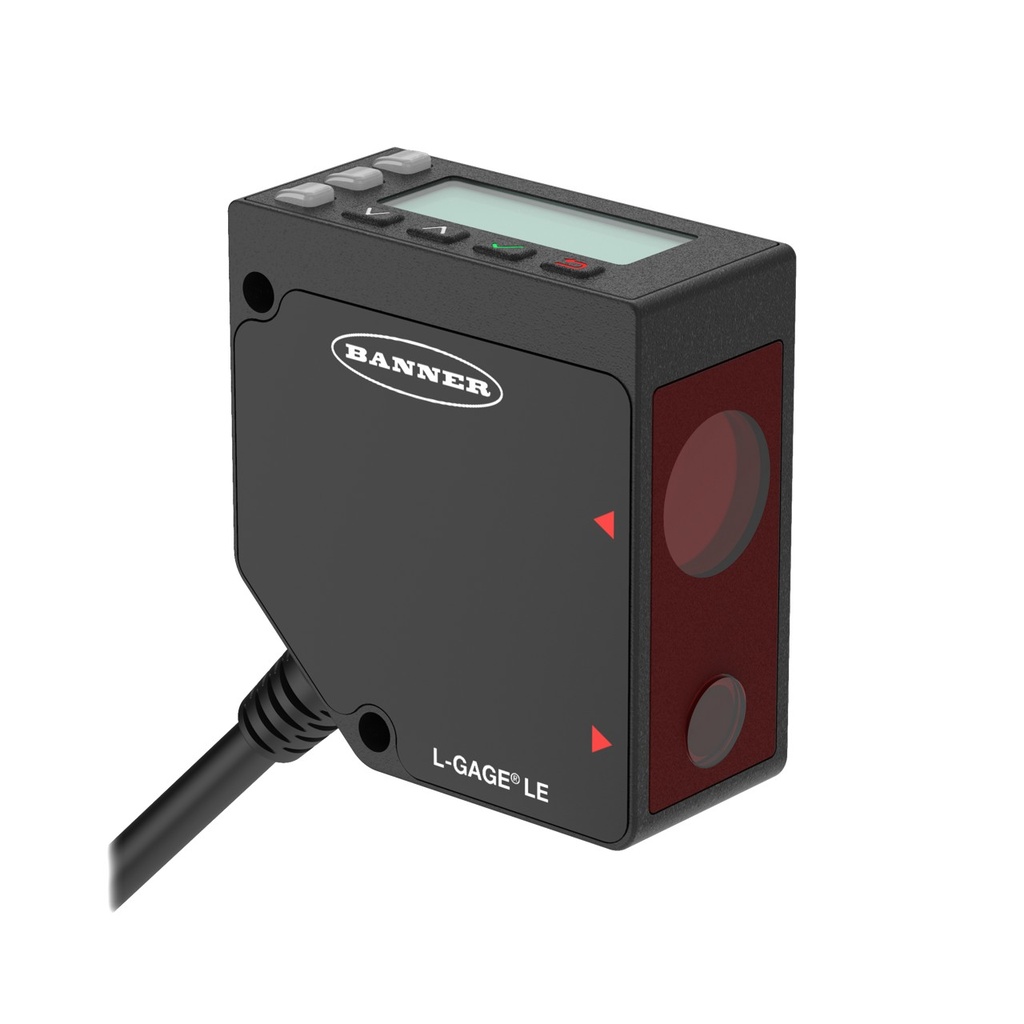

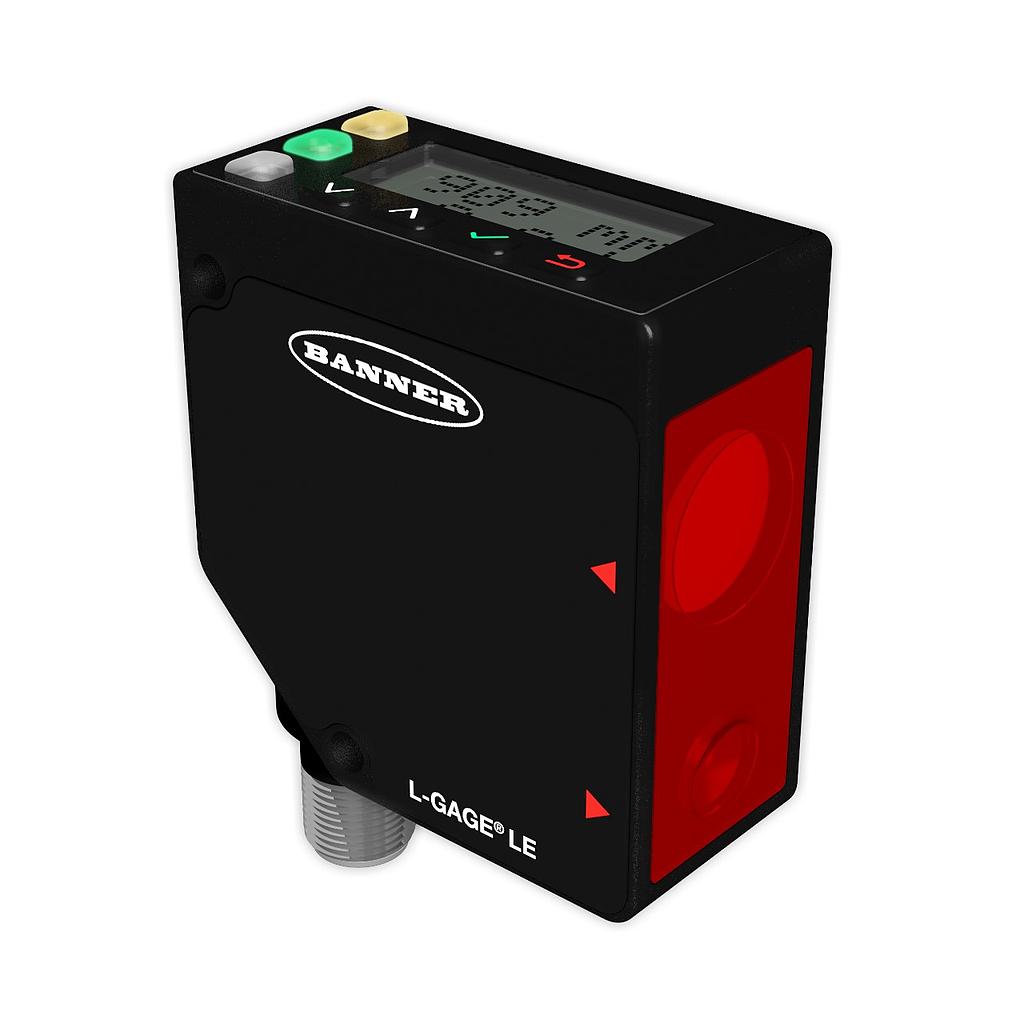

Laser Displacement Sensor (LE250U W/30)

https://www.branom.com/web/image/product.template/72570/image_1920?unique=c26756c
(0 review)

Features:

  • Laser Displacement Sensor
  • Range: 100-400 mm
  • Input:12-30 V dc
  • Output: Analog: 0-10 V
  • Discrete: NPN/PNP configurable
  • 9 m (30 ft) Cable
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 400 mm
  • Sensing Mode (Detailed): Triangulation
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Zinc Alloy Die-Cast
  • Laser Classification: Class 2
  • Analog Output: 0 to 10 VDC
  • Feature: Quick Disconnect: No
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog & Discrete
  • Min Response Time: 2 ms
  • Min Sensing Distance: 100 mm
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 9 m
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Max Ambient Light: 10000 lux

$ 1,288.00 1288.0 USD $ 1,288.00

$ 1,288.00

Not Available For Sale
