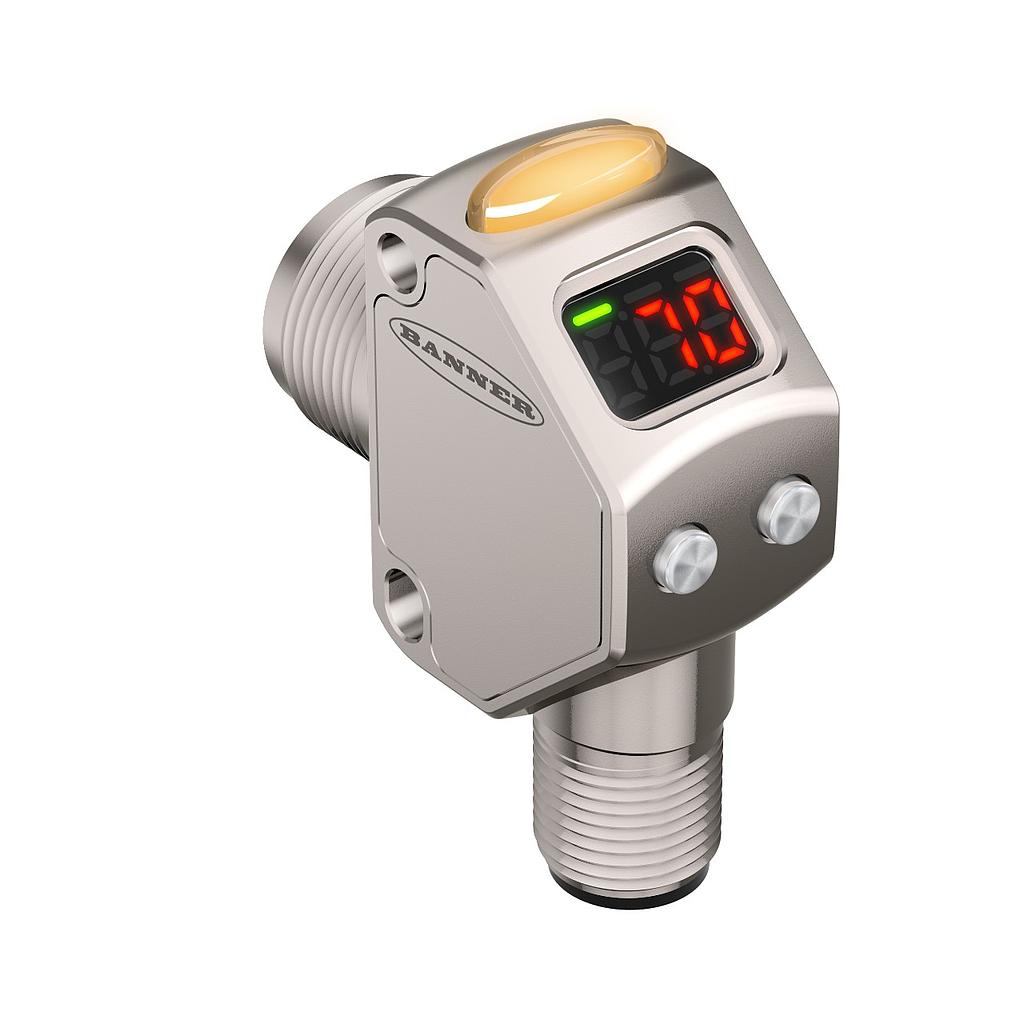

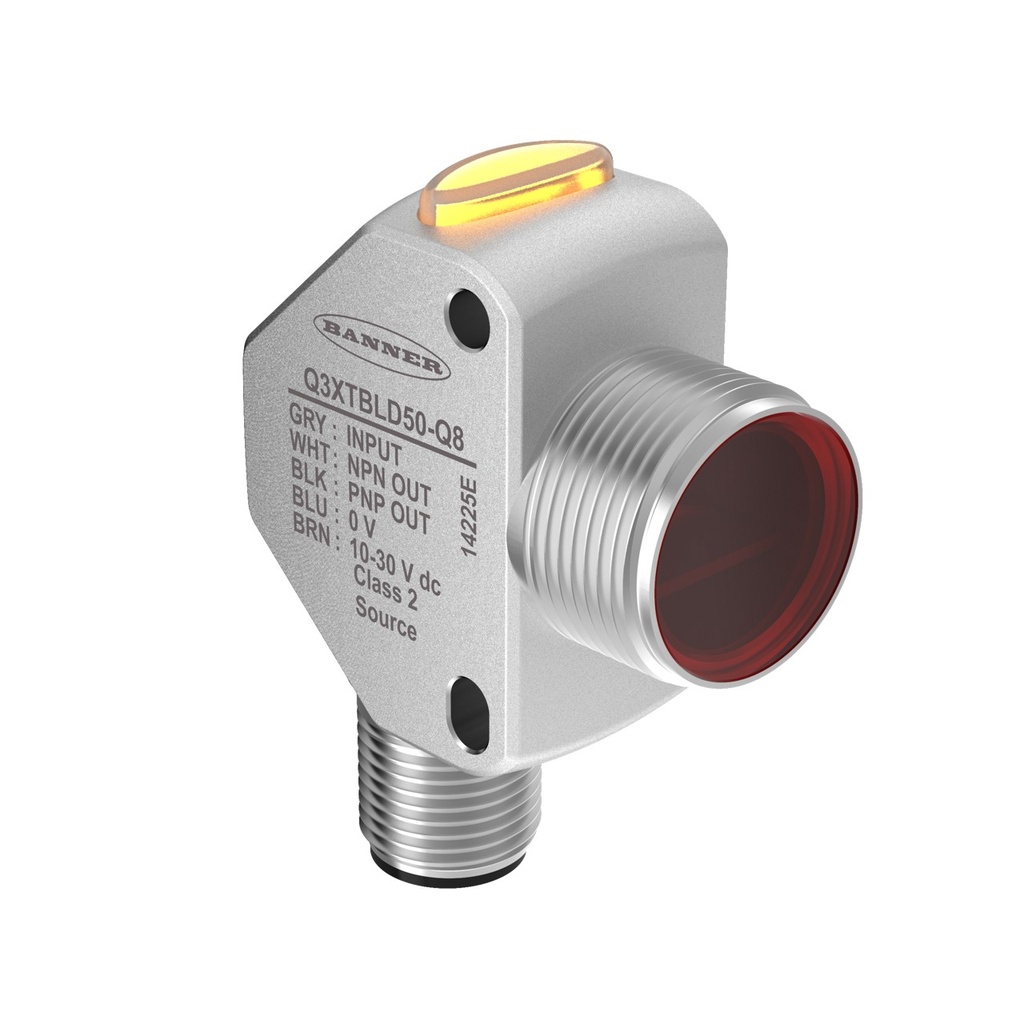

Q3XT Series: Laser Diffuse with BGS (Q3XTBLD50-Q8)

https://www.branom.com/web/image/product.template/72540/image_1920?unique=c26756c
(0 review)

Features:

  • Q3XT Series: Laser Diffuse with BGS
  • Range: 50 mm
  • Input: 10-30 V dc
  • Outputs: Bipolar: 1 NPN
  • 1 PNP
  • Connection: Euro M12 5-pin Integral Connector
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67/68/69
  • Repeatability (µs): 60
  • Sensing Beam: Visible Red Laser
  • Sensing Beam Wavelength: 655
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 50 mm
  • Sensing Mode (Detailed): Diffuse/Background Suppression
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Nickel-Plated
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 2
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 0.25 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Indicator Type: LED

$ 323.00 323.0 USD $ 323.00

$ 323.00

Not Available For Sale
