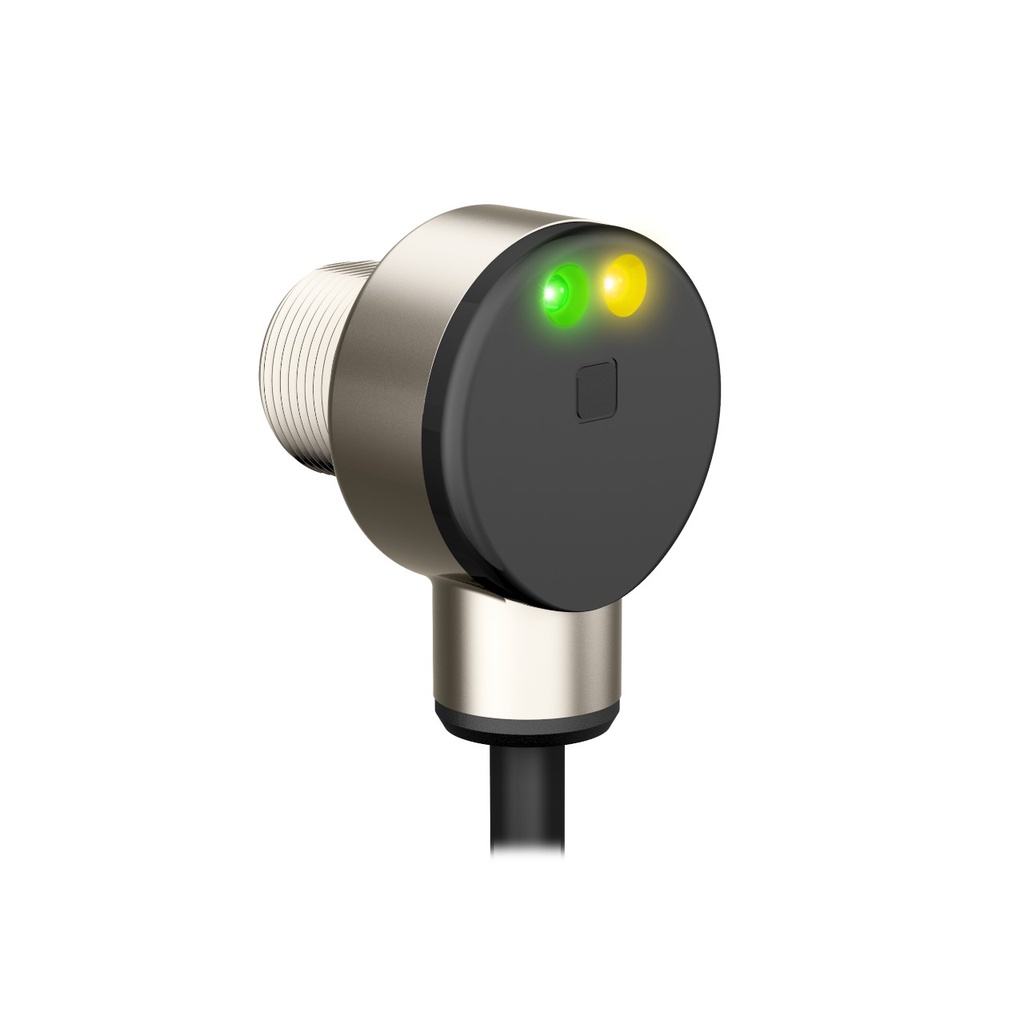

Representative photo. Please check item description for details.

EZ BEAM TM18: Fixed Field Background Suppression (TM18AP6FF50-91153)

https://www.branom.com/web/image/product.template/72218/image_1920?unique=c26756c
(0 review)

Features:

  • EZ BEAM TM18: Fixed Field Background Suppression
  • Range: 50 mm
  • Input:10-30 V dc
  • Outputs: PNP Light Operate
  • 6.1m (20 ft.) Northwire Cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 185
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 50 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Die-Cast with Nickel-Plating
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 3 ms ON/1.5 ms OFF
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Other
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
