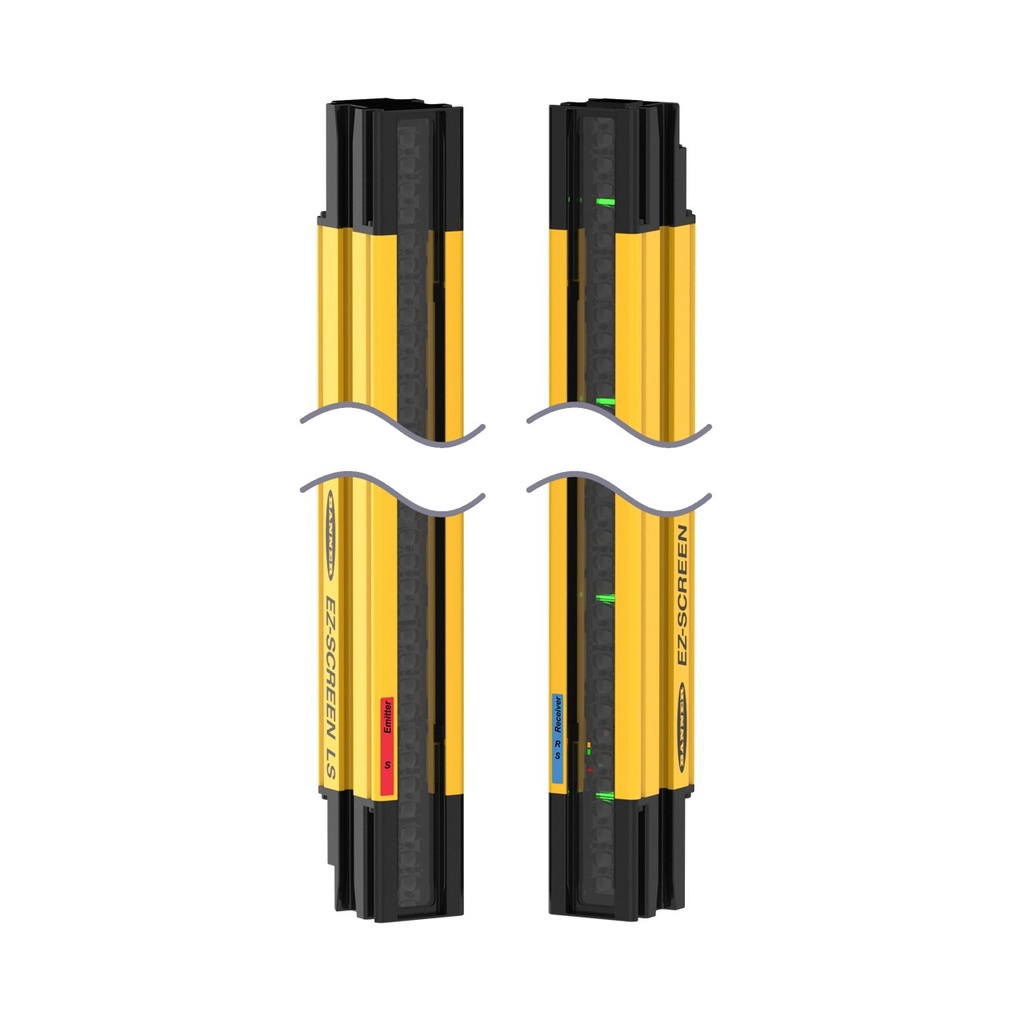

EZ-SCREEN LS Cascade, Pair, SLLCP40-420P88

Representative photo. Please check item description for details.

EZ-SCREEN LS Cascade, Pair, SLLCP40-420P88

(0 review)

Features:

Defined Area Height Range: > 350 - <= 650 mm

Feature: Low Profile: Yes

Supply Current: 127 mA Typical

Min Operating Temperature: 0 °C

Max Operating Temperature: 55 °C

Ingress Protection: IP65/67

Housing Material_: Aluminum

Operating Voltage: 24 VDC +/- 15%

Physical Dimensions: 36 x 45 mm

Feature: Cascade: Yes

PL Rating: e

Vibration: 10-55 Hz at 0.35 mm

SIL Rating: SIL3; CL3

Recovery Time: 32 / 110 ms

Feature: ESD Safe: No

Feature: Test Input: No

OSSD Rating: 24 VDC @ 0.5 A each

System Type: Emitter/Receiver Pair

Operating Distance: 0.1 - 12 m

Response Time: 8.2 ms

Effective Aperture Angle: Type 4 Per IEC 61496-2

Feature: Reduced Resolution: Yes

Feature: End-to-End Sensing: No

Number of Pins (Receiver/Emitter): 8

Feature: Fault Output: Yes

Defined Area Height: 420 mm

Feature: Auxiliary Output: No

Electrical Safety Class: III

Shock: 10g at 16ms (6000 cycles)

Feature: Short Protection: Yes

External Monitoring Device: 1 Channel

Feature: Fixed Blanking: Yes

Safety Level: Type 3

Feature: Integral Muting: No

Scan Code: Selectable

Trip/Latch Output: Trip

Housing Finish: Black Anodized

Max Operating Range: > 8 to <= 20 m

Connector Type: M12 Pigtail (Yellow)

Finish Material: Yellow Polyester

$ 1,598.00 1598.0 USD $ 1,598.00

$ 1,598.00

This combination does not exist.

Add to cart Buy now
