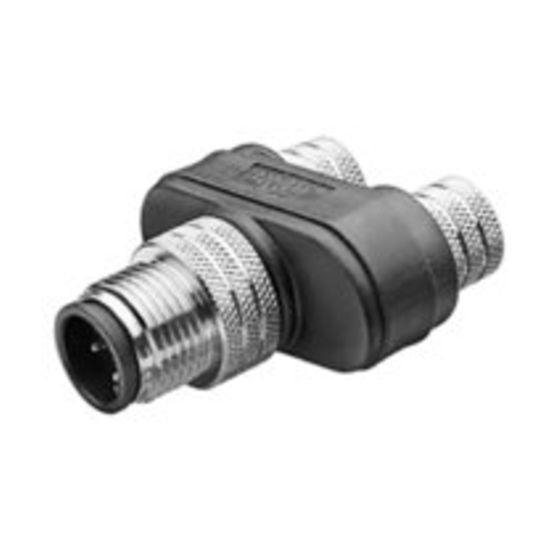

Representative photo. Please check item description for details.
AVENTICS CON-AP Series Y-Plug Connector, 48 VDC, Polyurethane, 5-Pin M12x1 Plug to 5-Pin M8x1 Socket
The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Type: Adapters & contact bridges
- Shielding: unshielded
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 90 °C
- Max. current: 4 A
- Protection class: IP67
- Electrical connection 1: Plug
- Electrical connection 1: M12x1
- Number of poles: 5-pin
- Coding: A-coded
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection: Socket
- Electrical connection 2: M12x1
- Number of poles: 5-pin
- Coding: A-coded
- Cable exit: straight
- Cable exit angle: 180°
- Operational↩voltage: 48 V
- Operational↩voltage: AC/DC
- Weight: 0.029 kg
- Housing material: Polyurethane
- Seal material: Fluorocaoutchouc:
The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Type: Adapters & contact bridges
- Shielding: unshielded
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 90 °C
- Max. current: 4 A
- Protection class: IP67
- Electrical connection 1: Plug
- Electrical connection 1: M12x1
- Number of poles: 5-pin
- Coding: A-coded
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection: Socket
- Electrical connection 2: M12x1
- Number of poles: 5-pin
- Coding: A-coded
- Cable exit: straight
- Cable exit angle: 180°
- Operational↩voltage: 48 V
- Operational↩voltage: AC/DC
- Weight: 0.029 kg
- Housing material: Polyurethane
- Seal material: Fluorocaoutchouc:
