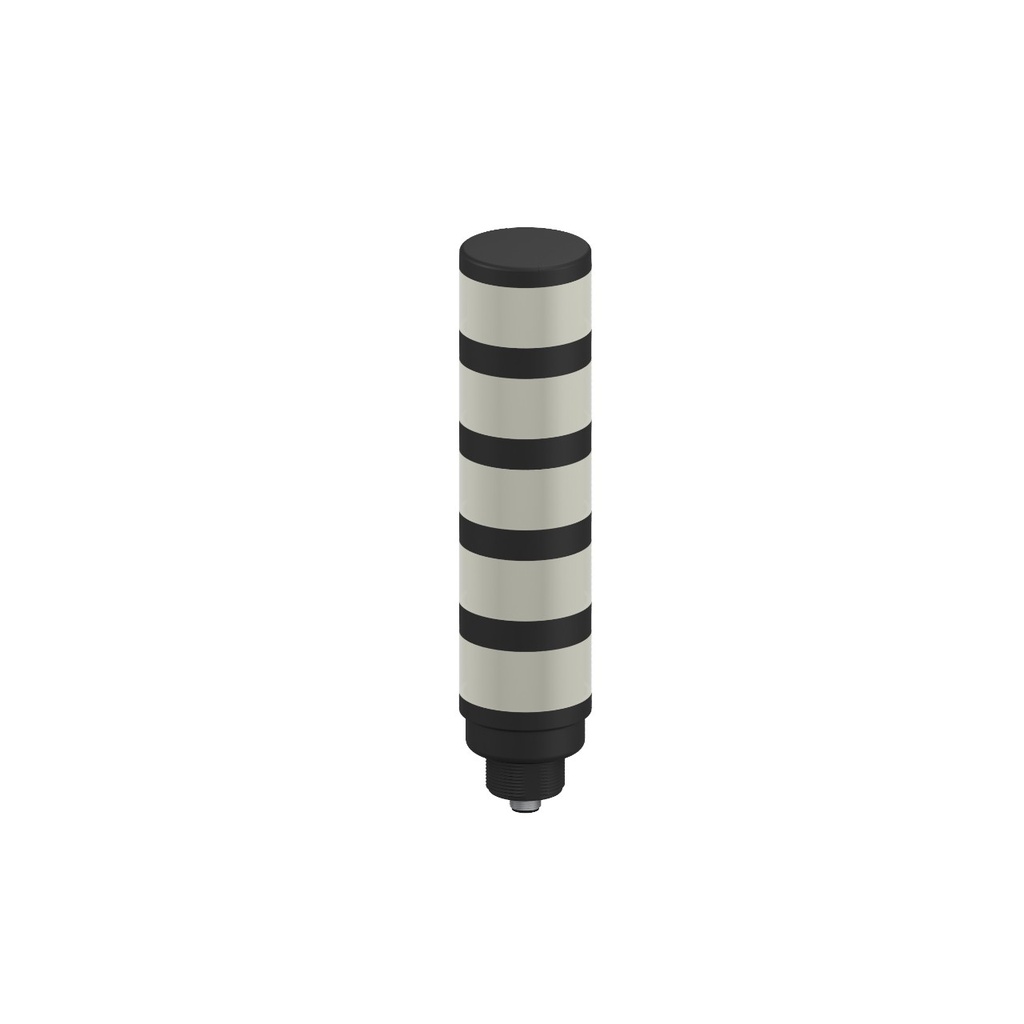

Representative photo. Please check item description for details.

Tower Light: Kit includes qty.1 TL50WGBYRQ-80832 (TL50WGBYRQ-88350)

https://www.branom.com/web/image/product.template/64354/image_1920?unique=c26756c
(0 review)

Features:

  • Tower Light: Kit includes qty.1 TL50WGBYRQ-80832
  • qty. 1 Bracket SMBAMSTL50M30
  • qty. 1 Cordset MQDEC-801-12M23
    • Power: AC or DC
  • Feature: Display: No
  • Max Current Color: 45 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: ABS
  • Feature: Indication: Yes
  • Color Option 3: Blue
  • Supply Voltage: 18-30 VDC/24 VAC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 21
  • Animation Option 3: Solid On
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Cool White
  • Animation Option 2: Solid On
  • Color 1 - Wavelength/Color Temp/Coordinates: 6000K
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 5
  • Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
  • Lumens Color 2: 23
  • Lumens Color 3: 4.5
  • Color 2 - Wavelength/Color Temp/Coordinates: 528 nm
  • Number of Input Pins/Conductors: 8
  • Input Type: Bimodal (PNP/NPN)
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 10 ms
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
  • Color Option 5: Red
  • Color 5 - Wavelength/Color Temp/Coordinates: 625 nm
  • Lumens Color 5: 7.5
  • Lumens Color 4: 5
  • Number of Tower Light Segments: 5
  • Animation Option 5: Solid On
  • Animation Option 4: Solid On
  • Connection Type: Integral QD
  • NEMA / UL: NEMA/UL 13

500.00 500.0 USD 500.00

500.00

Not Available For Sale
