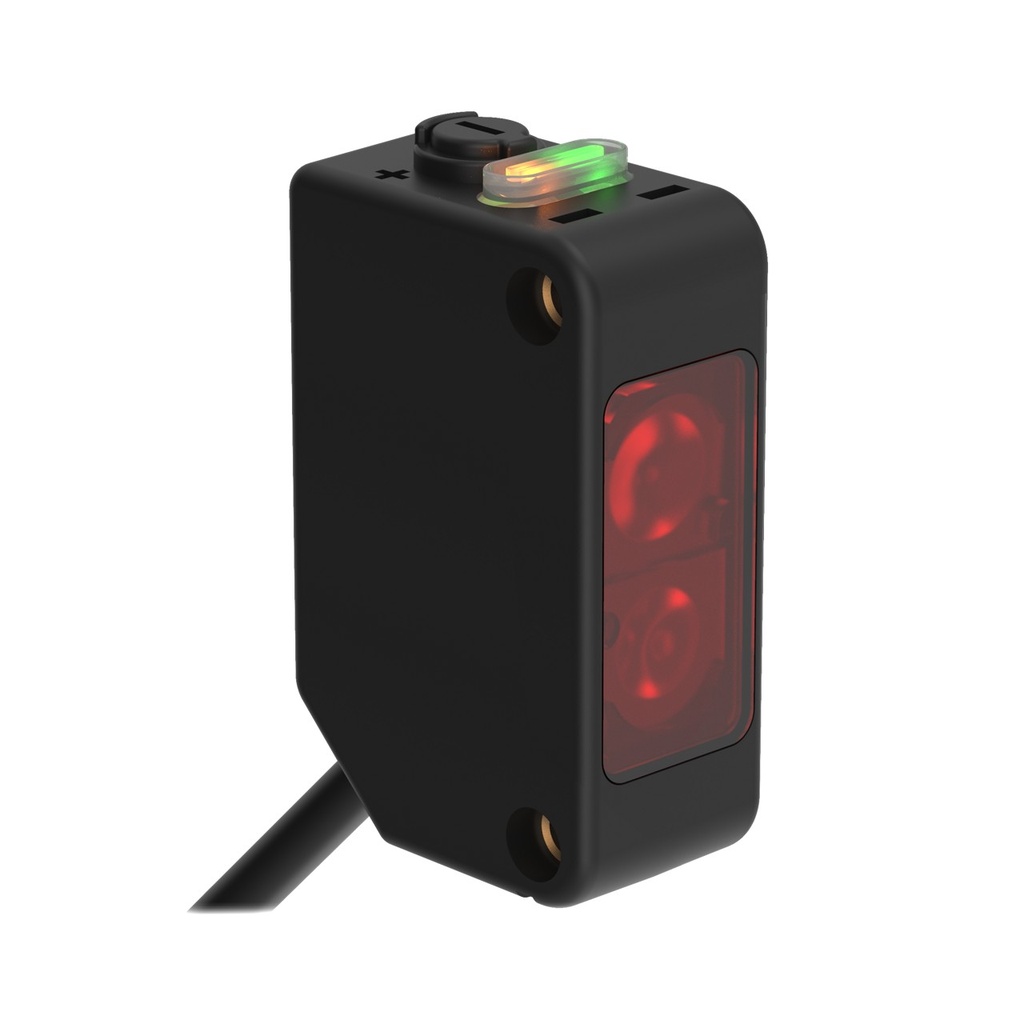

World-Beam Q20 Series: Polarized Retro (Q20RNLP-88296)
Representative photo. Please check item description for details.

World-Beam Q20 Series: Polarized Retro (Q20RNLP-88296)

https://www.branom.com/web/image/product.template/204057/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Solid State NPN; D.O.; Molex 3-pin 17.5 in Pigtail
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: N/A
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 655
  • Housing Style: Rectangular
  • Max Sensing Distance: 4000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: Molex
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 0.8 ms
  • Operation: Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 135.00 135.0 USD $ 135.00

$ 135.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

      WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Solid State NPN; D.O.; Molex 3-pin 17.5 in Pigtail
      • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Lens Material: N/A
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 155
    • Sensing Beam: Visible Red LED
    • Sensing Beam Wavelength: 655
    • Housing Style: Rectangular
    • Max Sensing Distance: 4000 mm
    • Sensing Mode (Detailed): Polarized
    • Sensing Mode (General): Retroreflective
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: Molex
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 3
    • Output Response Time: 0.8 ms
    • Operation: Dark Operate
    • Adjustments: Potentiometer
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
