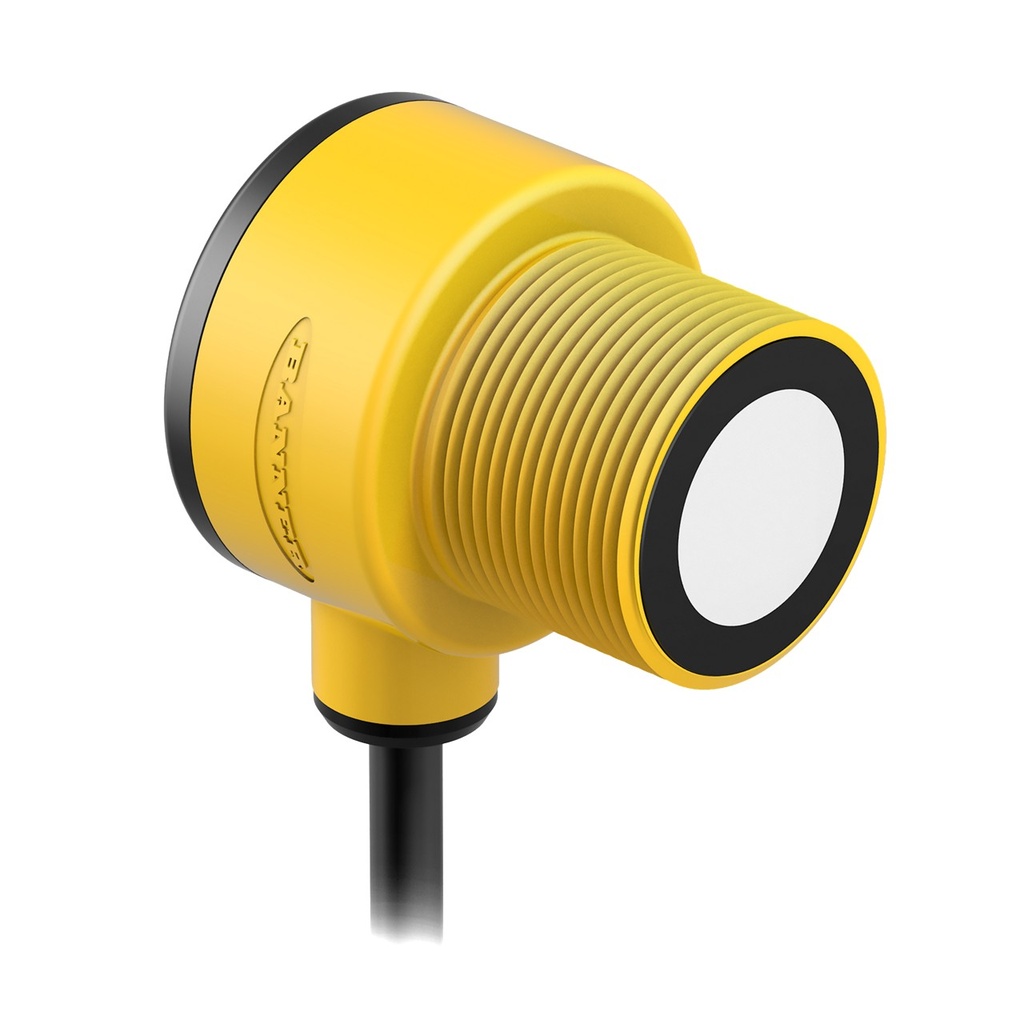

Representative photo. Please check item description for details.

T30UX Series w/ Analog Output (T30UXIAQP-88267 W/13FT)

https://www.branom.com/web/image/product.template/64313/image_1920?unique=c26756c
(0 review)

Features:

  • T30UX Series w/ Analog Output
  • Range: 100 mm to 1 m
  • Input: 10 to 30V dc
  • Analog Output: 4 to 20 mA
  • 100mm to 1m Preset Window limits
  • Euro 4-pin 4m (13 ft) Pigtail QD
  • No Pushbuttons
  • Max Off-State Leakage Current (µA): <10 µA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 90 mA
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular w/ Threaded Mount
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Barrel Diameter: 30
  • Min Response Time: 48 ms
  • Feature: Ultrasonic: Yes
  • Output Saturation Voltage PNP Outputs: < 1.0 V @ 10 mA / <1.5 V @ 100 mA
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 100 mm
  • Min Window Size: 10 mm
  • Max Measurement Range: 500-1000 mm
  • Output Protection: Protected against short circuit conditions
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 4 m
  • Barrel Thread: M30
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED

$ 688.00 688.0 USD $ 688.00

$ 688.00

Not Available For Sale
