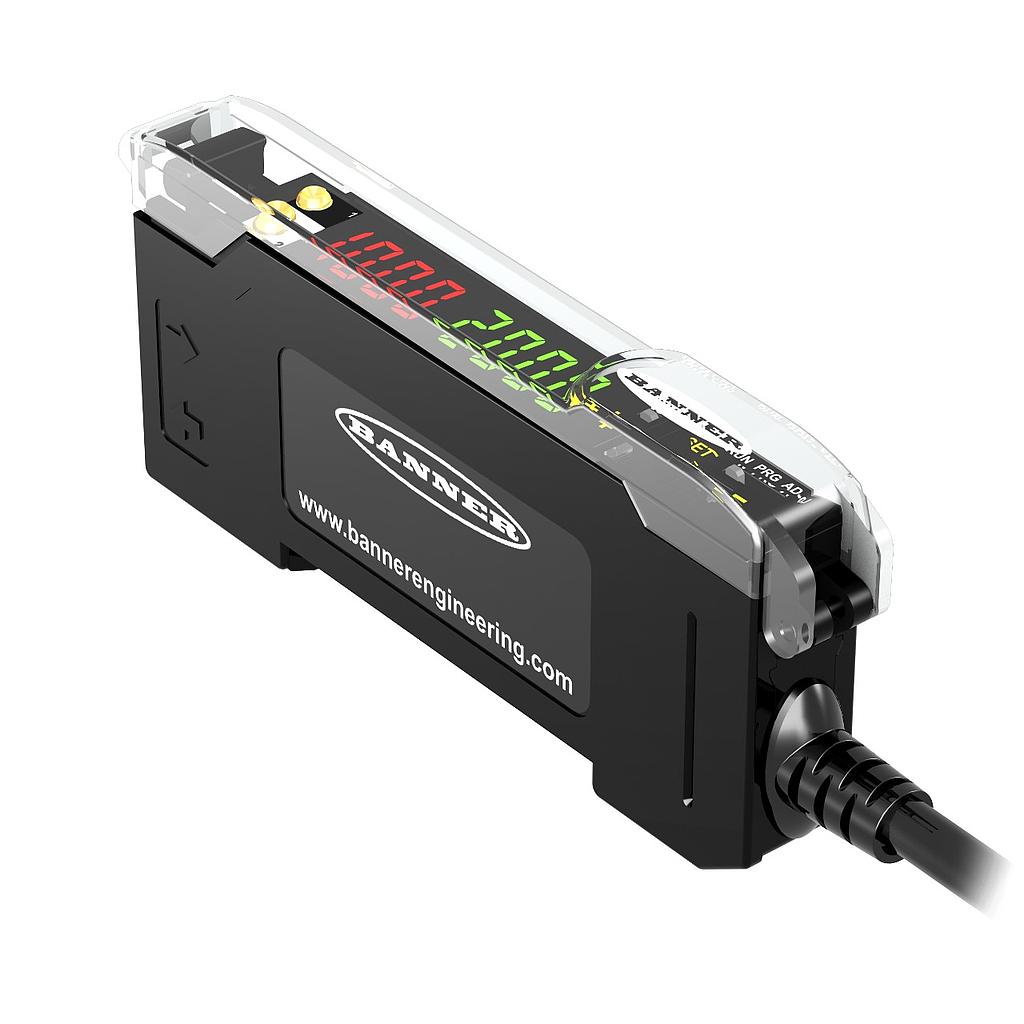

DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier (DF-G3LIR-PS-2M)

https://www.branom.com/web/image/product.template/60840/image_1920?unique=c26756c
(0 review)

Features:

  • DF-G3 Long IR Beam Water Detector Dual Display Fiber Amplifier
  • Range: Depends on fiber
  • Input 10-30 V dc
  • Outputs: 1 PNP
  • Connection: 4-conductor 2 m PVC Cable
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 100 to 180
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 60 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Number of Pins: 4
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: .5 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Long Infrared (Water Detection)
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1
  • Cord/Cable Length: 2 m
  • Fiber Termination Type: T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Feature: Health/Marginal Signal Output: Yes
  • Indicator Type: Dual Digital Displays

$ 344.00 344.0 USD $ 344.00

$ 344.00

Not Available For Sale
